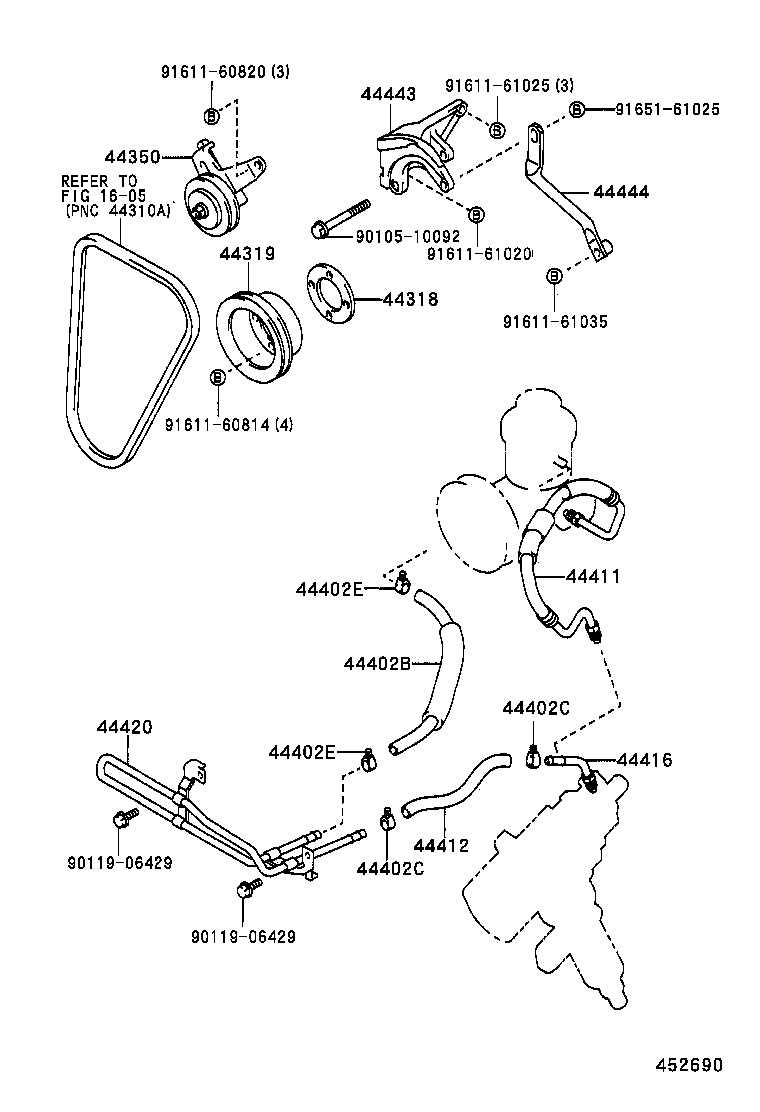

YN85L-TRMRS (1988)
Toyota Hilux 2wd
(9108-9708)YN8#,92..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-28012 |
YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44318-28012 |
YN85..RHD..TW1;YN81,85,86..ARL,V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU |
1 | ||
| 44318-28012 |
YN81,85,86..ARL,V;YN85..5F..GEN..CBU |
1 | ||
| 44318-28012 |
YN90;YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-28013 |
YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44319-35030 |
LN81,85,86..LHD |
1 | ||
| 44319-28013 |
YN81,85,86..ARL,V;YN85..5F..GEN..CBU |
1 | ||
| 44319-28013 |
YN90;YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44319-28013 |
YN85..RHD..TW1;YN81,85,86..ARL,V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-28011 |
YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44350-35010 |
RN90;RN85..V;RN85..RHD;RN85..EFI;LN81,85,86,RN125,80..LHD |
1 | ||
| 44350-28011 |
YN85..RHD..TW1;YN81,85,86..ARL,V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU |
1 | ||
| 44350-35010 |
RN90;RN85..V;RN85..RHD;RN85..T1..EFI;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 44350-28011 |
YN81,85,86..ARL,V;YN85..5F..GEN..CBU |
1 | ||
| 44350-28011 |
YN90;YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44402B - HOSE, POWER STEERING OIL COOLER OUTLET | ||||
| 90447-18034 |
YN85..5F..GEN..CBU |
1 | ||
| 90447-18034 |
YN81,86..V;YN85..5F..GEN..CBU |
1 | ||
| 90447-18034 |
YN81,86..V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU |
1 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90467-16008 |
RN8#,90..V;RN85..T1..EFI;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN |
2 | ||
| 90467-16008 |
RN85..EFI;RN8#,90..V;YN85..5F..GEN..CBU |
2 | ||
| 90467-16008 |
RN85..T1..EFI;RN80,90,YN81,86..V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5) |
2 | ||
| 90460-01001 |
RN85..EFI;RN125,8#,90..V;YN85..5F..GEN..CBU |
2 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90467-16008 |
RN8#,90..V;RN85..T1..EFI;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN |
2 | ||
| 90467-16008 |
RN85..EFI;RN8#,90..V;YN85..5F..GEN..CBU |
2 | ||
| 90467-16008 |
RN85..T1..EFI;RN80,90,YN81,86..V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5) |
2 | ||
| 90460-01001 |
RN85..EFI;RN125,8#,90..V;YN85..5F..GEN..CBU |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90467-16008 |
RN85..EFI;RN8#,90..V;YN85..5F..GEN..CBU |
2 | ||
| 90460-01001 |
RN85..EFI;RN125,8#,90..V;YN85..5F..GEN..CBU |
2 | ||
| 90467-16008 |
RN8#,90..V;RN85..T1..EFI;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN |
2 | ||
| 90467-16008 |
RN85..T1..EFI;RN80,90,YN81,86..V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5) |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90467-16008 |
RN85..EFI;RN8#,90..V;YN85..5F..GEN..CBU |
2 | ||
| 90460-01001 |
RN85..EFI;RN125,8#,90..V;YN85..5F..GEN..CBU |
2 | ||
| 90467-16008 |
RN8#,90..V;RN85..T1..EFI;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN |
2 | ||
| 90467-16008 |
RN85..T1..EFI;RN80,90,YN81,86..V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5) |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-35310 |
YN85..5F..GEN..CBU |
1 | ||
| 44411-35261 |
LN81,85,86..LHD |
1 | ||
| 44411-35310 |
YN81,86..V;YN85..5F..GEN..CBU |
1 | ||
| 44411-35310 |
YN81,86..V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 90445-18079 |
LN85..RHD..TH;YN85..5F..GEN..CBU;LN86,90,RN85,90..RHD |
1 | ||
| 90445-18147 |
YN85..5F..GEN..CBU |
1 | ||
| 90445-18105 |
LN81,85,86..LHD |
1 | ||
| 90445-18147 |
YN81,86..V;YN85..5F..GEN..CBU |
1 | ||
| 90445-18147 |
YN81,86..V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35070 |
RN85..V;RN85..T1..EFI;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80,90..LHD |
1 | ||
| 44416-35070 |
RN85..V;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80,90..LHD |
1 | ||
| 44416-35070 |
LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,90,YN81,86..LHD..(TH,V) |
1 | ||
| 44416-35070 |
YN85..5F..CBU;LN85..LHD..TW1;LN81,85,86,RN8#..LHD..(TH,V) |
1 | ||
| 44420 - COOLER ASSY, OIL | ||||
| 44420-35040 |
RN85..T1..EFI;RN80,90,YN81,86..V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5) |
1 | ||
| 44420-35040 |
RN8#,90..V;RN85..T1..EFI;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN |
1 | ||
| 44420-35040 |
RN85..EFI;RN8#,90..V;YN85..5F..GEN..CBU |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-28011 |
YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44443-28011 |
YN85..ARL;YN85..RHD..TW1;YN85..LHD..T1..4F;YN85..5F..GEN..CBU |
1 | ||
| 44443-35011 |
LN81,85,86..LHD |
1 | ||
| 44443-28011 |
YN90;YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-27010 |
YN85..RHD..TW1;YN81,85,86..ARL,V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU |
1 | ||
| 44444-27010 |
YN81,85,86..ARL,V;YN85..5F..GEN..CBU |
1 | ||
| 44444-27010 |
YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44444-27010 |
YN90;YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| Common parts | ||||
| 90105-10092 | ||||
| 90119-06429 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91611-61035 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(8808-0106)LN81,85,86..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-28012 |
YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44318-28012 |
YN85..RHD..TW1;YN81,85,86..ARL,V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU |
1 | ||
| 44318-28012 |
YN81,85,86..ARL,V;YN85..5F..GEN..CBU |
1 | ||
| 44318-28012 |
YN90;YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-28013 |
YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44319-35030 |
LN81,85,86..LHD |
1 | ||
| 44319-28013 |
YN81,85,86..ARL,V;YN85..5F..GEN..CBU |
1 | ||
| 44319-28013 |
YN90;YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44319-28013 |
YN85..RHD..TW1;YN81,85,86..ARL,V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-35110 |
LN81,85,86..LHD |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-28011 |
YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44350-35010 |
RN90;RN85..V;RN85..RHD;RN85..EFI;LN81,85,86,RN125,80..LHD |
1 | ||
| 44350-28011 |
YN85..RHD..TW1;YN81,85,86..ARL,V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU |
1 | ||
| 44350-35010 |
RN90;RN85..V;RN85..RHD;RN85..T1..EFI;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 44350-28011 |
YN81,85,86..ARL,V;YN85..5F..GEN..CBU |
1 | ||
| 44350-28011 |
YN90;YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-35310 |
YN85..5F..GEN..CBU |
1 | ||
| 44411-35261 |
LN81,85,86..LHD |
1 | ||
| 44411-35310 |
YN81,86..V;YN85..5F..GEN..CBU |
1 | ||
| 44411-35310 |
YN81,86..V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 90445-18079 |
LN85..RHD..TH;YN85..5F..GEN..CBU;LN86,90,RN85,90..RHD |
1 | ||
| 90445-18147 |
YN85..5F..GEN..CBU |
1 | ||
| 90445-18105 |
LN81,85,86..LHD |
1 | ||
| 90445-18147 |
YN81,86..V;YN85..5F..GEN..CBU |
1 | ||
| 90445-18147 |
YN81,86..V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU |
1 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 90447-18040 |
LN81,85,86..LHD |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35070 |
RN85..V;RN85..T1..EFI;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80,90..LHD |
1 | ||
| 44416-35070 |
RN85..V;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80,90..LHD |
1 | ||
| 44416-35070 |
LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,90,YN81,86..LHD..(TH,V) |
1 | ||
| 44416-35070 |
YN85..5F..CBU;LN85..LHD..TW1;LN81,85,86,RN8#..LHD..(TH,V) |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-35040 |
LN81,85,86..LHD |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-28011 |
YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| 44443-28011 |
YN85..ARL;YN85..RHD..TW1;YN85..LHD..T1..4F;YN85..5F..GEN..CBU |
1 | ||
| 44443-35011 |
LN81,85,86..LHD |
1 | ||
| 44443-28011 |
YN90;YN85..ARL;YN85..5F..GEN..CBU |
1 | ||
| Common parts | ||||
| 90101-10062 | ||||
| 90101-10089 | ||||
| 90101-10462 | ||||
| 90105-10042 | ||||
| 90119-08667 | ||||
| 90201-10287 | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 1605 | ||||
