YN85L-PRKRS3 (1988)
Toyota Hilux 2wd

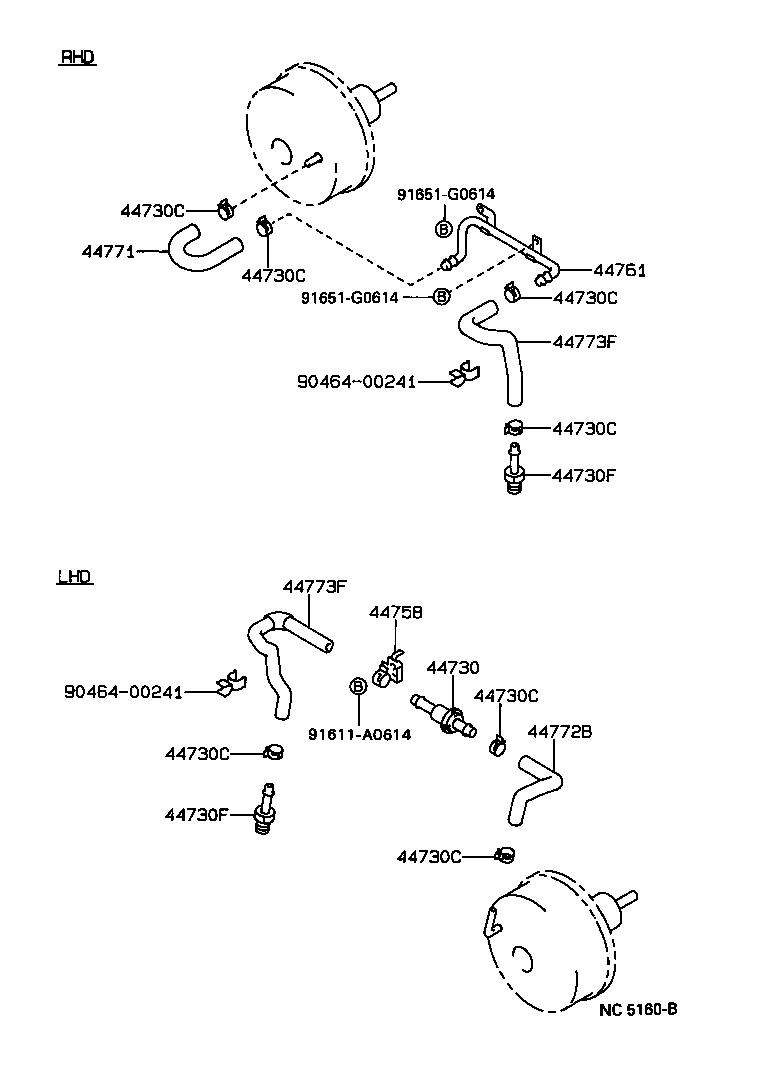

ILLUST NO. 2 OF 2(8808- )LN200,8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-35060 |
LN81,85,86,90..LHD |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-35060 |
LN81,85,86,90..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44730-22090 |
YN80,85..LHD |
1 | ||
| 44730-10010 |
RN125,8#,90,YN81,86,87,92..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44730-22090 |
YN80,85..LHD |
1 | ||
| 44730-10010 |
RN125,8#,90,YN81,86,87,92..LHD |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-35080 |
LN81,85,86,90..LHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35100 |
LN81,85,86,90..LHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35100 |
LN81,85,86,90..LHD |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35420 |
LN81,85,86,90..LHD |
1 | ||
| 44773-35360 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44773-35370 |
YN80,85..LHD |
1 | ||
| 44773-35390 |
RN125,8#,90..LHD..CBR |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35420 |
LN81,85,86,90..LHD |
1 | ||
| 44773-35360 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44773-35370 |
YN80,85..LHD |
1 | ||
| 44773-35390 |
RN125,8#,90..LHD..CBR |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 95441-09300 |
LN81,85,86,90..LHD |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90949-01470 | ||||
| 91635-60616 | ||||
| 91651-G0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8808- )LN8#,9#,RN8#,90,YN8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-35810 |
YN80,85..LHD W(STANDARD HEATER) |
1 | ||
| 04443-35800 |
YN80,85..LHD |
1 | ||
| 04443-35730 |
LN90..GEN;LN81,85,86..ARL,V |
1 | ||
| 04443-35720 |
YN80,85..LHD W(FR DISC BRAKE) |
1 | ||
| 04443-35730 |
LN80,85..GEN W(FR DISC BRAKE) |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-10080 |
YN85..GEN;LN85,YN80..LHD |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
YN85..GEN;LN85,YN80..LHD |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-3D090 |
YN80,85..LHD W(FR DISC BRAKE) |
1 | ||
| 44610-3D200 |
YN80,85..LHD |
1 | ||
| 44610-3D210 |
YN80,85..LHD W(STANDARD HEATER) |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
YN85..GEN;LN85,YN80..LHD |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32020 |
YN85..GEN;LN85,YN80..LHD |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-10080 |
YN85..GEN;LN85,YN80..LHD |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-30480 |
YN85..GEN;LN85,YN80..LHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
YN80,85..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44730-22090 |
YN80,85..LHD |
1 | ||
| 44730-10010 |
RN125,8#,90,YN81,86,87,92..LHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35080 |
RN125,8#,90,YN81,86,87,92..LHD |
1 | ||
| 44758-35080 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44758-28020 |
YN80,85..LHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
YN85..GEN;LN85..LHD..TH;LN8#,90,RN125,YN80..ARL,GEN,V |
1 | ||
| 44785-35020 |
LN85..RHD..TH;RN85,YN86,87,92;LN80,9#,RN80,90,YN80,81,85,90..ARL,TH,V |
2 | ||
| 44785-35020 |
YN80,85..GEN W(FR DISC BRAKE) |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8808- )LN200,8#,9#,RN8#,90,RZN200,YN8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-35810 |
YN80,85..LHD W(STANDARD HEATER) |
1 | ||
| 04443-35800 |
YN80,85..LHD |
1 | ||
| 04443-35730 |
LN90..GEN;LN81,85,86..ARL,V |
1 | ||
| 04443-35720 |
YN80,85..LHD W(FR DISC BRAKE) |
1 | ||
| 04443-35730 |
LN80,85..GEN W(FR DISC BRAKE) |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
YN80,85,87;LN8#,90,RN8#,90,YN81,86,92..ARL,GEN,V |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-3D090 |
YN80,85..LHD W(FR DISC BRAKE) |
1 | ||
| 44610-3D200 |
YN80,85..LHD |
1 | ||
| 44610-3D210 |
YN80,85..LHD W(STANDARD HEATER) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
YN80,85,87;LN8#,90,RN8#,90,YN81,86,92..ARL,GEN,V |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
YN80,85,87;LN8#,90,RN8#,90,YN81,86,92..ARL,GEN,V |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-28120 |
YN80,85,87;LN8#,90,RN8#,90,YN81,86,92..ARL,GEN,V |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32030 |
LN85..ARL;LN85..LHD;YN80,85,87;LN81,86,90,RN8#,90,YN81,86,92..ARL,GEN,V |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
YN80,85..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44730-22090 |
YN80,85..LHD |
1 | ||
| 44730-10010 |
RN125,8#,90,YN81,86,87,92..LHD |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-35110 |
LN85..RHD..TH;RN85,YN80,85,86,87,92;LN80,9#,RN80,90,YN81,90..ARL,TH,V |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
LN85..RHD..TH;RN85,YN80,85,86,87,92;LN80,9#,RN80,90,YN81,90..ARL,TH,V |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
LN85..RHD..TH;RN85,YN80,85,86,87,92;LN80,9#,RN80,90,YN81,90..ARL,TH,V |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35080 |
RN125,8#,90,YN81,86,87,92..LHD |
1 | ||
| 44758-35080 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44758-28020 |
YN80,85..LHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
YN85..GEN;LN85..LHD..TH;LN8#,90,RN125,YN80..ARL,GEN,V |
1 | ||
| 44785-35020 |
LN85..RHD..TH;RN85,YN86,87,92;LN80,9#,RN80,90,YN80,81,85,90..ARL,TH,V |
2 | ||
| 44785-35020 |
YN80,85..GEN W(FR DISC BRAKE) |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
YN85..GEN;LN85..LHD..TH;LN8#,90,RN125,YN80..ARL,GEN,V |
1 | ||
| 44785-35020 |
LN85..RHD..TH;RN85,YN86,87,92;LN80,9#,RN80,90,YN80,81,85,90..ARL,TH,V |
2 | ||
| 44785-35020 |
YN80,85..GEN W(FR DISC BRAKE) |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 2 OF 2(8808- )YN8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44730-22090 |
YN80,85..LHD |
1 | ||
| 44730-10010 |
RN125,8#,90,YN81,86,87,92..LHD |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51039 |
RN125,8#,90..CBR |
1 | ||
| 90404-51031 |
YN8#,9# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51039 |
RN125,8#,90..CBR |
1 | ||
| 90404-51031 |
YN8#,9# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35080 |
RN125,8#,90,YN81,86,87,92..LHD |
1 | ||
| 44758-35080 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44758-28020 |
YN80,85..LHD |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-35080 |
LN81,85,86,90..LHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35100 |
LN81,85,86,90..LHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-35190 |
YN80,85..LHD W(FR DISC BRAKE) |
1 | ||
| 44772-35200 |
YN80,85..LHD W(STANDARD HEATER) |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35420 |
LN81,85,86,90..LHD |
1 | ||
| 44773-35360 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44773-35370 |
YN80,85..LHD |
1 | ||
| 44773-35390 |
RN125,8#,90..LHD..CBR |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35420 |
LN81,85,86,90..LHD |
1 | ||
| 44773-35360 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44773-35370 |
YN80,85..LHD |
1 | ||
| 44773-35390 |
RN125,8#,90..LHD..CBR |
1 | ||
| Common parts | ||||
| 90464-00241 | ||||
| 91611-A0614 | ||||
| 91651-G0614 | ||||
ILLUST NO. 2 OF 2(8808- )RN125,8#,90,RZN200
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44730-22090 |
YN80,85..LHD |
1 | ||
| 44730-10010 |
RN125,8#,90,YN81,86,87,92..LHD |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN85,90..RHD;YN80,85..LHD |
2 | ||
| 90467-16002 |
RN125,8#,90,YN81,86,87,92..LHD |
3 | ||
| 90467-16002 |
LN81,85,86,90..LHD |
6 | ||
| 90467-16002 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
3 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51039 |
RN125,8#,90..CBR |
1 | ||
| 90404-51031 |
YN8#,9# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51039 |
RN125,8#,90..CBR |
1 | ||
| 90404-51031 |
YN8#,9# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35080 |
RN125,8#,90,YN81,86,87,92..LHD |
1 | ||
| 44758-35080 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44758-28020 |
YN80,85..LHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-35190 |
YN80,85..LHD W(FR DISC BRAKE) |
1 | ||
| 44772-35200 |
YN80,85..LHD W(STANDARD HEATER) |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35420 |
LN81,85,86,90..LHD |
1 | ||
| 44773-35360 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44773-35370 |
YN80,85..LHD |
1 | ||
| 44773-35390 |
RN125,8#,90..LHD..CBR |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35420 |
LN81,85,86,90..LHD |
1 | ||
| 44773-35360 |
YN80,85..LHD W(FR DISC BRAKE OR STANDARD HEATER) |
1 | ||
| 44773-35370 |
YN80,85..LHD |
1 | ||
| 44773-35390 |
RN125,8#,90..LHD..CBR |
1 | ||
| Common parts | ||||
| 90461-08110 | ||||
| 90464-00547 | ||||
| 91611-A0614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
