YN80R-TRMRST (1993)

Toyota Hilux 2wd

Production Mar 1993 - Apr 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )2Y,3Y,4Y

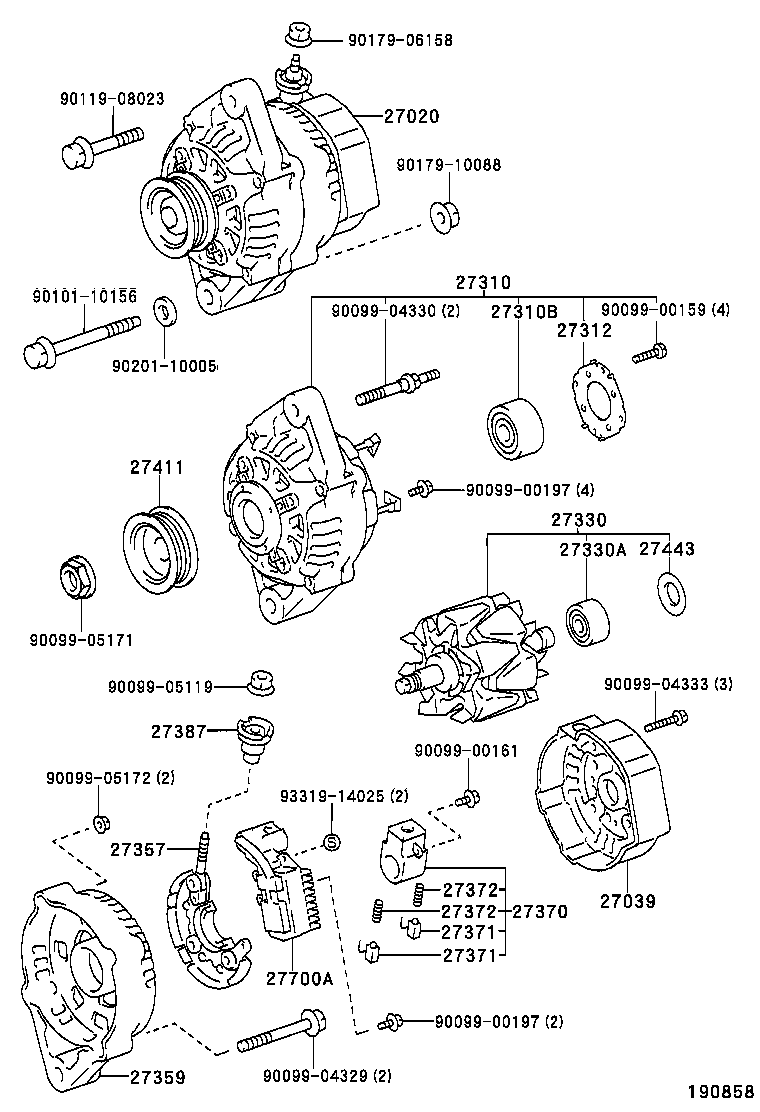

Click highlighted areas on diagram

12V 45A

diagram 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27371 27372 27372 27387 27411 27443 27700A 9009900159 9009900161 9009900197 9009900197 9009904329 9009904330 9009904333 9009905119 9009905171 9009905172 9010110156 9011908023 9017906158 9017910088 9020110005 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-72230

2Y,3Y,4Y..YN8#,9#

12V 40A

 1
27020-72200

2Y,3Y,4Y..YN8#,92

12V 40A

 1
27020-72230

2Y..YN80,85,90..TH

12V 40A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72030

2Y,3Y,4Y..YN8#,9#

 1
27310-72030

2Y..YN80,85,90..TH

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

2Y,3Y,4Y..YN8#,9#

 1
90099-10142

2Y..YN80,85,90..TH

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-26050

22R,2Y,3Y,4Y..RN8#,90,YN8#,92

 1
27330-26050

2Y..YN80,85,90..TH

 1
27330-26050

22R,2Y,3Y,4Y..RN8#,90,YN8#,9#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

2Y..YN80,85,90..TH

 1
90099-10116

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72030

2Y..YN80,85,90..TH

 1
27359-72030

2Y,3Y,4Y..YN8#,9#

 1
27371 - BRUSH, ALTERNATOR
27371-31011

2Y..YN80,85,90..TH

 2
27371-31011

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

 2
27371 - BRUSH, ALTERNATOR
27371-31011

2Y..YN80,85,90..TH

 2
27371-31011

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

 2
27372-31011

2Y..YN80,85,90..TH

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

 2
27372-31011

2Y..YN80,85,90..TH

 2
27387 - INSULATOR, TERMINAL
27387-45110

22R,2Y,3Y,4Y..RN125,YN8#,92

NO.1

 1
27387-45022

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 1
27387-34022

22R,2Y,3Y,4Y..RN8#,90,YN8#,9#

NO.2

 1
27387-34022

2Y..YN80,85,90..TH

NO.2

 1
27387-45110

2Y..YN80,85,90..TH

NO.1

 1
27411 - PULLEY, ALTERNATOR
27411-72040

2Y..YN80,85,90..TH

 1
27411-72040

2Y,3Y,4Y..YN8#,9#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-72030

22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,8#,90,YN8#,92

 1
Common parts
90099-00159
90099-00161
90099-00197
90099-04329
90099-04330
90099-04333
90099-05119
90099-05171
90099-05172
90101-10156
90119-08023
90179-06158
90179-10088
90201-10005
93319-14025
