RZN200L-TRMDK (2001)
Toyota Hilux 2wd
Production
Jun 2001
-
Dec 2004
Engine
3RZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

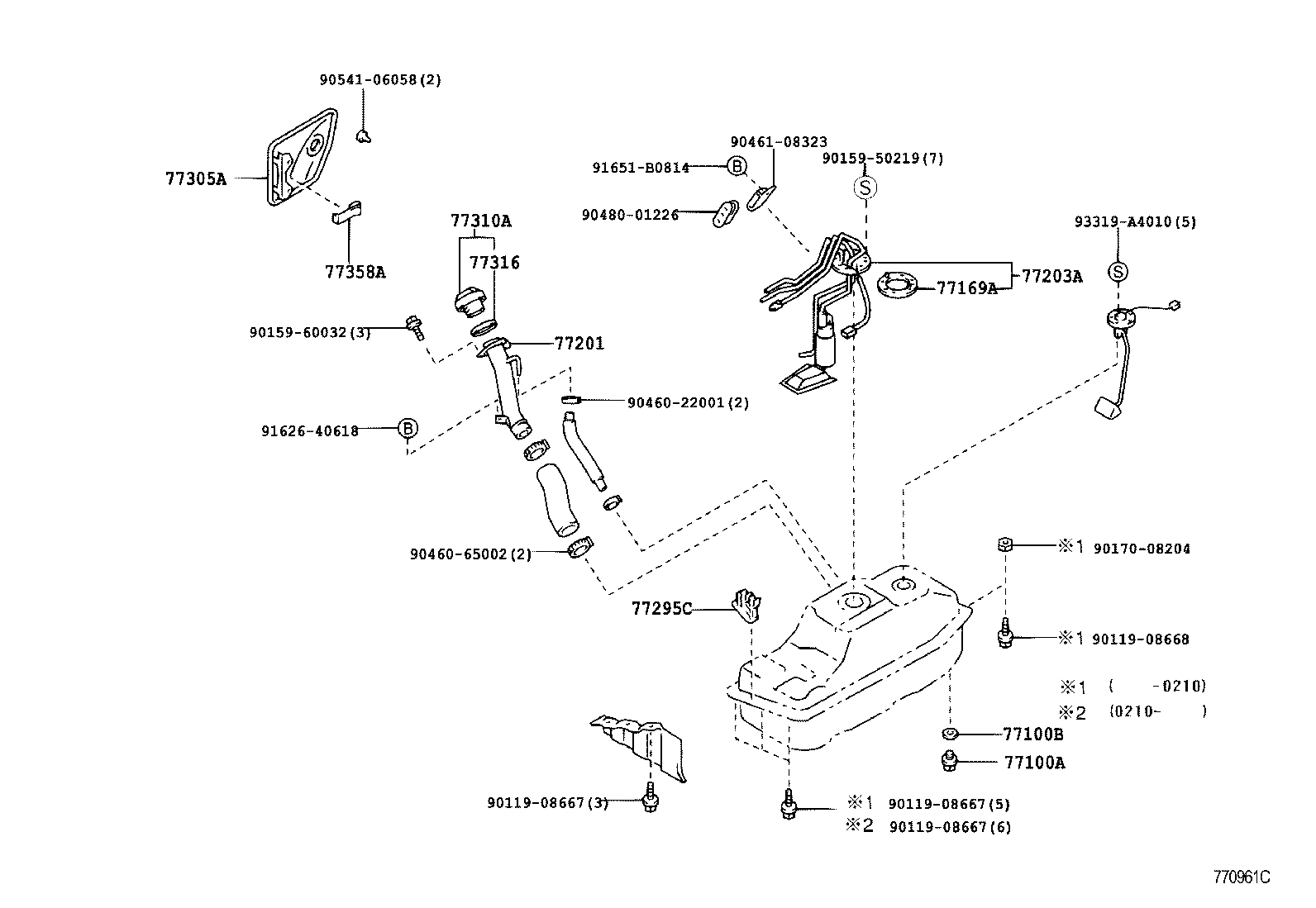

ILLUST NO. 1 OF 2(0106- )RZN200..T1
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN200,RZN200 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LN200,RZN200 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
RZN200 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35460 |
RZN200..T1 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35790 |
RZN200..T1 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35280 |
LN200,RZN200..T1 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-89108 |
LN200,RZN200..T1 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
RZN200..T1 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
LN200,RZN200..T1 |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-89101 |
LN200,RZN200..T1 |
1 | ||
| Common parts | ||||
| 90119-08667 | ||||
| 90119-08668 | ||||
| 90159-50219 | ||||
| 90159-60032 | ||||
| 90170-08204 | ||||
| 90460-22001 | ||||
| 90460-65002 | ||||
| 90461-08323 | ||||
| 90480-01226 | ||||
| 90541-06058 | ||||
| 91626-40618 | ||||
| 91651-B0814 | ||||
| 93319-A4010 | ||||
ILLUST NO. 2 OF 2(0106- )RZN200
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-06030 |
RZN200 *H,L=260 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-35400 |
RZN200..T1 L=664 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-35400 |
RZN200..T1 L=664 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77259-35410 |
RZN200..T1 L=744 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77259-35410 |
RZN200..T1 L=744 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
RZN200 *H,L=180 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77209-35380 |
RZN200..T1 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77209-35380 |
RZN200..T1 |
1 | ||
| 77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER | ||||
| 77705-35090 |
RZN200 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-35360 |
RZN200 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-35040 |
RZN200 |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-35020 |
RZN200 |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-35050 |
RZN200 |
1 | ||
| Common parts | ||||
| 47372-35060 | ||||
| 77285-35470 | ||||
| 77285-35480 | ||||
| 77285-35500 | ||||
| 77285-35510 | ||||
| 77285-35520 | ||||
| 77285-35530 | ||||
| 90179-06161 | ||||
| 90464-00460 | ||||
| 91626-60616 | ||||
| 91651-B0814 | ||||
| 95326-07018 | ||||
| 95326-07026 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
