Toyota Hilux 2wd RZN200 BRAKE TUBE & CLAMP

RZN200L-TRMDK (2001)

Toyota Hilux 2wd

Production Jun 2001 - Dec 2004

Engine 3RZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

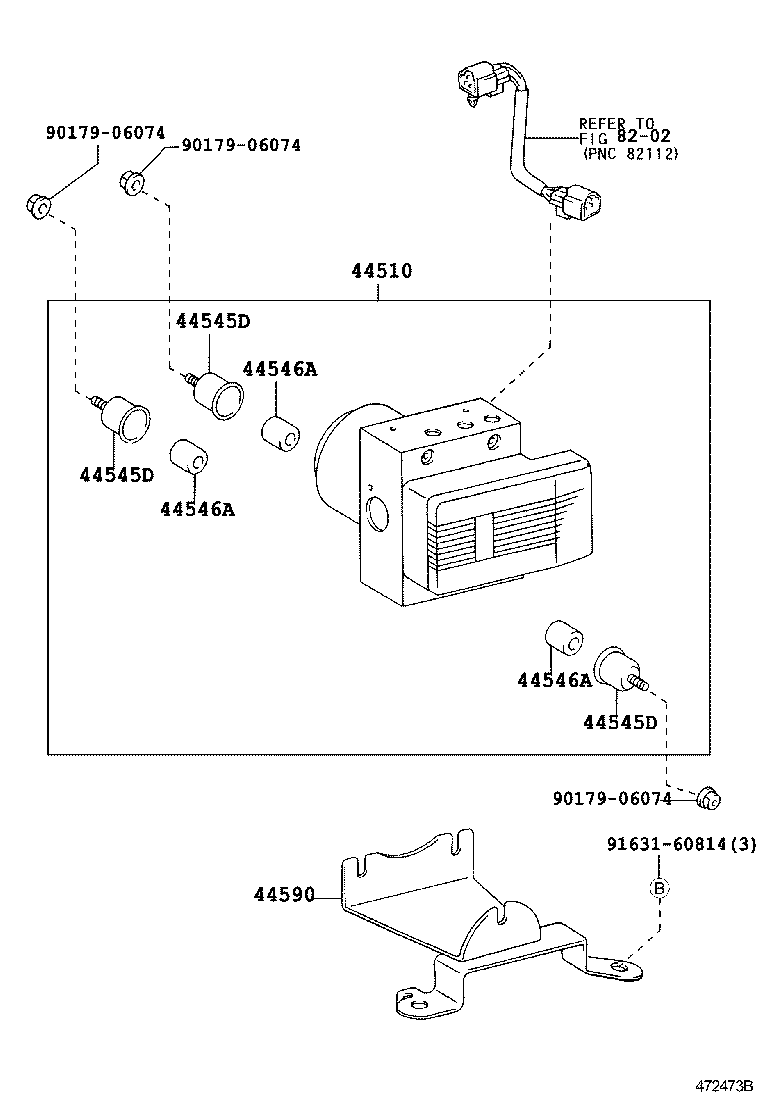

ILLUST NO. 3 OF 3(0106- )SRV ; (0106- )RZN200

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-35020	RZN200;LN200..SRV	06/2001 - 12/2999	1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-35080	RZN200;LN200..SRV	06/2001 - 12/2999	3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-35080	RZN200;LN200..SRV	06/2001 - 12/2999	3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-35080	RZN200;LN200..SRV	06/2001 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-35090	RZN200;LN200..SRV	06/2001 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-35090	RZN200;LN200..SRV	06/2001 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-35090	RZN200;LN200..SRV	06/2001 - 12/2999	3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-35050	RZN200;LN200..SRV	06/2001 - 12/2999	1
Common parts
90179-06074
91631-60814
Linked diagrams
8202

ILLUST NO. 1 OF 3(0106- )RZN200

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-35500	RZN200 W(ABS)	06/2001 - 12/2999	1
47311-35440	RZN200	06/2001 - 12/2999	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90904-13021	RZN200	06/2001 - 12/2999	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12027	RZN200 W(ABS)	06/2001 - 12/2999	1
90413-10233	LN200,RZN200..DLX,STD	06/2001 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02957	LN200,RZN200	06/2001 - 12/2999	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02957	LN200,RZN200	06/2001 - 12/2999	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02958	LN200,RZN200	06/2001 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90904-13036	LN200,RZN200	06/2001 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-35190	LN200,RZN200	08/2001 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35250	LN200,RZN200	08/2001 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-35290	LN200,RZN200	08/2001 - 12/2999	1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-35170	LN200,RZN200	08/2001 - 12/2999	1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-35170	LN200,RZN200	08/2001 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35310	RZN200 W(ABS)	06/2001 - 12/2999	1
47351-35300	LN200,RZN200..DLX,STD	06/2001 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35350	LN200,RZN200..DLX,STD	06/2001 - 12/2999	1
47352-35360	RZN200 W(ABS)	06/2001 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35080	LN200,RZN200	06/2001 - 12/2999	2
47371-35230	RZN200;LN200..SRV W(ABS)	06/2001 - 12/2999	1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-35130	LN200,RZN200	06/2001 - 12/2999	2
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080	LN200,RZN200	06/2001 - 12/2999	1
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080	LN200,RZN200	06/2001 - 12/2999	1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35030	LN200,RZN200	06/2001 - 12/2999	1
47373B - CLAMP, BRAKE TUBE, NO.3
47372-35100	LN200,RZN200	06/2001 - 12/2999	1
47374B - CLAMP, BRAKE TUBE, NO.4
47373-35050	LN200,RZN200	06/2001 - 12/2999	1
47383 - BRACKET, CONNECTOR
47383-35010	LN200,RZN200	06/2001 - 12/2999	1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35160	RZN200	06/2001 - 12/2999	1
Common parts
90105-14043
90119-08744
90468-08035
90949-01457
90949-01459
90949-01477
91611-60614
91611-F0812
91641-H0820
96221-34905

ILLUST NO. 1 OF 3(0106- )RZN200

Click highlighted areas on diagram

W/O(ABS)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-35500	RZN200 W(ABS)	06/2001 - 12/2999	1
47311-35440	RZN200	06/2001 - 12/2999	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90904-13021	RZN200	06/2001 - 12/2999	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12027	RZN200 W(ABS)	06/2001 - 12/2999	1
90413-10233	LN200,RZN200..DLX,STD	06/2001 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02957	LN200,RZN200	06/2001 - 12/2999	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02957	LN200,RZN200	06/2001 - 12/2999	2
47315 - TUBE, FRONT BRAKE, NO.5
47315-35140	LN200,RZN200..DLX,STD	08/2001 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02958	LN200,RZN200	06/2001 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90904-13036	LN200,RZN200	06/2001 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-35450	LN200,RZN200..DLX,STD	08/2001 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-35190	LN200,RZN200	08/2001 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35250	LN200,RZN200	08/2001 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-35290	LN200,RZN200	08/2001 - 12/2999	1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-35170	LN200,RZN200	08/2001 - 12/2999	1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-35170	LN200,RZN200	08/2001 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35310	RZN200 W(ABS)	06/2001 - 12/2999	1
47351-35300	LN200,RZN200..DLX,STD	06/2001 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35350	LN200,RZN200..DLX,STD	06/2001 - 12/2999	1
47352-35360	RZN200 W(ABS)	06/2001 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35080	LN200,RZN200	06/2001 - 12/2999	2
47371-35230	RZN200;LN200..SRV W(ABS)	06/2001 - 12/2999	1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-35130	LN200,RZN200	06/2001 - 12/2999	2
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080	LN200,RZN200	06/2001 - 12/2999	1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35030	LN200,RZN200	06/2001 - 12/2999	1
47373B - CLAMP, BRAKE TUBE, NO.3
47372-35100	LN200,RZN200	06/2001 - 12/2999	1
47374B - CLAMP, BRAKE TUBE, NO.4
47373-35050	LN200,RZN200	06/2001 - 12/2999	1
47383 - BRACKET, CONNECTOR
47383-35010	LN200,RZN200	06/2001 - 12/2999	1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35160	RZN200	06/2001 - 12/2999	1
Common parts
90105-14043
90119-08744
90468-08035
90949-01457
90949-01459
90949-01477
91611-60614
91611-F0812
91641-H0820
96221-34905
