RZN200L-PRMDK (2001)

Toyota Hilux 2wd

Production Jun 2001 - Dec 2004
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

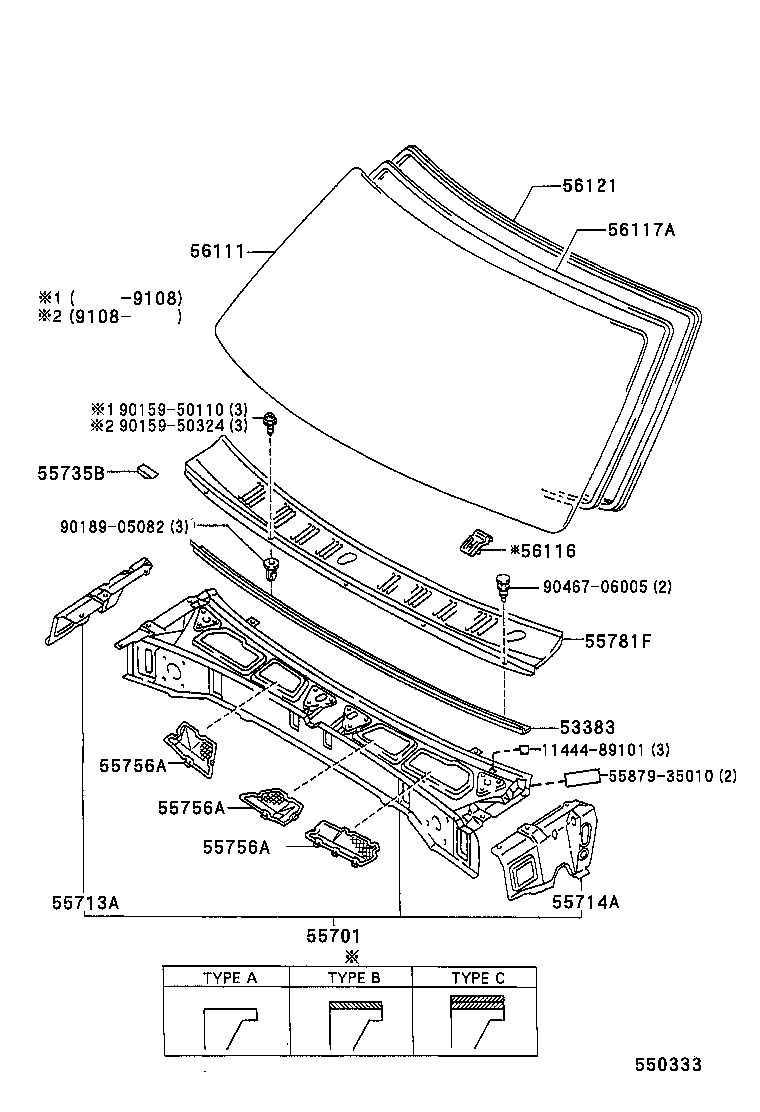

Click highlighted areas on diagram

diagram 1144489101 53383 55701 55713A 55714A 55735B 55756A 55756A 55756A 55781F 5587935010 56111 56116 56117A 56121 9015950110 9015950324 9018905082 9046706005
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-89106

LN200,RZN200

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-89105

LN200,RZN200

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-89106

LN200,RZN200

 1
55735B - SEAL, FRONT AIR SHUTTER
55735-89101

LN200,RZN200

 2
55756A - SCREEN, HEATER AIR DUCT
55756-89111

LN200,RZN200

RH

 1
55756-89108

LN200,RZN200

LH

 1
55756-89109

LN200,RZN200

CENTER

 1
55756A - SCREEN, HEATER AIR DUCT
55756-89111

LN200,RZN200

RH

 1
55756-89108

LN200,RZN200

LH

 1
55756-89109

LN200,RZN200

CENTER

 1
55756A - SCREEN, HEATER AIR DUCT
55756-89111

LN200,RZN200

RH

 1
55756-89108

LN200,RZN200

LH

 1
55756-89109

LN200,RZN200

CENTER

 1
55781F - LOUVER, COWL TOP VENTILATOR
55781-89103

LN200,RZN200

 1
Common parts
11444-89101
55879-35010
90159-50110
90159-50324
90189-05082
90467-06005
