RZN200L-PRMDK (2001)
Toyota Hilux 2wd
ILLUST NO. 2 OF 4(8808- )DLX,SR5,STD
INSTRUMENT PANEL & COMBINATION SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39625 |
LN200,RZN200..DLX,STD |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
LN200,RZN200 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
LN200,RZN200 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
LN200,RZN200 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-44010 |
LN200,RZN200..DLX,STD W(ABS) |
1 | ||
| 84140-35100 |
LN200,RZN200..DLX,STD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35470 |
LN200,RZN200..DLX |
1 | ||
| 84310-35730 |
LN200,RZN200..DLX,STD W(ABS) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
LN200,RZN200..DLX,STD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-89110 |
LN200,RZN200 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
LN200,RZN200 14V 0.84W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-35130 |
LN200,RZN200 |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-35370 |
LN200,RZN200..DLX |
1 | ||
| 84652-1A630 |
LN200,RZN200..DLX,STD W(ABS) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-35010 |
LN200,RZN200 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-35030 |
LN200,RZN200 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
LN200,RZN200 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
LN200,RZN200 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
LN200,RZN200 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
LN200,RZN200 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
LN200,RZN200 |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-16010 |
LN200,RZN200 14V 0.065A |
1 | ||
| Common parts | ||||
| 82711-2A540 | ||||
| 82711-35130 | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-15012 | ||||

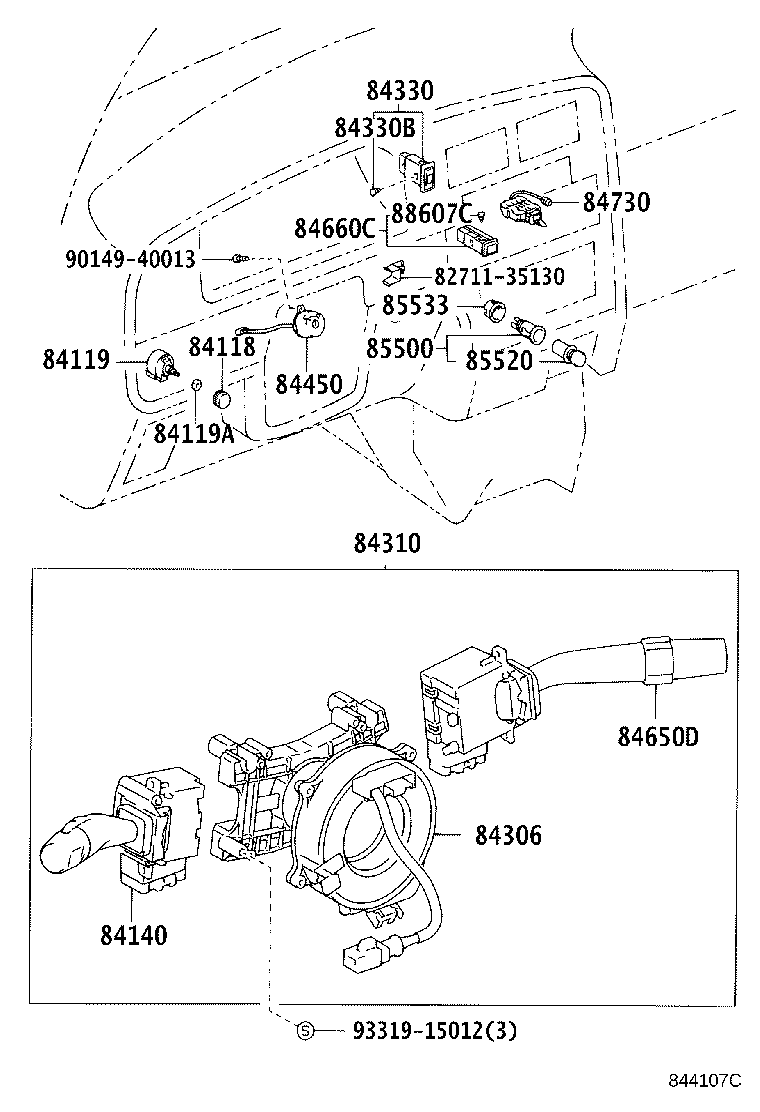

ILLUST NO. 2 OF 4(0106- )
INSTRUMENT PANEL & COMBINATION SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
LN200,RZN200 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
LN200,RZN200 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
LN200,RZN200 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-44010 |
LN200,RZN200..DLX,STD W(ABS) |
1 | ||
| 84140-35100 |
LN200,RZN200..DLX,STD |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-35020 |
LN200,RZN200 |
1 | ||
| 84306-12070 |
LN200,RZN200 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35470 |
LN200,RZN200..DLX |
1 | ||
| 84310-35730 |
LN200,RZN200..DLX,STD W(ABS) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-89110 |
LN200,RZN200 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
LN200,RZN200 14V 0.84W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-35130 |
LN200,RZN200 |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-35370 |
LN200,RZN200..DLX |
1 | ||
| 84652-1A630 |
LN200,RZN200..DLX,STD W(ABS) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-35010 |
LN200,RZN200 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-35030 |
LN200,RZN200 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
LN200,RZN200 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
LN200,RZN200 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
LN200,RZN200 |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-16010 |
LN200,RZN200 14V 0.065A |
1 | ||
| Common parts | ||||
| 82711-35130 | ||||
| 90149-40013 | ||||
| 93319-15012 | ||||

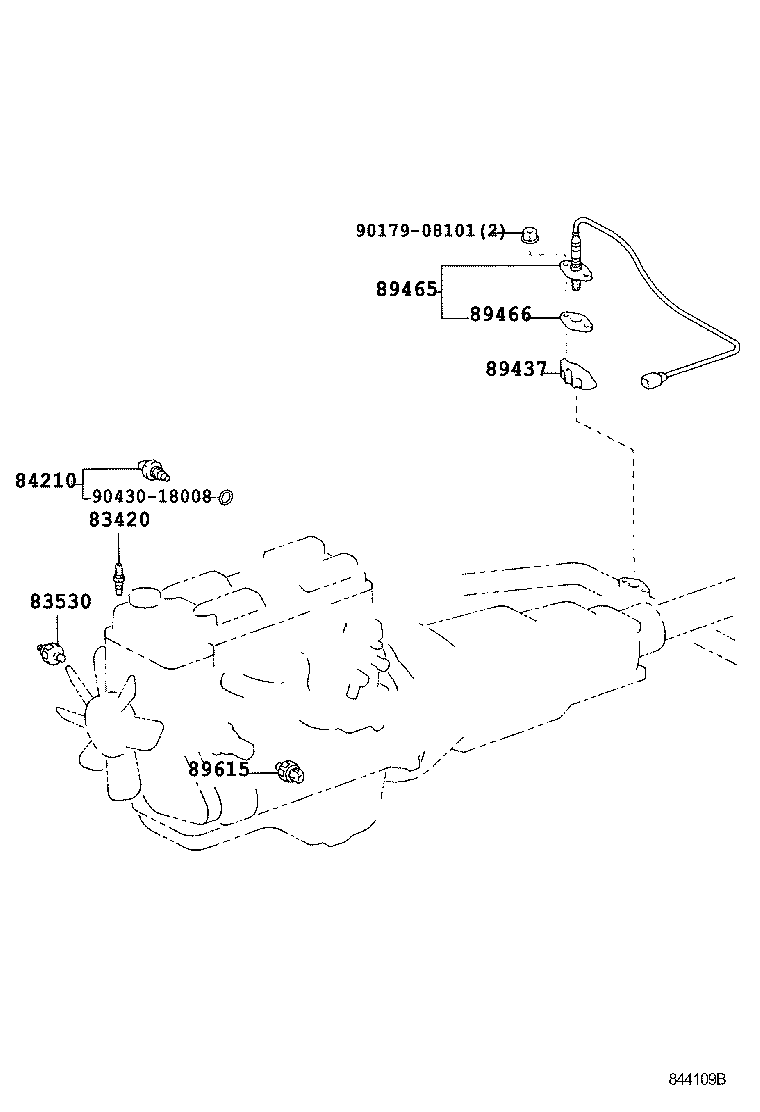

ILLUST NO. 1 OF 4(0106- )RZN200
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
RZN200 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
RZN200 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
LN200,RZN200 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-42010 |
RZN200 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-80050 |
RZN200 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
RZN200 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-50010 |
RZN200 |
1 | ||
| Common parts | ||||
| 90179-08101 | ||||
| 90430-18008 | ||||

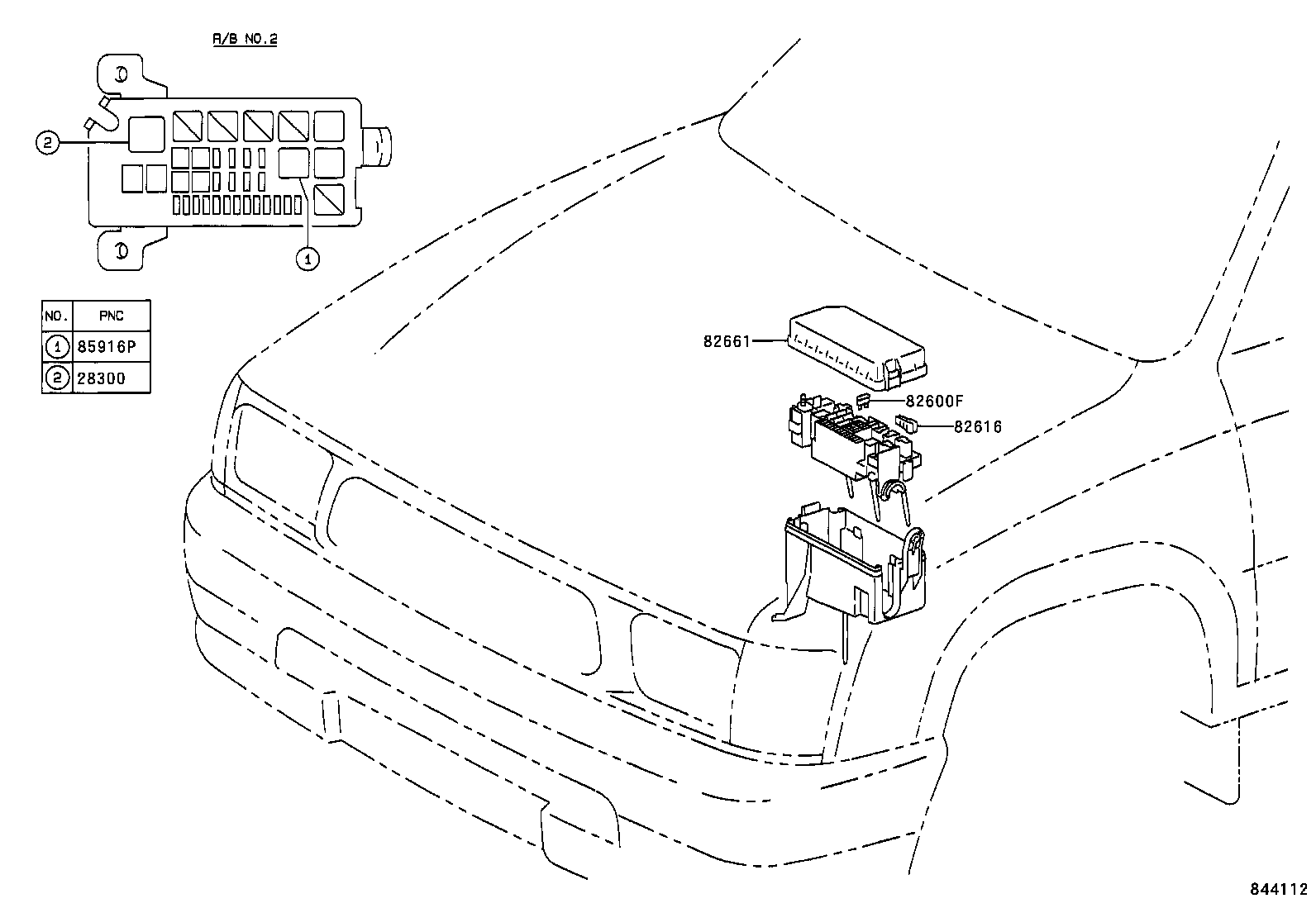

ILLUST NO. 5 OF 5(0106- )RZN200
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3RZFE..RZN200 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
RZN200 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
RZN200 10A,MINI FUSE,RED |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
RZN200 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-3D050 |
RZN200 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
LN200,RZN200 |
1 | ||

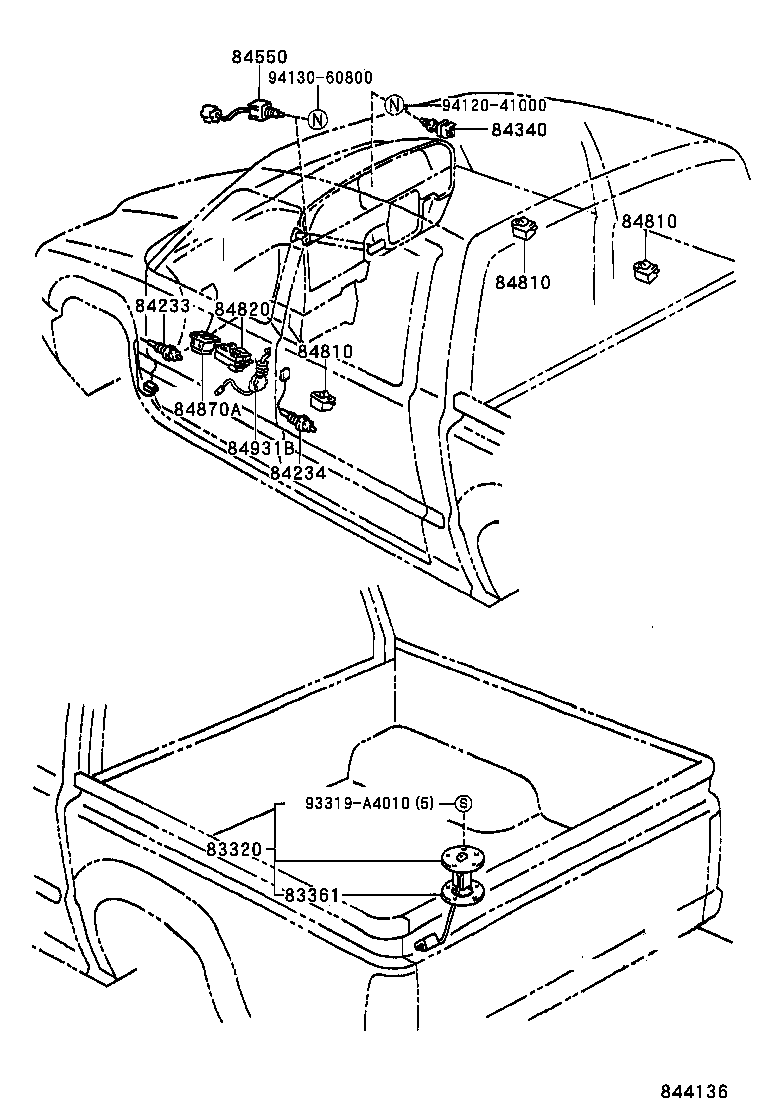

ILLUST NO. 4 OF 4(0106- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80175 |
RZN200..TW1 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LN200,RZN200 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
LN200,RZN200 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-12120 |
LN200,RZN200..TW1 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
LN200,RZN200 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-35010 |
LN200,RZN200 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
LN200..SRV;RZN200..TW1 |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
LN200..SRV;RZN200..TW1 |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
LN200..SRV;RZN200..TW1 |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-35010 |
LN200..SRV;RZN200..TW1 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-89101 |
RZN200;LN200..SRV |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-35060 |
LN200..SRV;RZN200..TW1 |
1 | ||
| Common parts | ||||
| 93319-A4010 | ||||
| 94120-41000 | ||||
| 94130-60800 | ||||

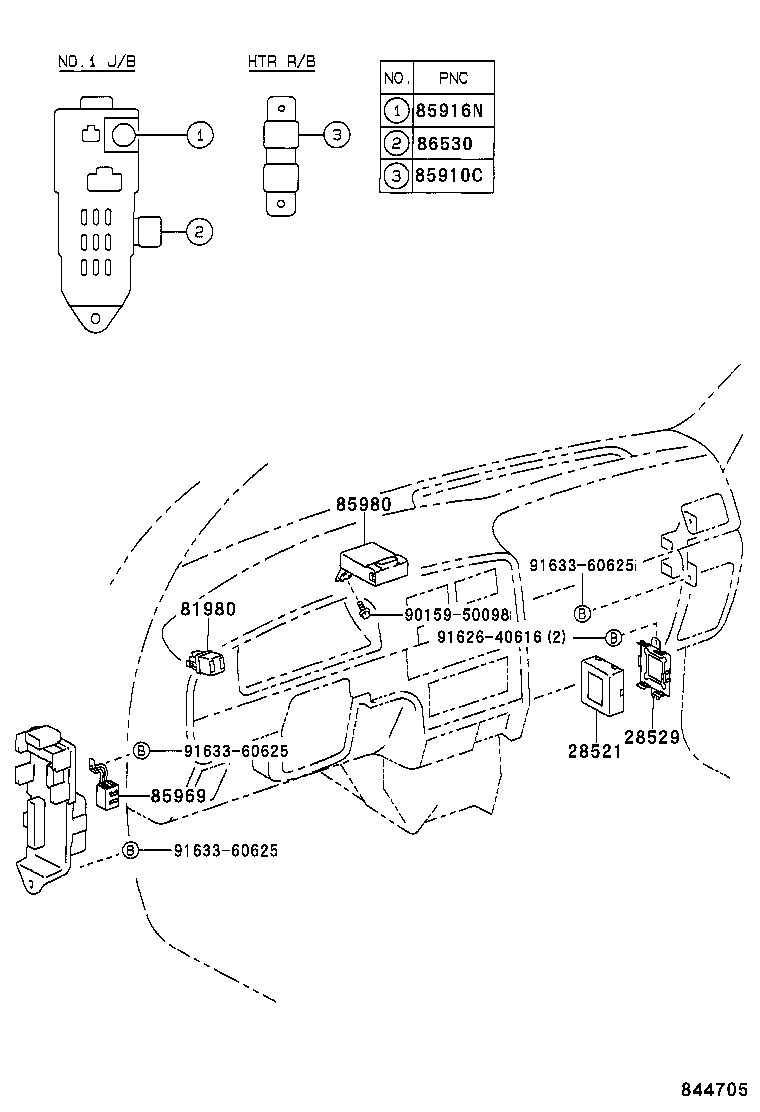

ILLUST NO. 3 OF 4(0106- )
INSTRUMENT PANEL & COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-32010 |
LN200,RZN200 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
LN200,RZN200 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-01003 |
LN200,RZN200 |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-35020 |
LN200,RZN200 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-35010 |
RZN200;LN200..SRV |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
LN200,RZN200 |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 91626-40616 | ||||
| 91633-60625 | ||||
