RZN200L-PRMDK (2001)

Toyota Hilux 2wd

Production Jun 2001 - Dec 2004
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )TW1

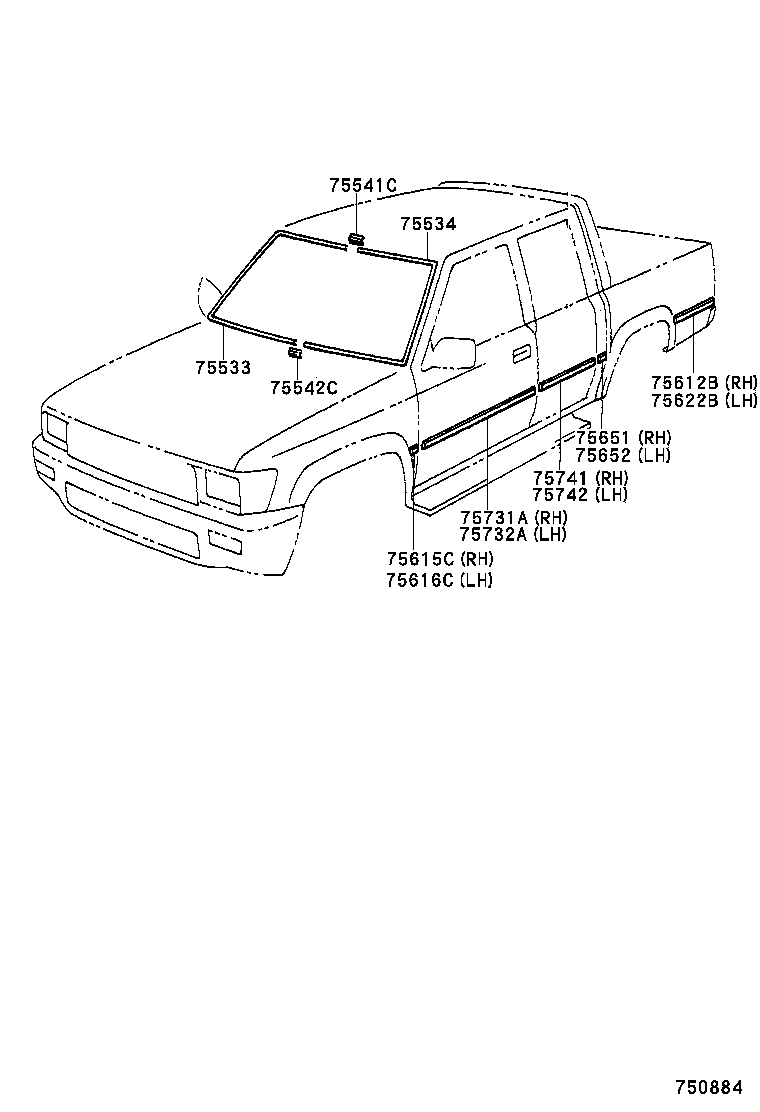

Click highlighted areas on diagram

diagram 75533 75534 75541C 75542C 75612B 75615C 75616C 75622B 75651 75652 75731A 75732A 75741 75742
Part # Description Qty Price
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-89108

RZN200;LN200..SRV

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-89106

RZN200;LN200..SRV

 1
75541C - COVER, WINDSHIELD MOULDING JOINT, UPPER RH
75541-89103

RZN200;LN200..SRV

 1
75542C - COVER, WINDSHIELD MOULDING JOINT, UPPER LH
75541-89103

RZN200;LN200..SRV

 1
75612B - MOULDING, SIDE PANEL, NO.2 RH
75612-89110

RZN200;LN200..SRV

 1
75615C - MOULDING, FRONT FENDER, REAR RH
75615-89109

RZN200;LN200..SRV

 1
75616C - MOULDING, FRONT FENDER, REAR LH
75616-89109

RZN200;LN200..SRV

 1
75622B - MOULDING, SIDE PANEL, NO.2 LH
75622-89109

RZN200;LN200..SRV

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-89117

LN200..SRV;RZN200..TW1

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-89111

LN200..SRV;RZN200..TW1

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-89108

LN200..SRV;RZN200..TW1

NO PAINT REQ.

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-89108

LN200..SRV;RZN200..TW1

NO PAINT REQ.

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-89107

LN200..SRV;RZN200..TW1

NO PAINT REQ.

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-89107

LN200..SRV;RZN200..TW1

NO PAINT REQ.

 1
