RZN200L-PRMDK (2001)
Toyota Hilux 2wd
Production
Jun 2001
-
Dec 2004
Engine
3RZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )TW1

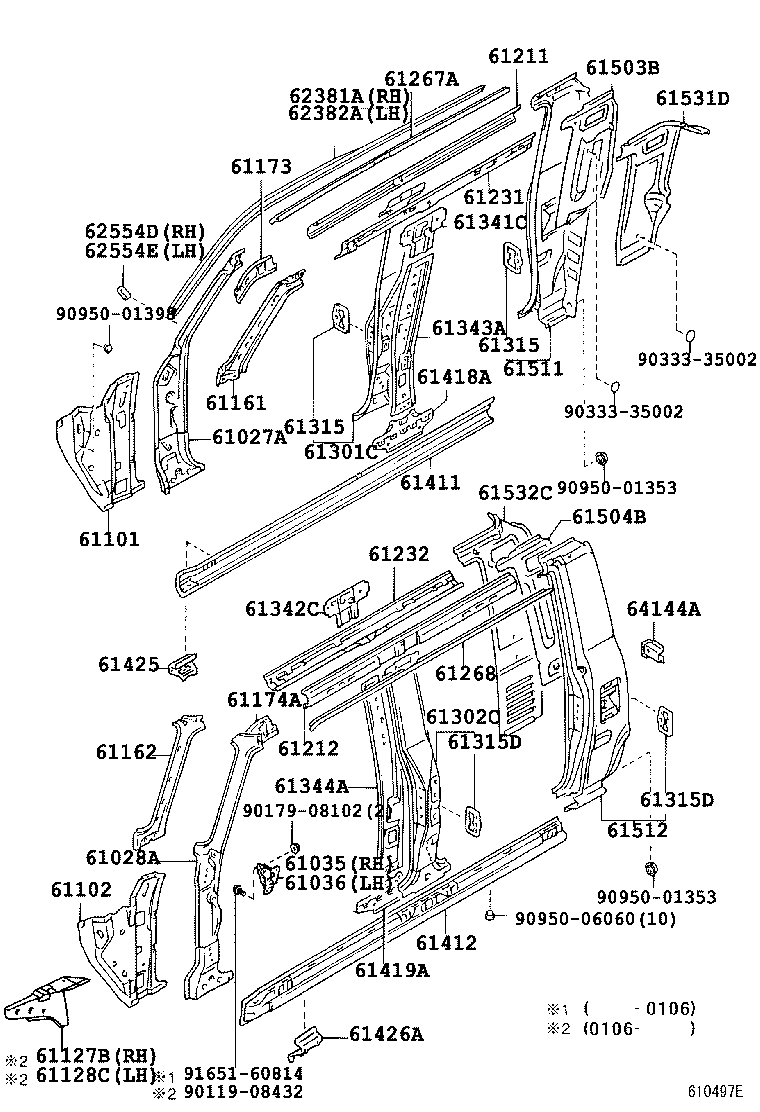

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61035-89101 |
LN200,RZN200 |
1 | ||
| 61127B - REINFORCEMENT, COWL SIDE PANEL, NO.2 RH | ||||
| 61127-89102 |
LN200,RZN200 |
1 | ||
| 61128C - REINFORCEMENT, COWL SIDE PANEL, NO.2 LH | ||||
| 61128-89101 |
LN200,RZN200 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-89108 |
LN200,RZN200..TW1 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-89108 |
LN200,RZN200..TW1 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-89114 |
LN200,RZN200..TW1 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-89114 |
LN200,RZN200..TW1 |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-89102 |
LN200,RZN200..TW1 |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-89102 |
LN200,RZN200..TW1 |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-35010 |
LN200,RZN200..TW1 |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-35010 |
LN200,RZN200..TW1 |
1 | ||
| 61341C - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-89102 |
LN200,RZN200..TW1 |
1 | ||
| 61342C - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-89102 |
LN200,RZN200..TW1 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61307-35010 |
LN200,RZN200..TW1 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61308-35010 |
LN200,RZN200..TW1 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-35020 |
LN200,RZN200..TW1 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-35020 |
LN200,RZN200..TW1 |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-35010 |
LN200,RZN200..TW1 |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-35010 |
LN200,RZN200..TW1 |
1 | ||
| 61425 - REINFORCEMENT, ROCKER PANEL, NO.4 RH | ||||
| 61425-35010 |
LN200,RZN200 |
1 | ||
| 61426A - REINFORCEMENT, ROCKER PANEL, NO.4 LH | ||||
| 61426-35010 |
LN200,RZN200 |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-89112 |
LN200,RZN200..TW1 |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-89113 |
LN200,RZN200..TW1 |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61501-89125 |
LN200,RZN200..TW1 |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-89129 |
LN200,RZN200..TW1 |
1 | ||
| 61531D - PANEL, CAB REAR PILLAR, INNER RH | ||||
| 61531-89125 |
LN200,RZN200..TW1 |
1 | ||
| 61532C - PANEL, CAB REAR PILLAR, INSIDE LH | ||||
| 61532-89128 |
LN200,RZN200..TW1 |
1 | ||
| 62381A - WEATHERSTRIP, ROOF SIDE RAIL, RH | ||||
| 62381-89102 |
LN200,RZN200..TW1 |
1 | ||
| 62382A - WEATHERSTRIP, ROOF SIDE RAIL, LH | ||||
| 62382-89102 |
LN200,RZN200..TW1 |
1 | ||
| 64144A - REINFORCEMENT, BACK CORNER PANEL, LH | ||||
| 64144-89103 |
LN200,RZN200..TW1 |
1 | ||
| Common parts | ||||
| 90119-08432 | ||||
| 90179-08102 | ||||
| 90333-35002 | ||||
| 90950-01353 | ||||
| 90950-01398 | ||||
| 90950-06060 | ||||
| 91651-60814 | ||||
