RZN200L-PRMDK (2001)

Toyota Hilux 2wd

Production Jun 2001 - Dec 2004
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )TW1

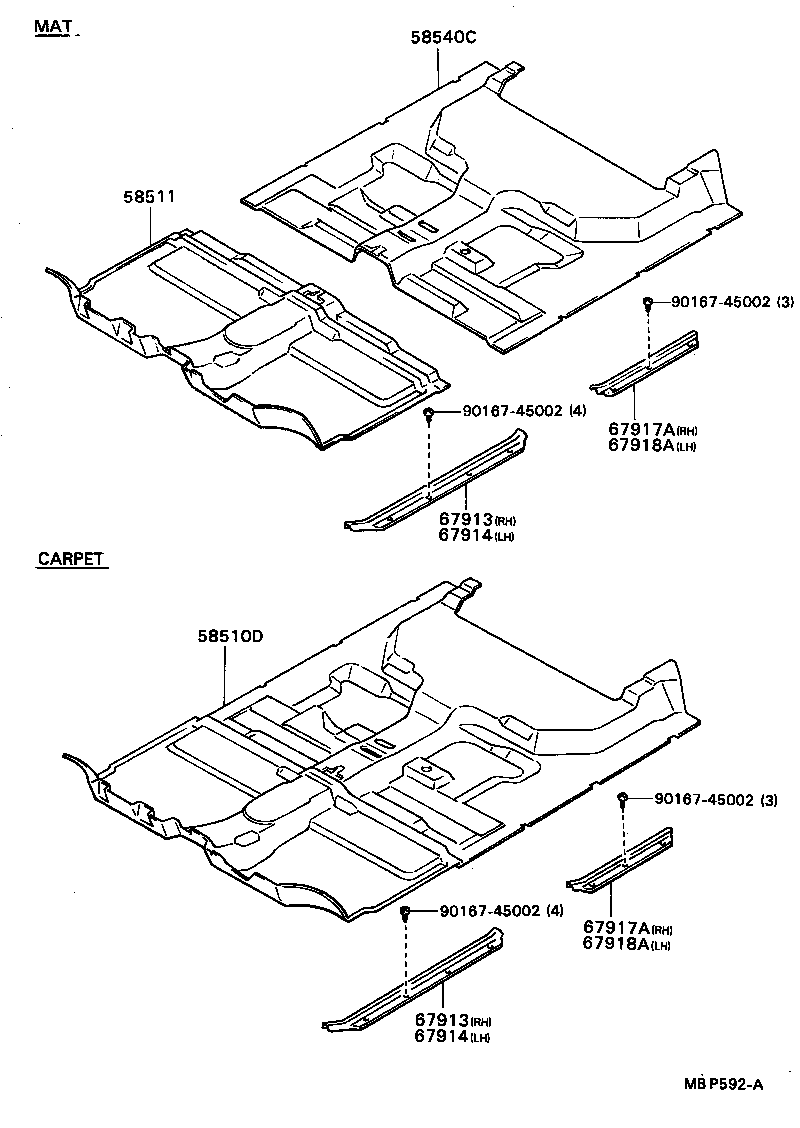

Click highlighted areas on diagram

diagram 58510D 58511 58540C 67913 67913 67914 67914 67917A 67917A 67918A 67918A 9016745002 9016745002 9016745002 9016745002
Part # Description Qty Price
58540C - MAT ASSY, FLOOR, REAR
58540-35100B0

RZN200..TW1

GRAY,TRIM1#

 1
Common parts
90167-45002
