RZN200L-PRMDK (2001)
Toyota Hilux 2wd

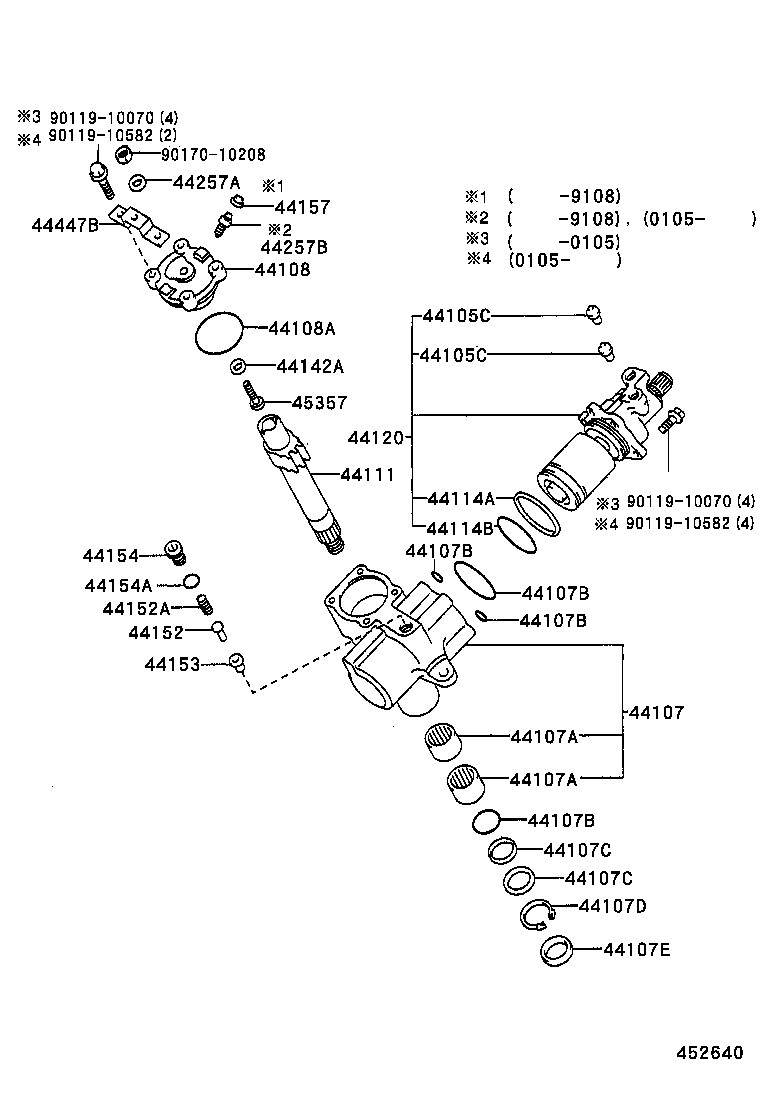

ILLUST NO. 3 OF 3(8808- )
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
LN200,RZN200 |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
LN200,RZN200 |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-35160 |
LN200,RZN200 |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-36006 |
LN200,RZN200 |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-36006 |
LN200,RZN200 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
LN200,RZN200 ID=9.8,OD=13.6 |
2 | ||
| 90301-69002 |
LN200,RZN200 ID=69.0,OD=74.0 |
1 | ||
| 90301-37006 |
LN200,RZN200 ID=37.7,OD=44.7 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
LN200,RZN200 ID=9.8,OD=13.6 |
2 | ||
| 90301-69002 |
LN200,RZN200 ID=69.0,OD=74.0 |
1 | ||
| 90301-37006 |
LN200,RZN200 ID=37.7,OD=44.7 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
LN200,RZN200 ID=9.8,OD=13.6 |
2 | ||
| 90301-69002 |
LN200,RZN200 ID=69.0,OD=74.0 |
1 | ||
| 90301-37006 |
LN200,RZN200 ID=37.7,OD=44.7 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
LN200,RZN200 ID=9.8,OD=13.6 |
2 | ||
| 90301-69002 |
LN200,RZN200 ID=69.0,OD=74.0 |
1 | ||
| 90301-37006 |
LN200,RZN200 ID=37.7,OD=44.7 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-35001 |
LN200,RZN200 ID=35.7,OD=38.1 |
1 | ||
| 90562-36002 |
LN200,RZN200 ID=36.0,OD=44.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-35001 |
LN200,RZN200 ID=35.7,OD=38.1 |
1 | ||
| 90562-36002 |
LN200,RZN200 ID=36.0,OD=44.0 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-48002 |
LN200,RZN200 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90311-36005 |
LN200,RZN200 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60030 |
LN200,RZN200 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
LN200,RZN200 |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-60030 |
LN200,RZN200 |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-71001 |
LN200,RZN200 |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-68002 |
LN200,RZN200 |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-35220 |
LN200,RZN200 |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-60020 |
LN200,RZN200 |
1 | ||
| 44152 - PLUNGER, POWER PISTON | ||||
| 44152-30020 |
LN200,RZN200 |
1 | ||
| 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) | ||||
| 90501-20095 |
LN200,RZN200 |
1 | ||
| 44153 - GUIDE, POWER PISTON PLUNGER | ||||
| 44153-30020 |
LN200,RZN200 |
1 | ||
| 44154 - NUT, POWER PISTON PLUNGER GUIDE | ||||
| 44154-30020 |
LN200,RZN200 |
1 | ||
| 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) | ||||
| 96711-19014 |
LN200,RZN200 |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
LN200,RZN200 |
1 | ||
| 44447B - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-35020 |
LN200,RZN200 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-60030 |
LN200,RZN200 |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90119-10582 | ||||
| 90170-10208 | ||||
