RZN200L-PRMDK (2001)
Toyota Hilux 2wd
Production
Jun 2001
-
Dec 2004
Engine
3RZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-0412)

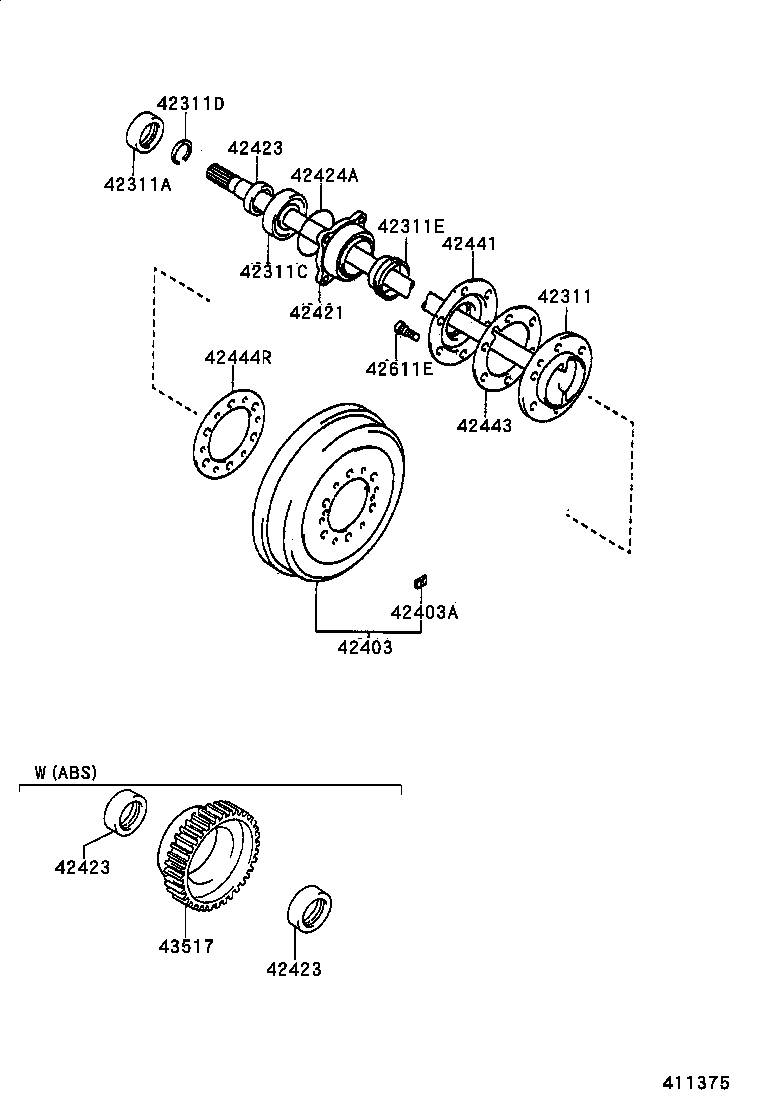

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-50006 |
LN200,RZN200 |
2 | ||
| 90310-50001 |
LN200,RZN200 |
2 | ||
| 42311D - RING, SNAP (FOR REAR AXLE SHAFT) | ||||
| 90520-36045 |
LN200,RZN200 |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-54001 |
LN200,RZN200 |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-35180 |
LN200,RZN200 |
2 | ||
| 42423 - RETAINER, REAR AXLE BEARING, INNER | ||||
| 42423-20010 |
RZN200;LN200..SRV W(ABS) |
4 | ||
| 42423-20010 |
LN200,RZN200..DLX,STD |
2 | ||
| 42423 - RETAINER, REAR AXLE BEARING, INNER | ||||
| 42423-20010 |
RZN200;LN200..SRV W(ABS) |
4 | ||
| 42423-20010 |
LN200,RZN200..DLX,STD |
2 | ||
| 42423 - RETAINER, REAR AXLE BEARING, INNER | ||||
| 42423-20010 |
RZN200;LN200..SRV W(ABS) |
4 | ||
| 42423-20010 |
LN200,RZN200..DLX,STD |
2 | ||
| 42424A - RING, O (FOR BEARING RETAINER SET) | ||||
| 90301-88077 |
LN200,RZN200 |
2 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-35020 |
LN200,RZN200 |
2 | ||
| 42443 - GASKET, BRAKE DRUM OIL DEFLECTOR | ||||
| 42443-55020 |
LN200,RZN200 |
2 | ||
| 42444R - GASKET, BRAKE DRUM (FOR REAR AXLE) | ||||
| 42444-35050 |
LN200,RZN200 |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02052 |
LN200,RZN200 |
12 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-35010 |
RZN200;LN200..SRV |
2 | ||
