RZN200L-PRMDK (2001)

Toyota Hilux 2wd

Production Jun 2001 - Dec 2004
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )

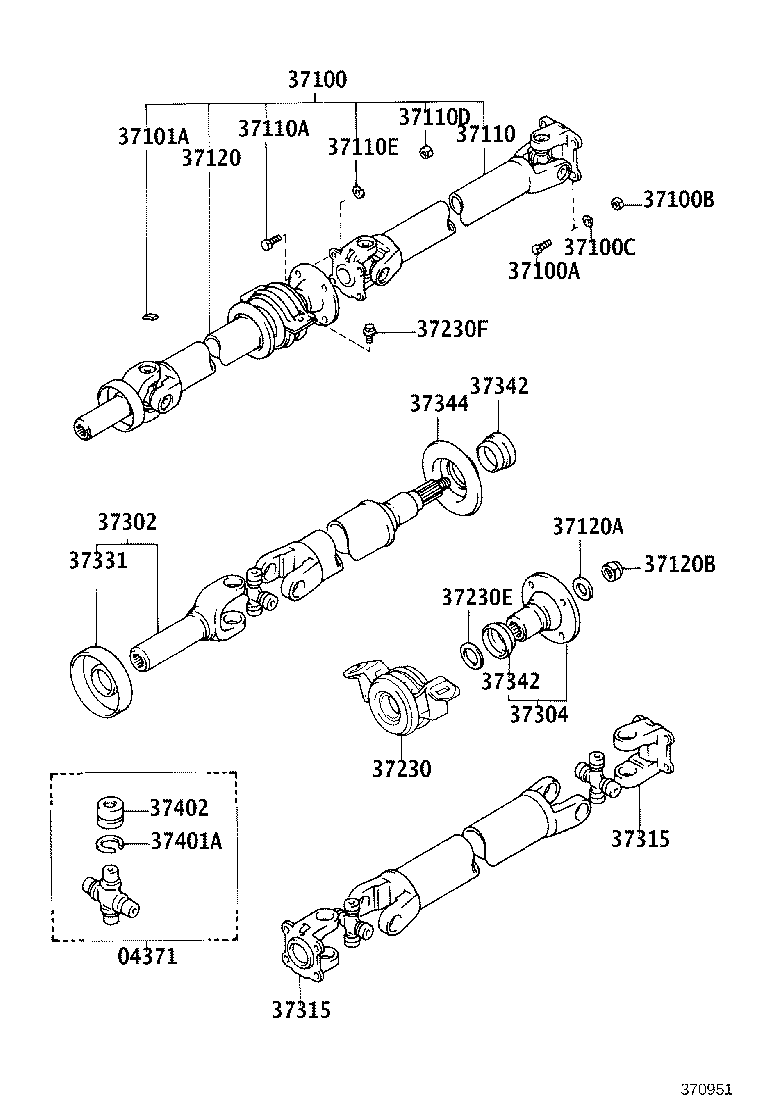

Click highlighted areas on diagram

diagram 04371 37100 37100A 37100B 37100C 37101A 37110 37110A 37110D 37110E 37120 37120A 37120B 37230 37230E 37230F 37302 37304 37315 37315 37331 37342 37342 37344 37401A 37402
Part # Description Qty Price
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-10085

LN200,RZN200

 4
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-10059

LN200,RZN200

 4
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90204-10002

LN200,RZN200

 4
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-35100

LN200,RZN200

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10316

LN200,RZN200

L=50

 2
