RN85R-TRPRSQ (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )LN8#,9#,RN8#,90,YN8#,9#

Click highlighted areas on diagram

diagram 2211 77023 77035 77037 77100 77100A 77100B 77100D 77161C 77169A 77201 77201 77203A 77213B 77290 77305A 77305A 77310A 77316 77319 77338A 77358A 77377 8401 9011908667 9011908667 9011908668 9015960032 9015960032 9016750028 9017008204 9017011006 9017905020 9017905020 9046022001 9046065002 9046065002 9046312002 9046315003 9054106058 9054108014 9162640618 9331914010 9338215010 9338515010
Part # Description Qty Price
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050

RN125,8#,90,YN8#,9#..CBR

 1
77100 - TANK ASSY, FUEL
77001-35977

LN85,86,90,RN85,90,YN85,86,87,92..T1

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

LN8#,9#,RN125,8#,90,YN8#,9#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LN8#,90,RN8#,90,YN8#,92

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77408-35020

LN8#,9#,RN8#,90,YN8#,9#..T1

L=340

 1
77161C - PROTECTOR, FUEL TANK, LOWER
77161-35050

LN8#,90,RN8#,90,YN8#,92..T1

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020

LN8#,9#,RN125,8#,90,YN8#,9#..CBR,DSL

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35390

RN85,90,YN85..T1..ARL

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35390

RN85,90,YN85..T1..ARL

 1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-35380

RN85,90,YN85,86,87,9#..CBR

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35200

LN8#,9#,RN8#,90,YN8#,9#..T1

 1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-89110

RN80,YN86..T1;LN8#,90,RN85,YN80,81,85,87,90..T1..(SR5,STD)..CBU

 1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-89110

RN80,YN86..T1;LN8#,90,RN85,YN80,81,85,87,90..T1..(SR5,STD)..CBU

 1
77310A - CAP ASSY, FUEL TANK
77310-12100

RN125,8#,90,YN8#,92..(4D,T1)..CBU

 1
77316 - GASKET, FUEL TANK CAP
77316-12050

LN8#,90,RN125,8#,90,YN8#,92..(4D,T1)..CBU

 1
77358A - STOPPER, FUEL FILLER OPENING LID
77358-24010

LN8#,90,RN8#,90,YN8#,92..T1..CBU

 1
Common parts
90119-08667
90119-08668
90159-60032
90167-50028
90170-08204
90170-11006
90179-05020
90460-22001
90460-65002
90463-12002
90463-15003
90541-06058
90541-08014
91626-40618
93319-14010
93382-15010
93385-15010
Linked diagrams
2211
8401

ILLUST NO. 2 OF 2(8808- )YN80,85,86,87,9#..ARL,GEN,TH

Click highlighted areas on diagram

diagram 4737235050 77251B 77251C 77251D 77255D 77255D 77255F 77255F 77261D 77261E 77261F 77261F 77277A 77277A 7728535140 7728535170 77701A 77701T 77740 77740A 77750 77750A 77750B 77751A 77754 9011908744 9011908744 9017906161 9017906161 9017906161 9017906161 9046013081 9046108663 9046110186 9046110722 9046400108 9046713007 9048018492 9048025030 9048028006 9092901206 9094901461 9094901462 9161160614 9161160614 91651G0614 91651G0614 91651G0614 91656F0822 9613241100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-35770

RN85,YN85,86,87..T1..CBR..(ARL,GEN,V)

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06030

RN80,90;RN85..ARL

*H,L=260

 1
77255D - TUBE, FUEL RETURN
77255-35530

RN85,YN85,86,87..T1..CBR

 1
77255D - TUBE, FUEL RETURN
77255-35530

RN85,YN85,86,87..T1..CBR

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-35420

YN85..ARL;RN85..RHD..T1

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

RN85,90,YN85..ARL

*H,L=300

 1
95333-06030

RN85,90,YN85..ARL

*H,L=280

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77209-35290

RN90;RN85..RHD..T1;RN85..T1..EFI

L=460

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77209-35290

RN90;RN85..RHD..T1;RN85..T1..EFI

L=460

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-35080

RN85,90..RHD

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-35080

RN85,90..RHD

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10054

YN86..GEN;LN8#,9#,YN80,85,87,9#

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35230

RN85,90,YN85..ARL

RR

 1
77740-35320

RN85,90..RHD

FR

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90999-92006

RN85,90..ARL

L=1150

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
23829-35030

RN85,90..ARL

 1
77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
90999-92002

RN85,90..RHD

*H,L=180,MARK=#*

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35230

RN85,90..RHD

FR

 1
77754-35250

RN85,90..RHD

RR

 1
Common parts
47372-35050
77285-35140
77285-35170
90119-08744
90179-06161
90460-13081
90461-08663
90461-10186
90461-10722
90464-00108
90467-13007
90480-18492
90480-25030
90480-28006
90929-01206
90949-01461
90949-01462
91611-60614
91651-G0614
91656-F0822
96132-41100

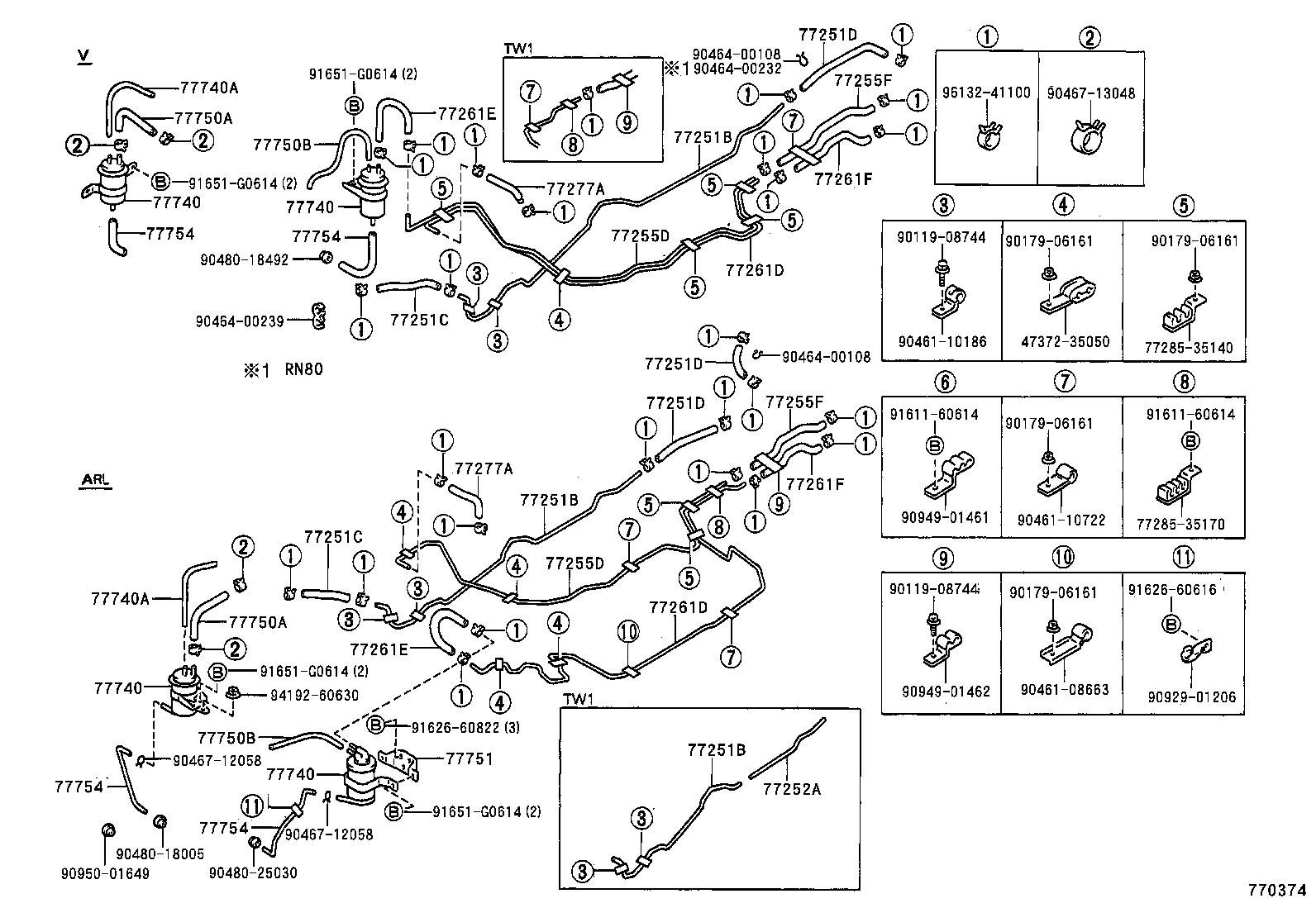

ILLUST NO. 2 OF 2(8808- )RN8#,90..CBR

Click highlighted areas on diagram

diagram 4737235050 77251B 77251B 77251B 77251C 77251C 77251D 77251D 77251D 77252A 77255D 77255D 77255F 77255F 77261D 77261D 77261E 77261E 77261F 77261F 77277A 77277A 7728535140 7728535170 77740 77740 77740 77740 77740A 77740A 77750A 77750A 77750B 77750B 77751 77754 77754 77754 77754 9011908744 9011908744 9017906161 9017906161 9017906161 9017906161 9046108663 9046110186 9046110722 9046400108 9046400108 9046400232 9046400239 9046712058 9046712058 9046713048 9048018005 9048018492 9048025030 9092901206 9094901461 9094901462 9095001649 9161160614 9161160614 9162660616 9162660822 91651G0614 91651G0614 91651G0614 91651G0614 9419260630 9613241100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-35770

RN85,YN85,86,87..T1..CBR..(ARL,GEN,V)

 1
77251B - TUBE, FUEL MAIN
77251-35770

RN85,YN85,86,87..T1..CBR..(ARL,GEN,V)

 1
77251B - TUBE, FUEL MAIN
77251-35770

RN85,YN85,86,87..T1..CBR..(ARL,GEN,V)

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06030

RN80,90;RN85..ARL

*H,L=260

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06030

RN80,90;RN85..ARL

*H,L=260

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06030

RN80,90;RN85..ARL

*H,L=260

 1
77255D - TUBE, FUEL RETURN
77255-35530

RN85,YN85,86,87..T1..CBR

 1
77255D - TUBE, FUEL RETURN
77255-35530

RN85,YN85,86,87..T1..CBR

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-35420

YN85..ARL;RN85..RHD..T1

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-35420

YN85..ARL;RN85..RHD..T1

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

RN85,90,YN85..ARL

*H,L=300

 1
95333-06030

RN85,90,YN85..ARL

*H,L=280

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

RN85,90,YN85..ARL

*H,L=300

 1
95333-06030

RN85,90,YN85..ARL

*H,L=280

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77209-35290

RN90;RN85..RHD..T1;RN85..T1..EFI

L=460

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77209-35290

RN90;RN85..RHD..T1;RN85..T1..EFI

L=460

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-35080

RN85,90..RHD

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-35080

RN85,90..RHD

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35230

RN85,90,YN85..ARL

RR

 1
77740-35320

RN85,90..RHD

FR

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35230

RN85,90,YN85..ARL

RR

 1
77740-35320

RN85,90..RHD

FR

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35230

RN85,90,YN85..ARL

RR

 1
77740-35320

RN85,90..RHD

FR

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35230

RN85,90,YN85..ARL

RR

 1
77740-35320

RN85,90..RHD

FR

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90999-92006

RN85,90..ARL

L=1150

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90999-92006

RN85,90..ARL

L=1150

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
23829-35030

RN85,90..ARL

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
23829-35030

RN85,90..ARL

 1
77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
90999-92002

RN85,90..RHD

*H,L=180,MARK=#*

 1
77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
90999-92002

RN85,90..RHD

*H,L=180,MARK=#*

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-35070

RN85,90..ARL

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35230

RN85,90..RHD

FR

 1
77754-35250

RN85,90..RHD

RR

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35230

RN85,90..RHD

FR

 1
77754-35250

RN85,90..RHD

RR

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35230

RN85,90..RHD

FR

 1
77754-35250

RN85,90..RHD

RR

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35230

RN85,90..RHD

FR

 1
77754-35250

RN85,90..RHD

RR

 1
Common parts
47372-35050
77285-35140
77285-35170
90119-08744
90179-06161
90461-08663
90461-10186
90461-10722
90464-00108
90464-00232
90464-00239
90467-12058
90467-13048
90480-18005
90480-18492
90480-25030
90929-01206
90949-01461
90949-01462
90950-01649
91611-60614
91626-60616
91626-60822
91651-G0614
94192-60630
96132-41100
