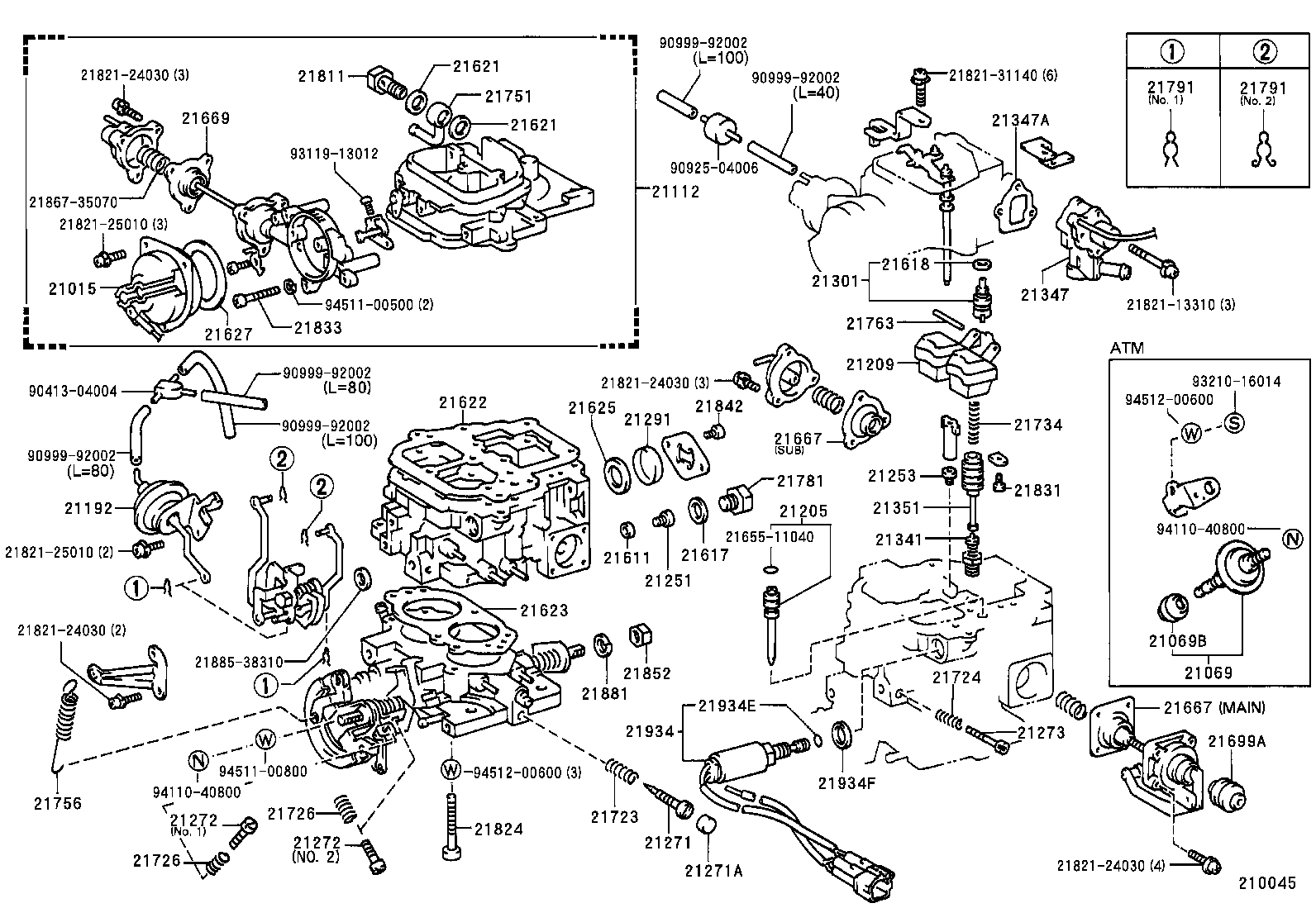

RN85R-TRPRSQ (1988)
Toyota Hilux 2wd
(8808-9008)22R..RN85..ARL ; (8808- )22R..RN90..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-35501 |
22R..RN85,90..ARL |
1 | ||
| 21069 - DASH POT SUB-ASSY | ||||
| 21069-37041 |
22R..RN85,90..4FC |
1 | ||
| 21069B - BOOT(FOR DASH POT) | ||||
| 21699-41010 |
22R..RN85,90..4FC |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-35521 |
22R..RN85,90..ARL |
1 | ||
| 21192 - BREAKER | ||||
| 21192-35521 |
22R..RN85,90..ARL |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-35210 |
22R..RN85,90..ARL |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-37041 |
22R..RN125,8#,90 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41117 |
22R..RN85,90..4FC |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-37040 |
22R..RN125,8#,90 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-35010 |
22R..RN85,90..ARL |
1 | ||
| 21271A - PLUG, IDLE LIMIT | ||||
| 21785-13211 |
22R..RN85,90..ARL |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21844-33011 |
22R..RN125,8#,90 NO.1 |
1 | ||
| 21273-26371 |
22R..RN125,8#,90 NO.2 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21844-33011 |
22R..RN125,8#,90 NO.1 |
1 | ||
| 21273-26371 |
22R..RN125,8#,90 NO.2 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-35211 |
22R..RN85,90..ARL |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-34320 |
22R..RN125,8#,90 |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-35010 |
22R..RN125,8#,90 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-61060 |
22R..RN125,8#,90 |
1 | ||
| 21347 - VALVE, SOLENOID | ||||
| 21347-35510 |
22R..RN125,8#,90 |
1 | ||
| 21347A - GASKET(FOR VALVE, SOLENOID) | ||||
| 21641-35510 |
22R..RN125,8#,90 |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-37040 |
22R..RN125,8#,90 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
22R..RN125,8#,90 |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
22R..RN125,8#,90 |
1 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
22R..RN125,8#,90 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
22R..RN125,8#,90 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
22R..RN125,8#,90 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-35510 |
22R..RN85,90..ARL |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-35510 |
22R..RN125,8#,90 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
22R..RN125,8#,90 |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28150 |
22R..RN125,8#,90 |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21675-35510 |
22R..RN125,8#,90 SUB |
1 | ||
| 21667-35510 |
22R..RN125,8#,90 MAIN |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21675-35510 |
22R..RN125,8#,90 SUB |
1 | ||
| 21667-35510 |
22R..RN125,8#,90 MAIN |
1 | ||
| 21669 - DIAPHRAGM | ||||
| 21669-35510 |
22R..RN125,8#,90 |
1 | ||
| 21699A - BOOT(FOR ACCELERATION PUMP) | ||||
| 21699-37040 |
22R..RN125,8#,90 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-37041 |
22R..RN125,8#,90 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-38331 |
22R..RN125,8#,90 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-38311 |
22R..RN125,8#,90 |
2 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-38311 |
22R..RN125,8#,90 |
2 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-37040 |
22R..RN85,90..ARL |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-37041 |
22R..RN125,8#,90 |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21869-37181 |
22R..RN85,90..ARL |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-34320 |
22R..RN125,8#,90 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15231 |
22R..RN125,8#,90 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13011 |
22R..RN85,90..ARL NO.1 |
3 | ||
| 21791-13011 |
22R..RN85,90..ARL NO.2 |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13011 |
22R..RN85,90..ARL NO.1 |
3 | ||
| 21791-13011 |
22R..RN85,90..ARL NO.2 |
2 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11061 |
22R..RN125,8#,90 |
1 | ||
| 21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET) | ||||
| 93110-16035 |
22R..RN125,8#,90 |
3 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
22R..RN125,8#,90 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33011 |
22R..RN8#,90 |
2 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33011 |
22R..RN8#,90 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30011 |
22R..RN125,8#,90 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60011 |
22R..RN125,8#,90 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-35411 |
22R..RN85,90..ARL |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
22R..RN125,8#,90 |
1 | ||
| 21934F - GASKET | ||||
| 21649-38010 |
22R..RN125,8#,90 |
1 | ||
| Common parts | ||||
| 21655-11040 | ||||
| 21821-13310 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-31140 | ||||
| 21867-35070 | ||||
| 21885-38310 | ||||
| 90413-04004 | ||||
| 90925-04006 | ||||
| 90999-92002 | ||||
| 93119-13012 | ||||
| 93210-16014 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
