RN85L-TRMRS (1991)

Toyota Hilux 2wd

Production Aug 1991 - Sep 1999
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )22R..RN85..LHD..STD

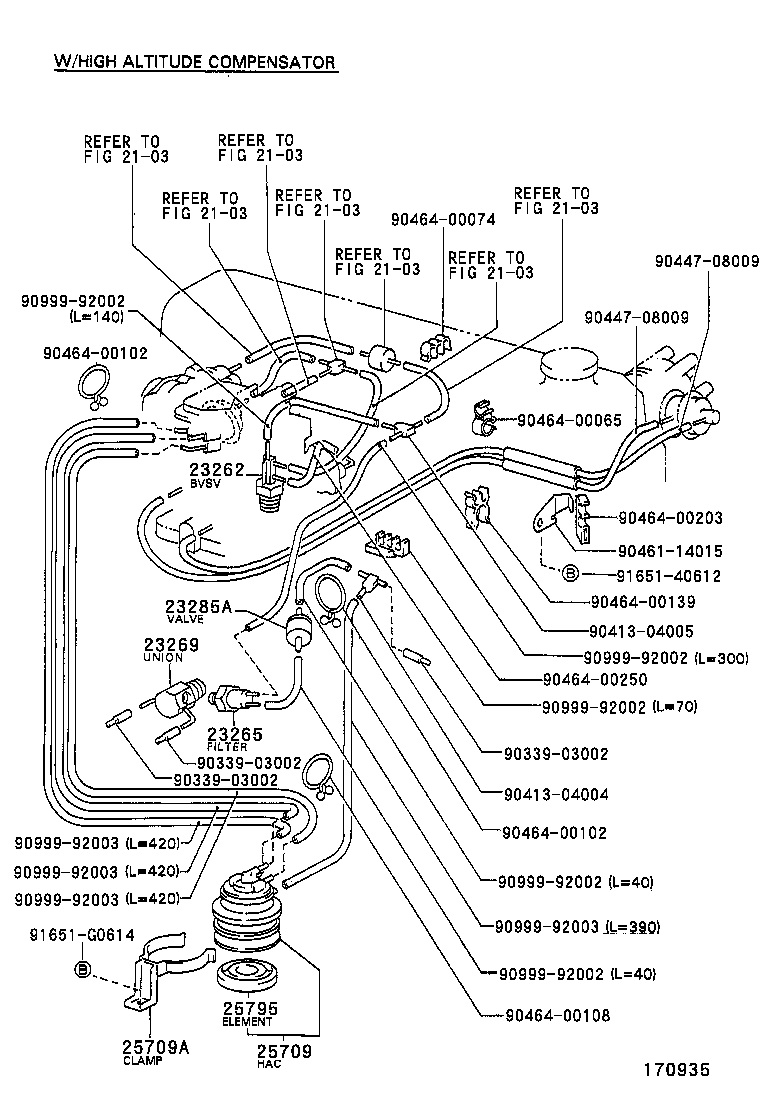

Click highlighted areas on diagram

diagram 2103 2103 2103 2103 2103 2103 2103 23262 23265 23269 23285A 25709 25709A 25795 9033903002 9033903002 9033903002 9041304004 9041304005 9044708009 9044708009 9046114015 9046400065 9046400074 9046400102 9046400102 9046400108 9046400139 9046400203 9046400250 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992003 9165140612 91651G0614
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

22R..RN125,8#,90

 1
23269 - UNION(FOR GAS FILTER)
90404-54030

22R..RN125,8#,90

 1
23285A - VALVE, CHECK, NO.1
90917-10049

22R#..RN85..LHD..GEN

 1
90917-10049

22R..RN85..LHD..STD

 1
25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-38010

22R..RN85..LHD..STD

 1
25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE)
90461-10178

22R..RN85..LHD..STD

 1
25795 - ELEMENT, ALTITUDE COMPENSATOR FILTER
25795-38010

22R..RN85..LHD..STD

 1
Common parts
90339-03002
90413-04004
90413-04005
90447-08009
90461-14015
90464-00065
90464-00074
90464-00102
90464-00108
90464-00139
90464-00203
90464-00250
90999-92002
90999-92003
91651-40612
91651-G0614
Linked diagrams
2103
