RN85L-TRMRE3 (1997)

Toyota Hilux 2wd

Production Sep 1997 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LN8#,9#,RN8#,90,YN8#,9#

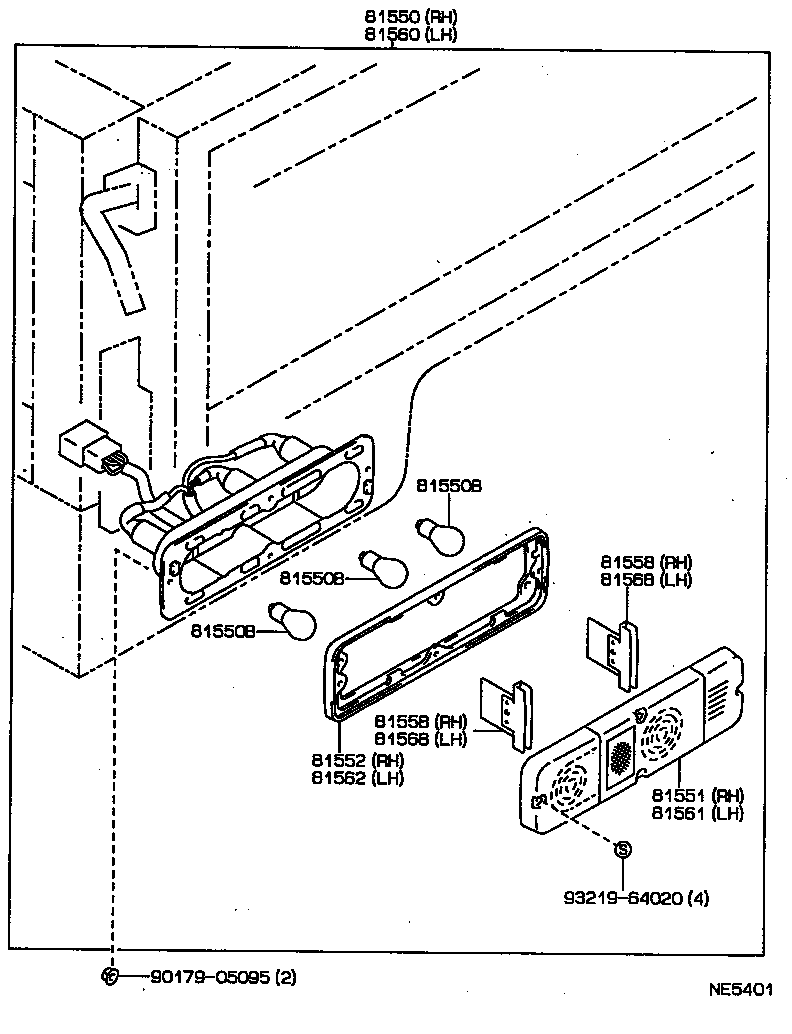

Click highlighted areas on diagram

COSTA RICA, FIJI, MALTA SPEC

diagram 8151987010 8151987010 81550 81550B 81550B 81550B 81551 81552 81558 81560 81561 81562 81568 9007510007 9018904144
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-89152

LN85,90,RN85,YN85,87,92..GEN..IV3

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LN8#,9#,RN125,8#,90,YN8#,9#

12V 21/5W

 2
99132-11230

LN85,90,RN85,YN85,87,92..GEN..IV3

12V 23W

 4
99132-11210

RN85;YN85..RHD;LN85..ARL..IV3;YN85..LHD..CBU;LN8#,90,RN80,90,YN80,81,86,87,92..CBU

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LN8#,9#,RN125,8#,90,YN8#,9#

12V 21/5W

 2
99132-11230

LN85,90,RN85,YN85,87,92..GEN..IV3

12V 23W

 4
99132-11210

RN85;YN85..RHD;LN85..ARL..IV3;YN85..LHD..CBU;LN8#,90,RN80,90,YN80,81,86,87,92..CBU

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LN8#,9#,RN125,8#,90,YN8#,9#

12V 21/5W

 2
99132-11230

LN85,90,RN85,YN85,87,92..GEN..IV3

12V 23W

 4
99132-11210

RN85;YN85..RHD;LN85..ARL..IV3;YN85..LHD..CBU;LN8#,90,RN80,90,YN80,81,86,87,92..CBU

12V 21W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-25060

LN85,90,RN85,YN85,87,92..GEN..IV3

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-25060

LN85,90,RN85,YN85,87,92..GEN..IV3

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-25060

LN85,90,RN85,YN85,87,92..GEN..IV3

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-89152

LN85,90,RN85,YN85,87,92..GEN..IV3

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-25040

LN85,90,RN85,YN85,87,92..GEN..IV3

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81562-25040

LN85,90,RN85,YN85,87,92..GEN..IV3

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-25060

LN85,90,RN85,YN85,87,92..GEN..IV3

 2
Common parts
81519-87010
90075-10007
90189-04144

(8808- )IV3

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81552 81558 81558 81560 81561 81562 81568 81568 9017905095 9321964020
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-89152

LN85,90,RN85,YN85,87,92..GEN..IV3

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LN8#,9#,RN125,8#,90,YN8#,9#

12V 21/5W

 2
99132-11230

LN85,90,RN85,YN85,87,92..GEN..IV3

12V 23W

 4
99132-11210

RN85;YN85..RHD;LN85..ARL..IV3;YN85..LHD..CBU;LN8#,90,RN80,90,YN80,81,86,87,92..CBU

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LN8#,9#,RN125,8#,90,YN8#,9#

12V 21/5W

 2
99132-11230

LN85,90,RN85,YN85,87,92..GEN..IV3

12V 23W

 4
99132-11210

RN85;YN85..RHD;LN85..ARL..IV3;YN85..LHD..CBU;LN8#,90,RN80,90,YN80,81,86,87,92..CBU

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LN8#,9#,RN125,8#,90,YN8#,9#

12V 21/5W

 2
99132-11230

LN85,90,RN85,YN85,87,92..GEN..IV3

12V 23W

 4
99132-11210

RN85;YN85..RHD;LN85..ARL..IV3;YN85..LHD..CBU;LN8#,90,RN80,90,YN80,81,86,87,92..CBU

12V 21W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-25060

LN85,90,RN85,YN85,87,92..GEN..IV3

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-25060

LN85,90,RN85,YN85,87,92..GEN..IV3

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-25060

LN85,90,RN85,YN85,87,92..GEN..IV3

 2
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-25060

LN85,90,RN85,YN85,87,92..GEN..IV3

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-89152

LN85,90,RN85,YN85,87,92..GEN..IV3

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-25040

LN85,90,RN85,YN85,87,92..GEN..IV3

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81562-25040

LN85,90,RN85,YN85,87,92..GEN..IV3

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-25060

LN85,90,RN85,YN85,87,92..GEN..IV3

 2
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-25060

LN85,90,RN85,YN85,87,92..GEN..IV3

 2
Common parts
90179-05095
93219-64020
