RN85L-TRMRE3 (1997)

Toyota Hilux 2wd

Production Sep 1997 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

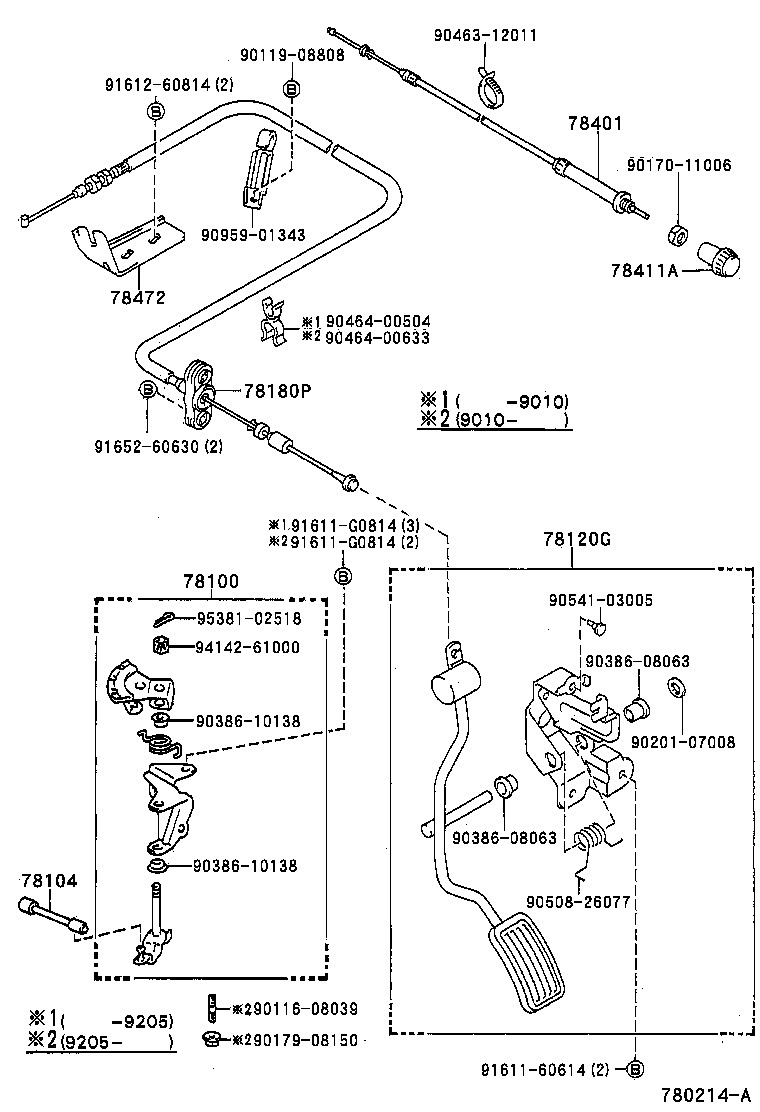

(8808- )LN81,85,86,90..LHD..GEN,V

Click highlighted areas on diagram

diagram 78100 78104 78120G 78180P 78401 78411A 78472 9011608039 9011908808 9017011006 9017908150 9020107008 9038608063 9038608063 9038610138 9038610138 9046312011 9046400504 9046400633 9050826077 9054103005 9095901343 9161160614 91611G0814 91611G0814 9161260814 9165260630 9414261000 9538102518
Part # Description Qty Price
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-89138

RN8#..V

 1
78120-89142

LN81,85,86,90..LHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-89151

LN81,85,86,90..LHD

 1
78180-89152

RN125,8#,90..LHD

 1
Common parts
90116-08039
90119-08808
90170-11006
90179-08150
90201-07008
90386-08063
90386-10138
90463-12011
90464-00504
90464-00633
90508-26077
90541-03005
90959-01343
91611-60614
91611-G0814
91612-60814
91652-60630
94142-61000
95381-02518

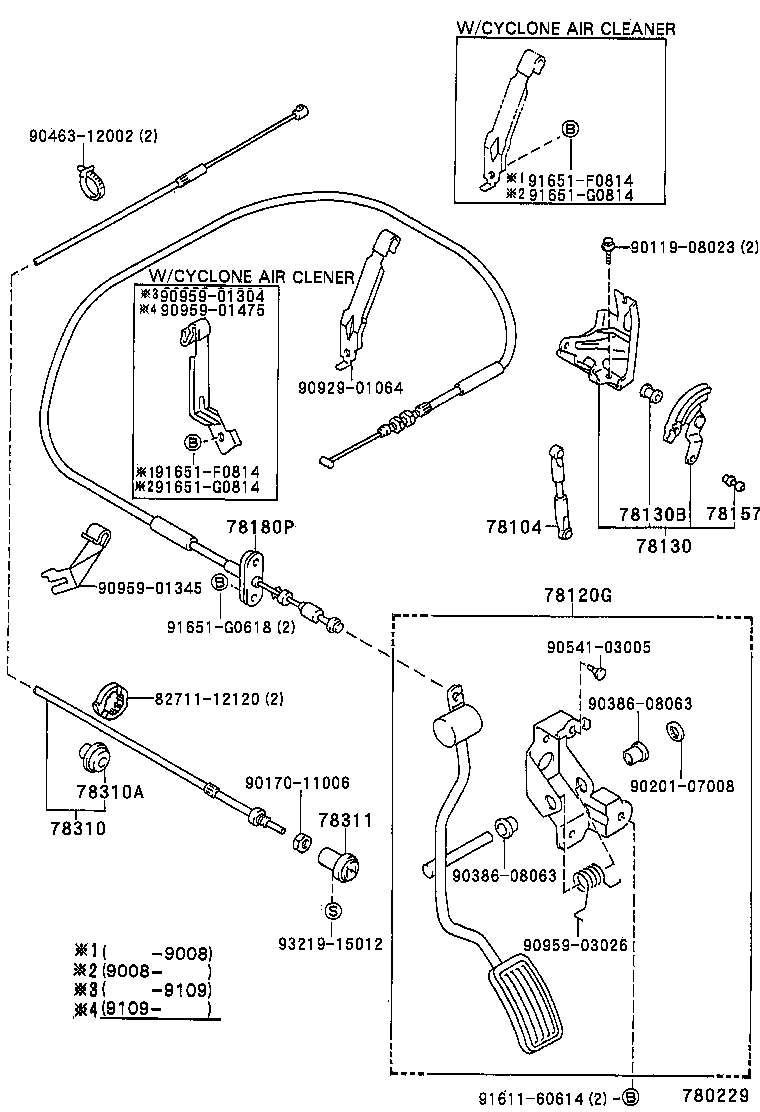

(8808- )YN80,85,86,87,92..LHD..GEN

Click highlighted areas on diagram

diagram 78104 78120G 78130 78130B 78157 78180P 78310 78310A 78311 8271112120 9011908023 9017011006 9020107008 9038608063 9038608063 9046312002 9054103005 9092901064 9095901304 9095901345 9095901475 9095903026 9161160614 91651F0814 91651F0814 91651G0618 91651G0814 91651G0814 9321915012
Part # Description Qty Price
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-89138

RN8#..V

 1
78120-89142

LN81,85,86,90..LHD

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78130-35020

YN81,85,86..ARL,V

 1
78130-35030

YN80,85,87,92..GEN,TH

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-89151

LN81,85,86,90..LHD

 1
78180-89152

RN125,8#,90..LHD

 1
78310 - CABLE ASSY, CHOKE
78310-89116

YN80,85,87,92..LHD

 1
78310A - GROMMET, CHOKE CABLE
90480-21005

YN80,85,87,92..GEN,TH

 1
78311 - KNOB, CHOKE CONTROL CABLE
78311-89103

YN80,85,87,92..GEN,TH

 1
Common parts
82711-12120
90119-08023
90170-11006
90201-07008
90386-08063
90463-12002
90541-03005
90929-01064
90959-01304
90959-01345
90959-01475
90959-03026
91611-60614
91651-F0814
91651-G0618
91651-G0814
93219-15012

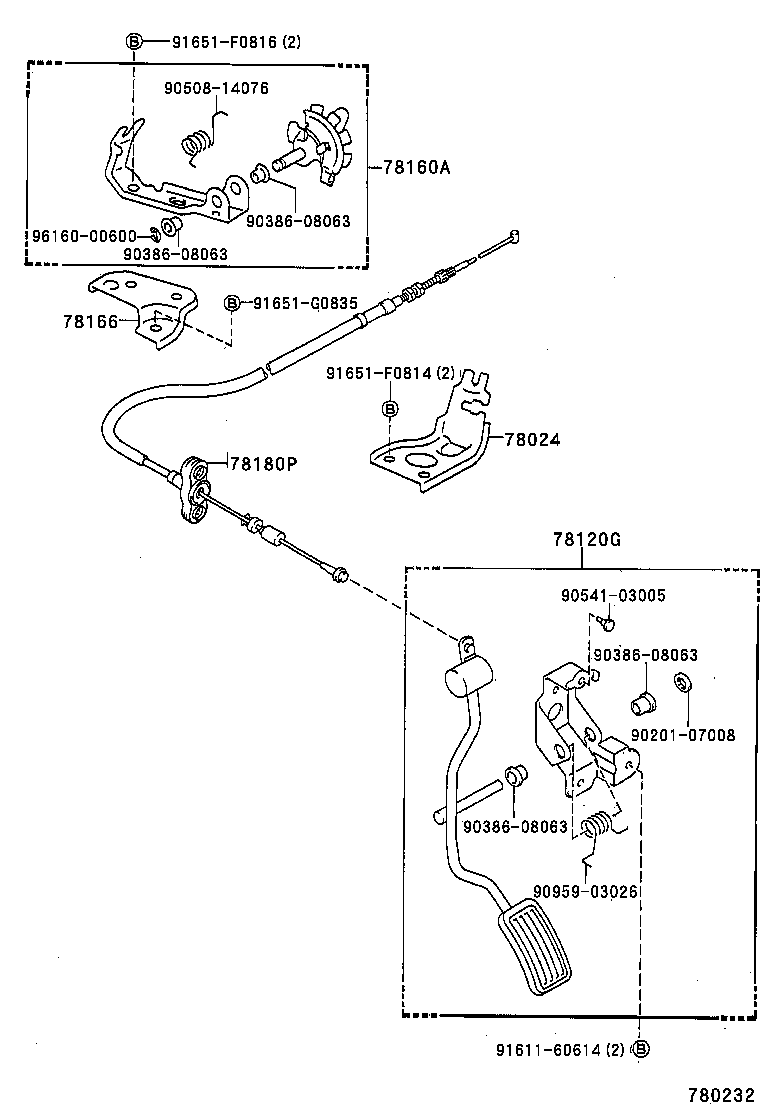

(8808- )RN8#..GEN,V ; (9208- )RN90..V

Click highlighted areas on diagram

diagram 78024 78120G 78160A 78166 78180P 9020107008 9038608063 9038608063 9038608063 9038608063 9050814076 9054103005 9095903026 9161160614 91651F0814 91651F0816 91651G0835 9616000600
Part # Description Qty Price
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-89138

RN8#..V

 1
78120-89142

LN81,85,86,90..LHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-89151

LN81,85,86,90..LHD

 1
78180-89152

RN125,8#,90..LHD

 1
Common parts
90201-07008
90386-08063
90508-14076
90541-03005
90959-03026
91611-60614
91651-F0814
91651-F0816
91651-G0835
96160-00600
