RN85L-TRMRE3 (1997)
Toyota Hilux 2wd

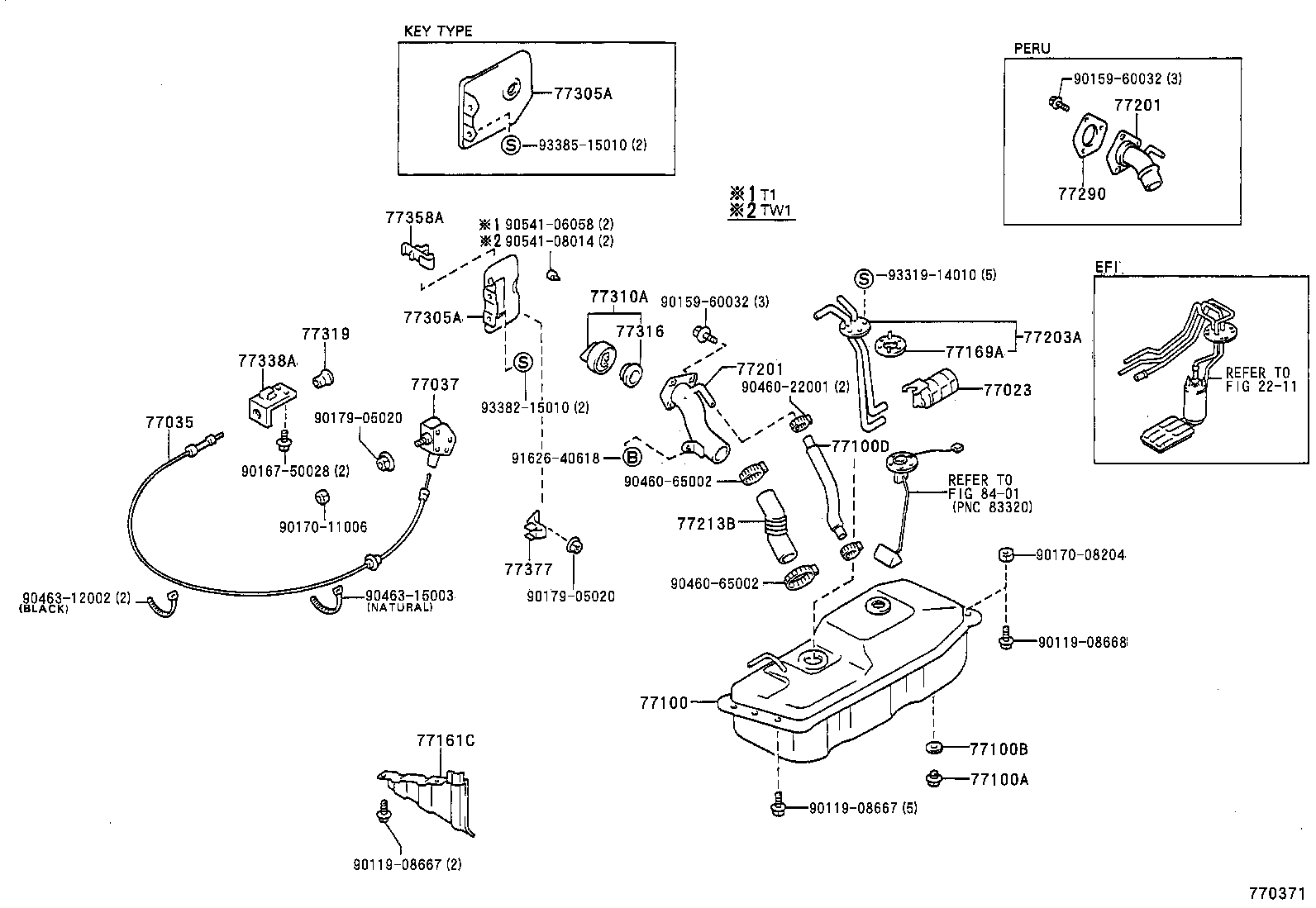

ILLUST NO. 1 OF 2(8808- )LN8#,9#,RN8#,90,YN8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-89108 |
RN85..T1..V;LN85,86,YN85,86,87..LHD..T1..(GEN,V)..CBU |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-89102 |
RN85..T1..V;YN85..T1..GEN..CBU;LN85,86,RN85..T1..(DSL,EFI)..(GEN,V)..CBU;LN80,81,90,RN80,90,YN80,81,86,87,92..T1..(ARL,GEN,V)..CBU |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-35977 |
LN85,86,90,RN85,90,YN85,86,87,92..T1 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LN8#,90,RN8#,90,YN8#,92 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77408-35020 |
LN8#,9#,RN8#,90,YN8#,9#..T1 L=340 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35050 |
LN8#,90,RN8#,90,YN8#,92..T1 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35380 |
RN85,YN85..T1..(GEN,TH,V);LN8#,90,RN80,YN80,81,86,87,92..T1 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35380 |
RN85,YN85..T1..(GEN,TH,V);LN8#,90,RN80,YN80,81,86,87,92..T1 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35200 |
LN8#,9#,RN8#,90,YN8#,9#..T1 |
1 | ||
| 77338A - BRACKET, FUEL TANK CAP LOCK CONTROL ROD | ||||
| 77338-89105 |
RN85..T1..V;LN86,YN80,85,87..T1..(GEN,V)..CBU;LN85,RN85..T1..(DSL,EFI)..(GEN,TH)..CBU;LN80,81,90,RN125,80,90,YN81,86,92..(4D,T1)..CBU |
1 | ||
| Common parts | ||||
| 90119-08667 | ||||
| 90119-08668 | ||||
| 90159-60032 | ||||
| 90167-50028 | ||||
| 90170-08204 | ||||
| 90170-11006 | ||||
| 90179-05020 | ||||
| 90460-22001 | ||||
| 90460-65002 | ||||
| 90463-12002 | ||||
| 90463-15003 | ||||
| 90541-06058 | ||||
| 90541-08014 | ||||
| 91626-40618 | ||||
| 93319-14010 | ||||
| 93382-15010 | ||||
| 93385-15010 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||

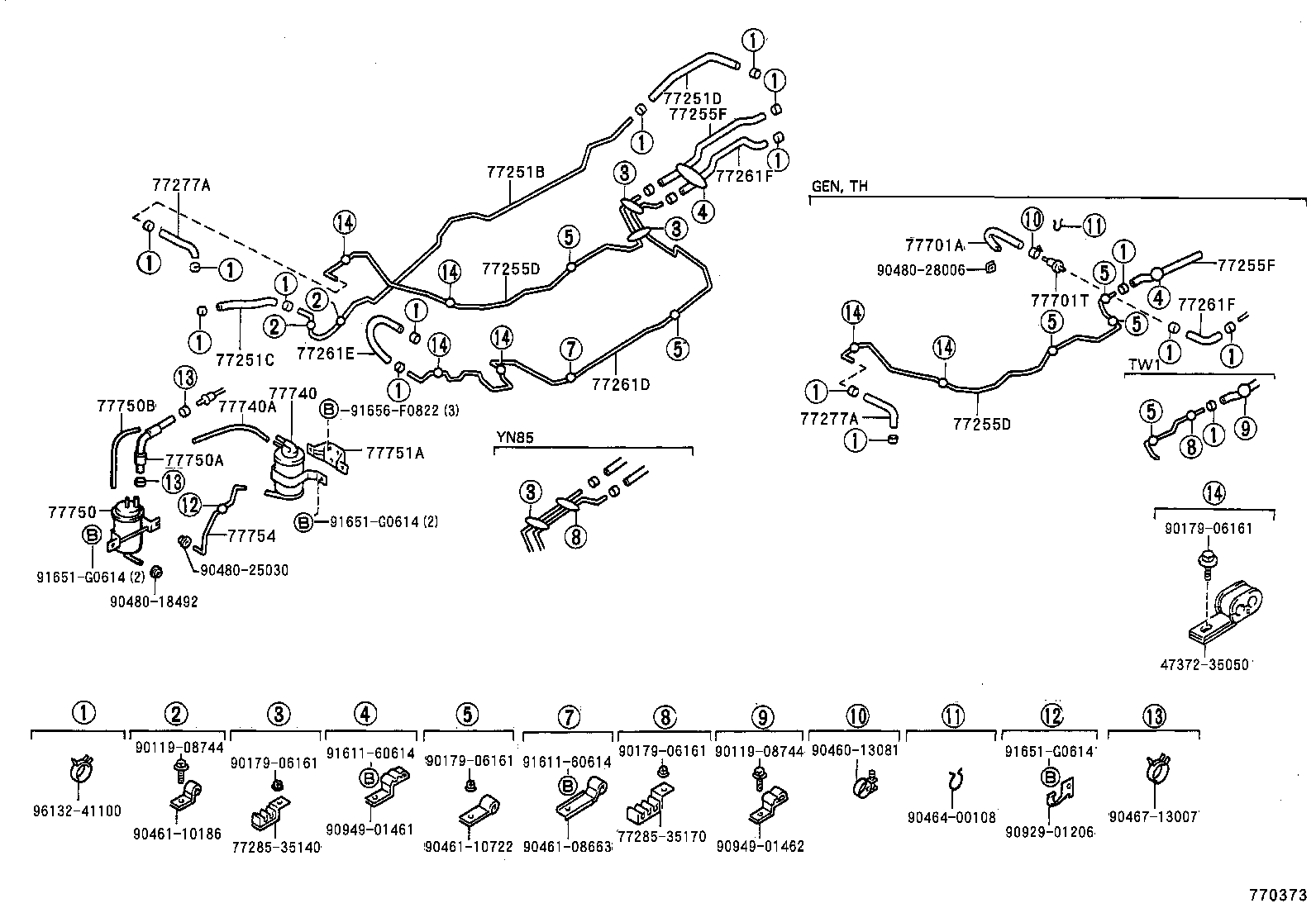

ILLUST NO. 2 OF 2(8808- )YN80,85,86,87,9#..ARL,GEN,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08030 |
LN81,85,86,90..LHD *H,L=240,ID=7.6 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-35390 |
YN86..T1;RN85..T1..V;RN85..T1..EFI |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-35050 |
RN85..V L=380 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77209-35290 |
RN90;RN85..RHD..T1;RN85..T1..EFI L=460 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77209-35290 |
RN90;RN85..RHD..T1;RN85..T1..EFI L=460 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10054 |
YN86..GEN;LN8#,9#,YN80,85,87,9# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35170 |
RN125,8#,YN81,86..V FR |
1 | ||
| 77740-35270 |
RN8#..V RR |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90999-92003 |
RN125,8#,90..V *H,L=450,MARK=#* |
1 | ||
| 77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) | ||||
| 90999-92003 |
RN125,8#,90..V *H,L=420,MARK=#* |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-35131 |
RN8#,90..V L=320 |
1 | ||
| 77754-35151 |
YN81,86;RN85..EFI L=530 |
1 | ||
| Common parts | ||||
| 47372-35050 | ||||
| 77285-35140 | ||||
| 77285-35170 | ||||
| 90119-08744 | ||||
| 90179-06161 | ||||
| 90460-13081 | ||||
| 90461-08663 | ||||
| 90461-10186 | ||||
| 90461-10722 | ||||
| 90464-00108 | ||||
| 90467-13007 | ||||
| 90480-18492 | ||||
| 90480-25030 | ||||
| 90480-28006 | ||||
| 90929-01206 | ||||
| 90949-01461 | ||||
| 90949-01462 | ||||
| 91611-60614 | ||||
| 91651-G0614 | ||||
| 91656-F0822 | ||||
| 96132-41100 | ||||
