RN85L-TRMRE3 (1997)

Toyota Hilux 2wd

Production Sep 1997 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

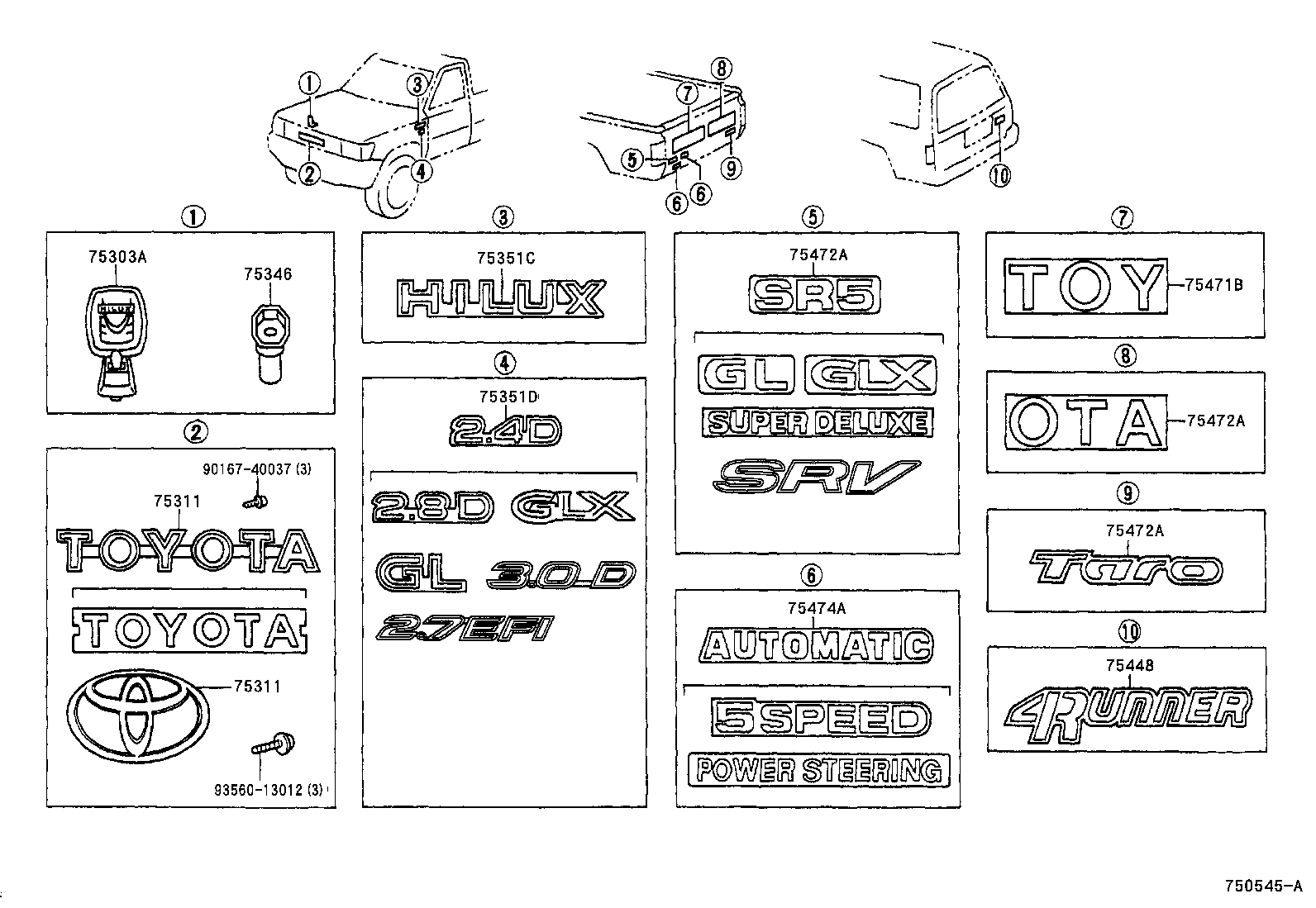

Click highlighted areas on diagram

diagram 75303A 75311 75311 75346 75351C 75351D 75448 75471B 75472A 75472A 75472A 75474A 9016740037 9356013012
Part # Description Qty Price
75303A - EMBLEM SUB-ASSY, HOOD
75303-89102

LN8#,90,RN8#,YN8#,92..GEN,TH,V

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-89117

LN80,85,90,YN80,85,87,92..GEN,TH

CHROME PLATED PACKAGE

 1
75311-89118

LN80,85,RN85,YN80,85,87..STD..(ARL,GEN,TH)

 1
75311-89122

LN81,86,RN8#,YN81,86..STD..V

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-89117

LN80,85,90,YN80,85,87,92..GEN,TH

CHROME PLATED PACKAGE

 1
75311-89118

LN80,85,RN85,YN80,85,87..STD..(ARL,GEN,TH)

 1
75311-89122

LN81,86,RN8#,YN81,86..STD..V

 1
75346 - PAD, HOOD ORNAMENT, NO.2
75346-22020

LN8#,90,RN8#,YN8#,92..GEN,TH,V

 1
75351C - MARK, FENDER
75351-89125

LN8#,9#,RN8#,90,YN8#,9#

 2
75351D - MARK, FENDER, NO.2
75351-89126

LN80,85,90

 2
75471B - PLATE, REAR BODY NAME, NO.1
75471-8912208

RN8#,YN81,86..V

WHITE,138 ,202 ,3B2 ,3H4 ,3H7 ,8E2

 1
75471-8912201

YN86..DLX;YN81,86..4F;RN8#..(DLX,STD)..V

BRACK,147 ,8D8

 1
75472A - PLATE, REAR BODY NAME, NO.2
75472-8913108

RN8#,YN81,86..STD..V

TOYOTA,WHITE,138 ,202 ,3B2 ,3H4 ,3H7 ,8E2

 1
75472-8913101

RN8#,YN81,86..STD..V

TOYOTA,BRACK,147 ,8D8

 1
75472A - PLATE, REAR BODY NAME, NO.2
75472-8913108

RN8#,YN81,86..STD..V

TOYOTA,WHITE,138 ,202 ,3B2 ,3H4 ,3H7 ,8E2

 1
75472-8913101

RN8#,YN81,86..STD..V

TOYOTA,BRACK,147 ,8D8

 1
75472A - PLATE, REAR BODY NAME, NO.2
75472-8913108

RN8#,YN81,86..STD..V

TOYOTA,WHITE,138 ,202 ,3B2 ,3H4 ,3H7 ,8E2

 1
75472-8913101

RN8#,YN81,86..STD..V

TOYOTA,BRACK,147 ,8D8

 1
75474A - PLATE, REAR BODY NAME, NO.4
75474-89113

LN8#,90,RN8#,90,YN81,85,86,87,92..5F..(GEN,V)

 1
Common parts
90167-40037
93560-13012
