RN85L-TRMRE3 (1997)
Toyota Hilux 2wd

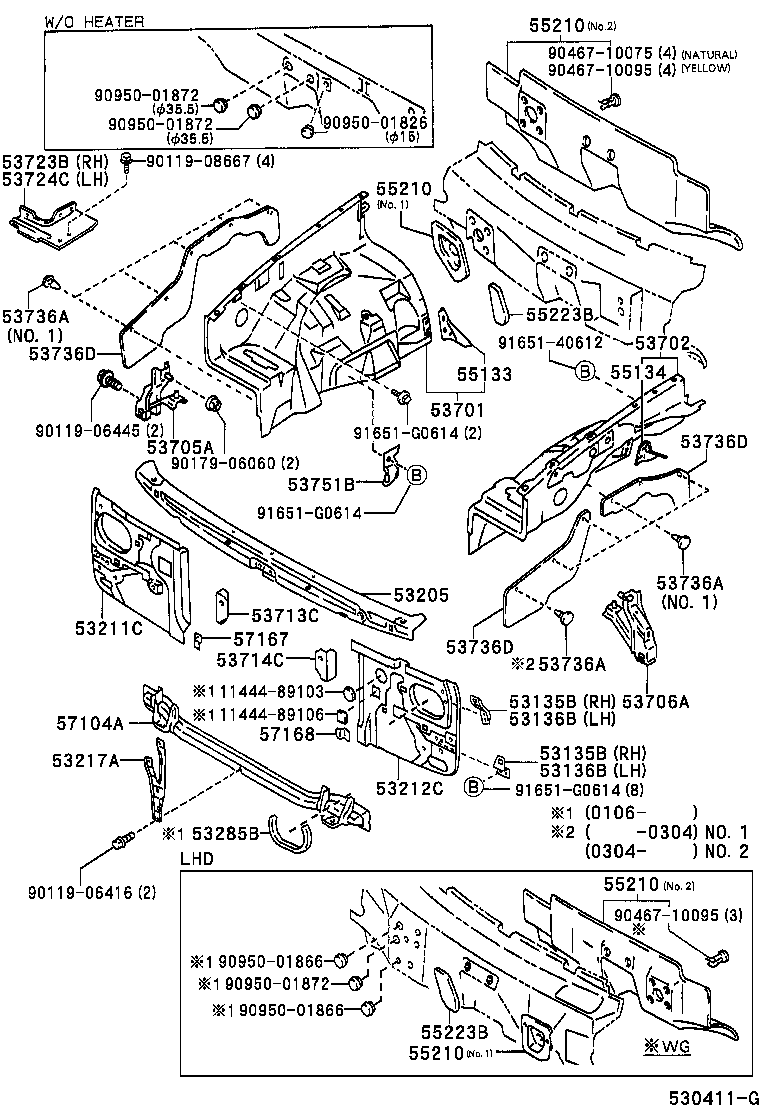

ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-89110 |
LN8#,90,RN125,8#,90,YN8#,92 |
1 | ||
| 53211C - SUPPORT, RADIATOR, RH | ||||
| 53202-35020 |
LN8#,90,RN85,90,YN80,85,87,92..ARL,GEN,TH |
1 | ||
| 53211-89123 |
RN8#,YN81,86..V |
1 | ||
| 53211-89123 |
LN8#,90,YN80,85,87,92..GEN W(BODY RUST PROTECTING) |
1 | ||
| 53212C - SUPPORT, RADIATOR, LH | ||||
| 53212-89120 |
RN8#,YN81,86..V |
1 | ||
| 53203-35020 |
LN8#,90,RN85,90,YN80,85,87,92..ARL,GEN,TH |
1 | ||
| 53212-89120 |
LN8#,90,YN80,85,87,92..GEN W(BODY RUST PROTECTING) |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-89108 |
LN8#,90,RN8#,90,YN8#,9# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-89205 |
RN8#,90..LHD W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 53701-89213 |
RN8#,90..LHD |
1 | ||
| 53701-89215 |
LN81,85,86,90..LHD |
1 | ||
| 53701-89220 |
YN80,85,87,92..LHD |
1 | ||
| 53701-35880 |
RN85..LHD W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 53701-35870 |
RN85..LHD..CBR;RN85..EFI..IV3 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-35810 |
RN85..EFI COLOMBIA SPEC & W(POWER STEERING) |
1 | ||
| 53705A - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-89102 |
LN8#,90,RN8#,90,YN8#,9# |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-89102 |
LN8#,90,RN8#,90,YN8#,9# |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53707-89102 |
LN86,RN85,YN86..CBR,DSL;LN80,81,85,9#,RN80,90,YN80,81,85,87,90..ARL,TH,V |
1 | ||
| 53713-89104 |
RN85..EFI..CBU;LN80,85,90,RN125,YN80,85,87,92..GEN,V |
1 | ||
| 53707-89102 |
RN85..EFI..CBU;LN80,85,90,YN80,85,87,92..GEN SEVERE USAGE PACKAGE |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53708-89101 |
RN85..EFI..CBU;LN80,85,90,YN80,85,87,92..GEN SEVERE USAGE PACKAGE |
1 | ||
| 53714-89104 |
RN85..EFI..CBU;LN80,85,90,RN125,YN80,85,87,92..GEN,V |
1 | ||
| 53708-89101 |
LN86,RN85,YN86..CBR,DSL;LN80,81,85,9#,RN80,90,YN80,81,85,87,90..ARL,TH,V |
1 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10107 |
LN8#,90,RN8#,90 |
11 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10107 |
LN8#,90,RN8#,90 |
11 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10107 |
LN8#,90,RN8#,90 |
11 | ||
| 53736D - SEAL, FENDER APRON | ||||
| 53736-89119 |
LN8#,9#,RN8#,90 MARK=BB |
1 | ||
| 53736-89120 |
LN8#,9#,RN8#,90 MARK=EE |
1 | ||
| 53736-89118 |
LN8#,9#,RN8#,90 MARK=AA |
1 | ||
| 53736D - SEAL, FENDER APRON | ||||
| 53736-89119 |
LN8#,9#,RN8#,90 MARK=BB |
1 | ||
| 53736-89120 |
LN8#,9#,RN8#,90 MARK=EE |
1 | ||
| 53736-89118 |
LN8#,9#,RN8#,90 MARK=AA |
1 | ||
| 53736D - SEAL, FENDER APRON | ||||
| 53736-89119 |
LN8#,9#,RN8#,90 MARK=BB |
1 | ||
| 53736-89120 |
LN8#,9#,RN8#,90 MARK=EE |
1 | ||
| 53736-89118 |
LN8#,9#,RN8#,90 MARK=AA |
1 | ||
| 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH | ||||
| 55133-89103 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 55134 - PLATE, FRONT FENDER APRON SET, LOWER LH | ||||
| 55134-89103 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89157 |
YN86..DLX;LN85,RN8#,YN92..LHD NO.2 |
1 | ||
| 55210-89151 |
LN81,85,86,90,RN125,8#,90,YN8#,92..LHD NO.1 |
1 | ||
| 55210-35120 |
RN85..EFI..IV3 NO.2 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89157 |
YN86..DLX;LN85,RN8#,YN92..LHD NO.2 |
1 | ||
| 55210-89151 |
LN81,85,86,90,RN125,8#,90,YN8#,92..LHD NO.1 |
1 | ||
| 55210-35120 |
RN85..EFI..IV3 NO.2 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89157 |
YN86..DLX;LN85,RN8#,YN92..LHD NO.2 |
1 | ||
| 55210-89151 |
LN81,85,86,90,RN125,8#,90,YN8#,92..LHD NO.1 |
1 | ||
| 55210-35120 |
RN85..EFI..IV3 NO.2 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89157 |
YN86..DLX;LN85,RN8#,YN92..LHD NO.2 |
1 | ||
| 55210-89151 |
LN81,85,86,90,RN125,8#,90,YN8#,92..LHD NO.1 |
1 | ||
| 55210-35120 |
RN85..EFI..IV3 NO.2 |
1 | ||
| 55223B - INSULATOR, DASH PANEL HEAT, NO.1 | ||||
| 55225-89103 |
LN81,85,86,90..LHD |
1 | ||
| 55223B - INSULATOR, DASH PANEL HEAT, NO.1 | ||||
| 55225-89103 |
LN81,85,86,90..LHD |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-89109 |
LN8#,90,RN8#,90,YN8#,9# |
1 | ||
| 57167 - GUSSET, FRONT CROSSMEMBER, UPPER RH | ||||
| 57167-89101 |
LN8#,90,RN8#,90,YN8#..ARL,TH,V |
1 | ||
| 57167-89101 |
LN8#,90,YN80,85,87,92..GEN SEVERE USAGE PACKAGE |
1 | ||
| 57168 - GUSSET, FRONT CROSSMEMBER, UPPER LH | ||||
| 57168-89101 |
LN8#,90,YN80,85,87,92..GEN SEVERE USAGE PACKAGE |
1 | ||
| 57168-89101 |
LN8#,90,RN8#,90,YN8#..ARL,TH,V |
1 | ||
| Common parts | ||||
| 11444-89103 | ||||
| 11444-89106 | ||||
| 90119-06416 | ||||
| 90119-06445 | ||||
| 90119-08667 | ||||
| 90179-06060 | ||||
| 90467-10075 | ||||
| 90467-10095 | ||||
| 90950-01826 | ||||
| 90950-01866 | ||||
| 90950-01872 | ||||
| 91651-40612 | ||||
| 91651-G0614 | ||||
