RN85L-TRMRE3 (1997)

Toyota Hilux 2wd

Production Sep 1997 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

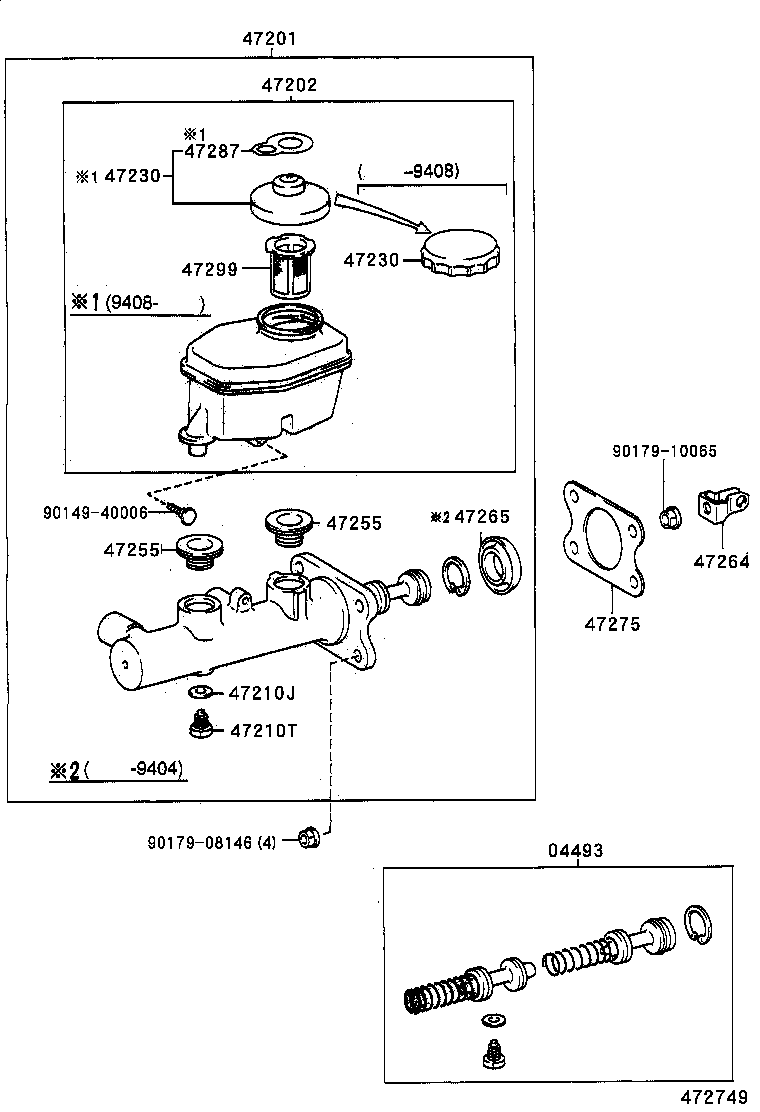

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47230 47255 47255 47264 47265 47275 47287 47299 9014940006 9017908146 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-35290

LN80,85,YN80,85..GEN

W(FR DISC BRAKE)

 1
04493-35290

LN90,YN87,92;LN8#,RN8#,90,YN80,81,85,86..ARL,TH,V

 1
04493-35280

LN80,85,RN125,YN80,85..GEN,V

 1
04493-60280

RN85

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-35640

RN8#,YN81,86..V

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-35220

RN85..V;LN80,85,90,RN125,80,YN81,86..ARL,TH,V

 1
47202-35200

YN80,85..GEN;LN85..LHD..GEN

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

LN8#,9#,RN125,8#,90,YN8#,9#

 1
90430-06104

LN85,RN85,YN85

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

LN85,RN85,YN85

 1
90109-06077

LN8#,9#,RN125,8#,90,YN8#,9#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
84460-12070

LN90,YN87,92;LN8#,RN125,8#,90,YN80,81,85,86..ARL,TH,V

 1
84460-12070

LN8#,YN80,85..GEN

W(FR DISC BRAKE)

 1
47230-12040

LN80,85,YN80,85..GEN

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
84460-12070

LN90,YN87,92;LN8#,RN125,8#,90,YN80,81,85,86..ARL,TH,V

 1
84460-12070

LN8#,YN80,85..GEN

W(FR DISC BRAKE)

 1
47230-12040

LN80,85,YN80,85..GEN

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

LN85,RN85,YN85

 2
47255-16010

LN8#,9#,RN125,8#,90,YN8#,9#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

LN85,RN85,YN85

 2
47255-16010

LN8#,9#,RN125,8#,90,YN8#,9#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-28010

LN85,RN85,YN85

 1
47264-22010

LN8#,90,RN8#,90,YN8#,92

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

LN8#,90,RN125,8#,90,YN8#,9#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-24010

LN8#,9#,RN125,8#,90,YN8#,9#

 1
47275-24010

LN85,RN85,YN85

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-32010

LN8#,90,RN125,8#,90,YN8#,92

 1
47299-24010

RN85

 1
Common parts
90149-40006
90179-08146
90179-10065
