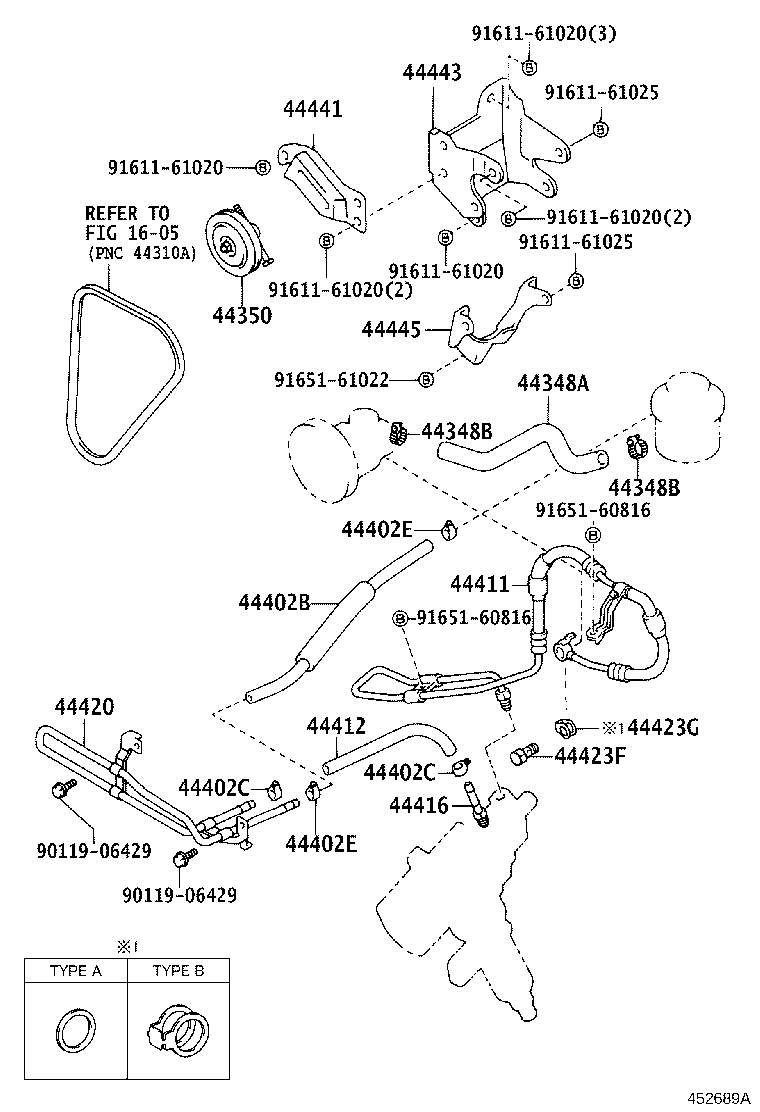

RN85L-TRMRE3 (1997)
Toyota Hilux 2wd
(8808-9909)RN8#,90..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-35100 |
RN90;RN125,8#..V |
1 | ||
| 44348-35110 |
LN85..LHD..TW1..CBU;LN81,85,86..LHD..(TH,V) |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
RN90;RN125,8#..V;LN85..LHD..TW1..CBU |
2 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
RN90;RN125,8#..V;LN85..LHD..TW1..CBU |
2 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-35010 |
RN90;RN125,8#..V;LN85..LHD..TW1..CBU |
1 | ||
| 44402B - HOSE, POWER STEERING OIL COOLER OUTLET | ||||
| 90447-18039 |
RN85..EFI;RN125,8#,90..V |
1 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
RN125,8#..V |
2 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
RN125,8#..V |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
RN125,8#..V |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
RN125,8#..V |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-35250 |
RN85..EFI;RN8#,90..V |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 90445-18138 |
RN125,8#..V |
1 | ||
| 90445-18105 |
LN85..LHD..TW1..CBU;LN81,85,86..LHD..(TH,V) |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35070 |
LN81,86,RN8#..V;LN85..LHD..TW1..CBU |
1 | ||
| 44420 - COOLER ASSY, OIL | ||||
| 44420-35040 |
RN125,8#..V |
1 | ||
| 44423F - BOLT, UNION | ||||
| 90401-16008 |
RN90;RN8#..V |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16242 |
RN90;RN8#..V TYPE A:REFER ILLUST. |
2 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-20010 |
RN90;RN125,8#..V |
1 | ||
| 44441-35040 |
LN85..LHD..TW1..CBU;LN81,85,86..LHD..(TH,V) |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-35020 |
RN90;RN125,8#..V |
1 | ||
| 44443-35011 |
LN85..LHD..TW1..CBU;LN81,85,86..LHD..(TH,V) |
1 | ||
| 44445 - BRACKET, PUMP, LOWER | ||||
| 44445-35010 |
RN90;RN125,8#..V |
1 | ||
| Common parts | ||||
| 90119-06429 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91651-60816 | ||||
| 91651-61022 | ||||
| Linked diagrams | ||||
| 1605 | ||||

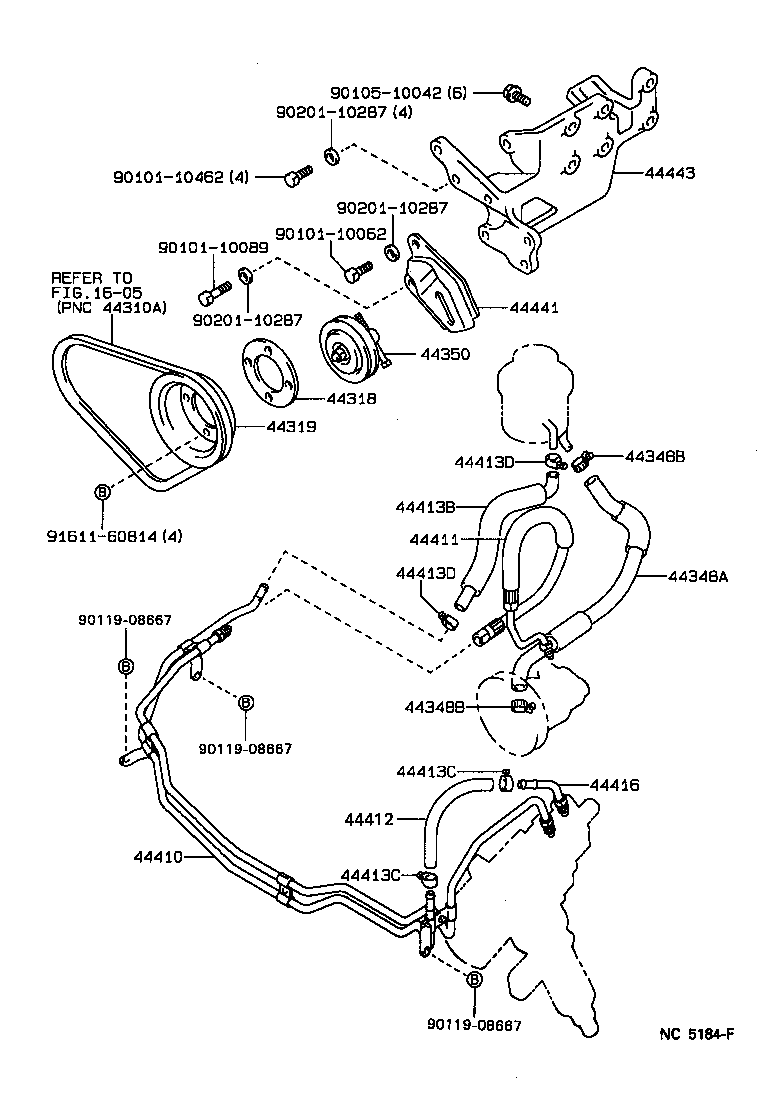

(8808-0106)LN81,85,86..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-35010 |
LN81,85,86,90..TH,V;LN85..LHD..TW1..CBU |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-35030 |
LN85..LHD..TW1..CBU;LN81,85,86..LHD..(TH,V) |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-35100 |
RN90;RN125,8#..V |
1 | ||
| 44348-35110 |
LN85..LHD..TW1..CBU;LN81,85,86..LHD..(TH,V) |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
RN90;RN125,8#..V;LN85..LHD..TW1..CBU |
2 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
RN90;RN125,8#..V;LN85..LHD..TW1..CBU |
2 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-35010 |
RN90;RN125,8#..V;LN85..LHD..TW1..CBU |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-35250 |
RN85..EFI;RN8#,90..V |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 90445-18138 |
RN125,8#..V |
1 | ||
| 90445-18105 |
LN85..LHD..TW1..CBU;LN81,85,86..LHD..(TH,V) |
1 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 90447-18040 |
LN85..LHD..TW1..CBU;LN81,85,86..LHD..(TH,V) |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35070 |
LN81,86,RN8#..V;LN85..LHD..TW1..CBU |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-20010 |
RN90;RN125,8#..V |
1 | ||
| 44441-35040 |
LN85..LHD..TW1..CBU;LN81,85,86..LHD..(TH,V) |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-35020 |
RN90;RN125,8#..V |
1 | ||
| 44443-35011 |
LN85..LHD..TW1..CBU;LN81,85,86..LHD..(TH,V) |
1 | ||
| Common parts | ||||
| 90101-10062 | ||||
| 90101-10089 | ||||
| 90101-10462 | ||||
| 90105-10042 | ||||
| 90119-08667 | ||||
| 90201-10287 | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 1605 | ||||
