RN85L-TRMRE3 (1997)
Toyota Hilux 2wd

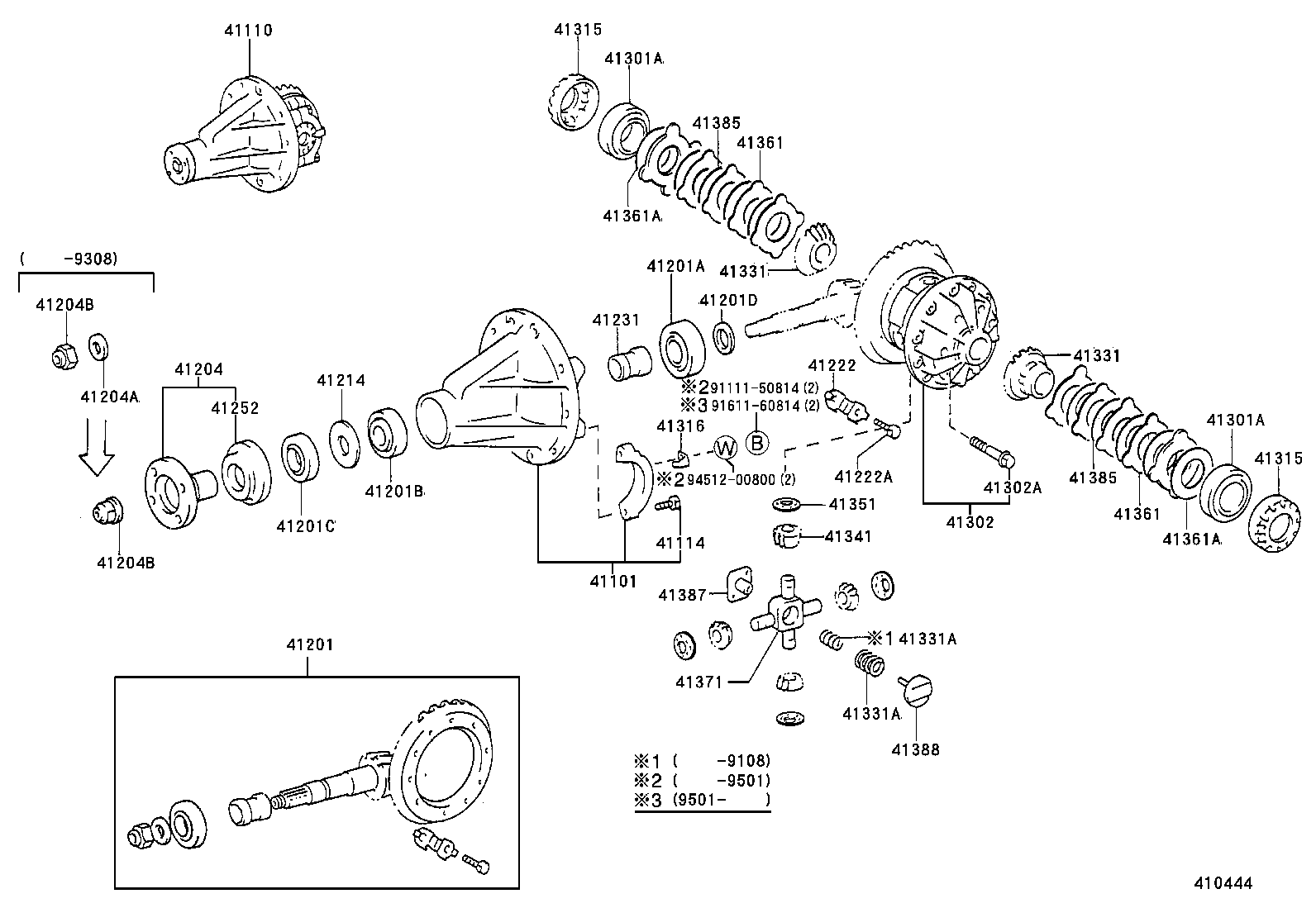

ILLUST NO. 1 OF 2(8808- )LN8#,9#,RN125,8#,90,YN8#,9#
LIMITED SLIP DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35030 |
YN86..T1;LN85..MTM;LN85..4FC..GEN;YN86..TW1..DLX;LN80,90,RN8#,90,YN80,81,85,87,92 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35311 |
YN80,85;LN85..4FC..GEN *FGR=41:9=4.555,W(LSD) |
1 | ||
| 41110-35221 |
YN80,85;LN85..4FC..GEN *FGR=41:9=4.555 |
1 | ||
| 41110-35430 |
LN8#,90,RN85,90..MTM..(ARL,GEN) *FGR=41:10=4.100,W(LSD) |
1 | ||
| 41110-35201 |
LN8#,90,RN8#,90..MTM *FGR=41:10=4.100 |
1 | ||
| 41110-35222 |
LN90..4FC;RN85..EFI *FGR=41:9=4.555 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39676 |
LN8#,90,RN8#,90..MTM..(ARL,GEN,V) *FGR=41:10=4.100 |
1 | ||
| 41201-29526 |
YN87,92;RN85,90..4FC;YN86..TW1..5F;LN80,85,90,YN81,86..T1..(TH,V) *FGR=43:10=4.300 |
1 | ||
| 41201-29536 |
YN80,85,90;LN85..4FC..GEN *FGR=41:9=4.556 |
1 | ||
| 41201-29536 |
LN90..4FC;RN85..EFI *FGR=41:9=4.556 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35044 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38035 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35498 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=1.73 |
1 | ||
| 90201-35497 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=1.70 |
1 | ||
| 90201-35500 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=1.79 |
1 | ||
| 90201-35507 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=2.00 |
1 | ||
| 90201-35509 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=2.06 |
1 | ||
| 90201-35504 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=1.91 |
1 | ||
| 90201-35505 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=1.94 |
1 | ||
| 90201-35511 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=2.12 |
1 | ||
| 90201-35502 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=1.85 |
1 | ||
| 90201-35513 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=2.18 |
1 | ||
| 90201-35503 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=1.88 |
1 | ||
| 90201-35510 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=2.09 |
1 | ||
| 90201-35499 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=1.76 |
1 | ||
| 90201-35506 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=1.97 |
1 | ||
| 90201-35514 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=2.21 |
1 | ||
| 90201-35508 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=2.03 |
1 | ||
| 90201-35512 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=2.15 |
1 | ||
| 90201-35516 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35501 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=1.82 |
1 | ||
| 90201-35515 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35517 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35518 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 OD=47,T=2.33,MARK 04 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35040 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-40011 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
2 | ||
| 90368-50024 |
LN86,RN85..RHD;RN85..SR5..GEN;LN80,85,9#,RN90,YN80,85,86,87,9#..ARL,GEN,TH W(LSD) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
2 | ||
| 90368-50024 |
LN86,RN85..RHD;RN85..SR5..GEN;LN80,85,9#,RN90,YN80,85,86,87,9#..ARL,GEN,TH W(LSD) |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-40020 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
1 | ||
| 41302-35010 |
RN85..RHD;RN85..SR5..GEN;LN80,85,86,90,RN90,YN80,85,87,9#..ARL,GEN,TH W(LSD) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10084 |
RN85..RHD;LN80,85,86,90,RN90,YN80,85,87,9#..ARL,GEN,TH |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
2 | ||
| 41331-35030 |
LN86,RN85..RHD;RN85..SR5..GEN;LN80,85,9#,RN90,YN80,85,86,87,9#..ARL,GEN,TH W(LSD) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
2 | ||
| 41331-35030 |
LN86,RN85..RHD;RN85..SR5..GEN;LN80,85,9#,RN90,YN80,85,86,87,9#..ARL,GEN,TH W(LSD) |
2 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-35008 |
LN80,85,90,RN85,90,YN80,85,87,92..ARL,GEN,TH INNER |
1 | ||
| 90501-75001 |
LN80,85,90,RN85,90,YN80,85,87,92..ARL,GEN,TH OUTER |
1 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-35008 |
LN80,85,90,RN85,90,YN80,85,87,92..ARL,GEN,TH INNER |
1 | ||
| 90501-75001 |
LN80,85,90,RN85,90,YN80,85,87,92..ARL,GEN,TH OUTER |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
RN85..RHD;LN80,85,86,90,RN90,YN80,85,87,9#..ARL,GEN,TH W(LSD) |
4 | ||
| 41341-35020 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 |
2 | ||
| 41351-30060 |
LN86,RN85..RHD;RN85..SR5..GEN;LN80,85,9#,RN90,YN80,85,86,87,9#..ARL,GEN,TH W(LSD) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41363-40021 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 T=1.8 |
2 | ||
| 41362-40021 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 T=1.7 |
2 | ||
| 41361-35020 |
LN80,85,90,RN85,90,YN80,85,87,92..ARL,GEN,TH T=1.8,W(LSD) |
10 | ||
| 41361-40021 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 T=1.6 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41363-40021 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 T=1.8 |
2 | ||
| 41362-40021 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 T=1.7 |
2 | ||
| 41361-35020 |
LN80,85,90,RN85,90,YN80,85,87,92..ARL,GEN,TH T=1.8,W(LSD) |
10 | ||
| 41361-40021 |
YN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92 T=1.6 |
2 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50001 |
LN86,RN85..RHD;LN90,RN85..5F..(DLX,SR5)..(GEN,TH);LN80,85,91,RN90,YN80,85,87,9#..ARL,GEN,TH T=0.15 |
1 | ||
| 90564-50003 |
LN86,RN85..RHD;LN90,RN85..5F..(DLX,SR5)..(GEN,TH);LN80,85,91,RN90,YN80,85,87,9#..ARL,GEN,TH T=0.25 |
1 | ||
| 90564-50005 |
LN86,RN85..RHD;LN90,RN85..5F..(DLX,SR5)..(GEN,TH);LN80,85,91,RN90,YN80,85,87,9#..ARL,GEN,TH T=0.35 |
1 | ||
| 90564-50004 |
LN86,RN85..RHD;LN90,RN85..5F..(DLX,SR5)..(GEN,TH);LN80,85,91,RN90,YN80,85,87,9#..ARL,GEN,TH T=0.30 |
1 | ||
| 90564-50002 |
LN86,RN85..RHD;LN90,RN85..5F..(DLX,SR5)..(GEN,TH);LN80,85,91,RN90,YN80,85,87,9#..ARL,GEN,TH T=0.20 |
1 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50001 |
LN86,RN85..RHD;LN90,RN85..5F..(DLX,SR5)..(GEN,TH);LN80,85,91,RN90,YN80,85,87,9#..ARL,GEN,TH T=0.15 |
1 | ||
| 90564-50003 |
LN86,RN85..RHD;LN90,RN85..5F..(DLX,SR5)..(GEN,TH);LN80,85,91,RN90,YN80,85,87,9#..ARL,GEN,TH T=0.25 |
1 | ||
| 90564-50005 |
LN86,RN85..RHD;LN90,RN85..5F..(DLX,SR5)..(GEN,TH);LN80,85,91,RN90,YN80,85,87,9#..ARL,GEN,TH T=0.35 |
1 | ||
| 90564-50004 |
LN86,RN85..RHD;LN90,RN85..5F..(DLX,SR5)..(GEN,TH);LN80,85,91,RN90,YN80,85,87,9#..ARL,GEN,TH T=0.30 |
1 | ||
| 90564-50002 |
LN86,RN85..RHD;LN90,RN85..5F..(DLX,SR5)..(GEN,TH);LN80,85,91,RN90,YN80,85,87,9#..ARL,GEN,TH T=0.20 |
1 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41306-35010 |
RN85..RHD;RN85..SR5..GEN;LN80,85,86,90,RN90,YN80,85,87,9#..ARL,GEN,TH |
1 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-35010 |
LN80,85,90,RN85,90,YN80,85,87,92..ARL,GEN,TH |
8 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-35010 |
LN80,85,90,RN85,90,YN80,85,87,92..ARL,GEN,TH |
8 | ||
| 41387 - RETAINER, SPRING, RH | ||||
| 41387-35010 |
RN85..RHD;RN85..SR5..GEN;LN80,85,86,90,RN90,YN80,85,87,9#..ARL,GEN,TH |
1 | ||
| 41388 - RETAINER, SPRING, LH | ||||
| 41388-35010 |
RN85..RHD;RN85..SR5..GEN;LN80,85,86,90,RN90,YN80,85,87,9#..ARL,GEN,TH |
1 | ||
| Common parts | ||||
| 91111-50814 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||

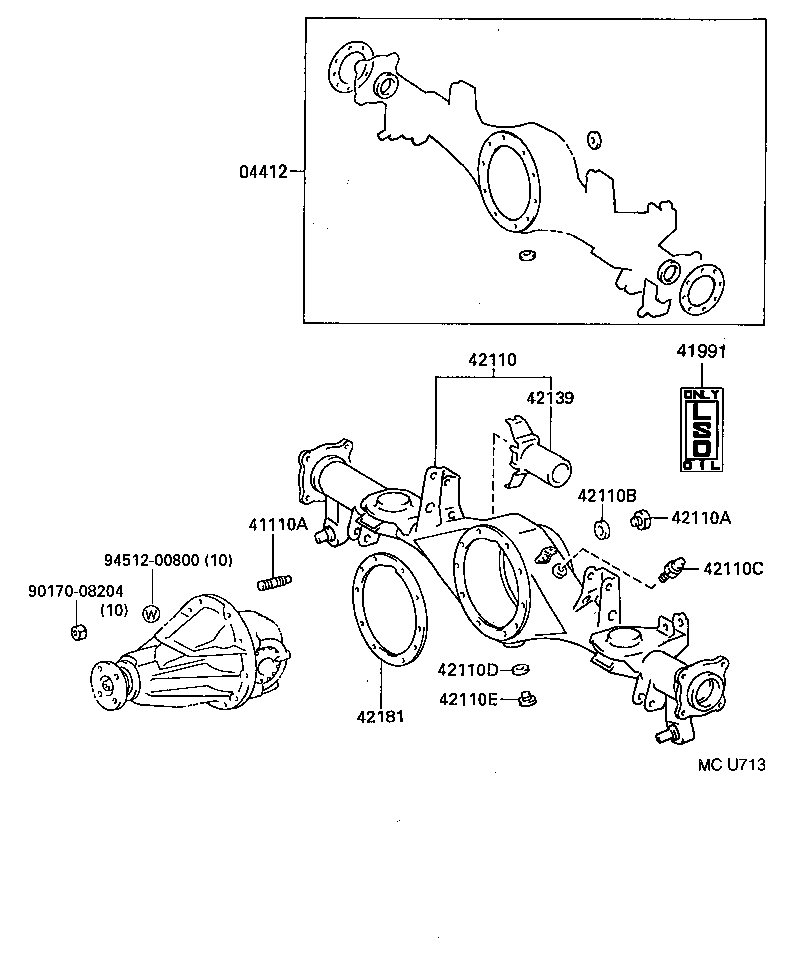

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-35070 |
LN8#,90,RN8#,90,YN8#,92 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
LN8#,90,RN8#,90,YN8#,92 S=12 & 15,L=34 |
8 | ||
| 90116-08233 |
LN85,YN87..ARL,GEN;LN80,90,RN125,8#,90,YN80,81,85,86,92 S=14 & 14,L=42 |
2 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-60010 |
LN80,85,90,RN85,90,YN80,85,87,92..ARL,GEN,TH |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-35400 |
LN85,YN87..ARL,GEN;LN80,90,RN8#,90,YN80,81,85,86,92 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
LN85,YN87..ARL,GEN;LN80,90,RN8#,90,YN80,81,85,86,92 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
LN85,YN87..ARL,GEN;LN80,90,RN125,8#,90,YN80,81,85,86,92 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
LN85,YN87..ARL,GEN;LN80,90,RN125,8#,90,YN80,81,85,86,92 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
LN85,YN87..ARL,GEN;LN80,90,RN125,8#,90,YN80,81,85,86,92 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
LN85,YN87..ARL,GEN;LN80,90,RN125,8#,90,YN80,81,85,86,92 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-35020 |
LN85,YN87..ARL,GEN;LN80,90,RN8#,90,YN80,81,85,86,92 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
LN85,YN87..ARL,GEN;LN80,90,RN125,8#,90,YN80,81,85,86,92 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
