RN85L-TRMRE3 (1997)

Toyota Hilux 2wd

Production Sep 1997 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )MTM

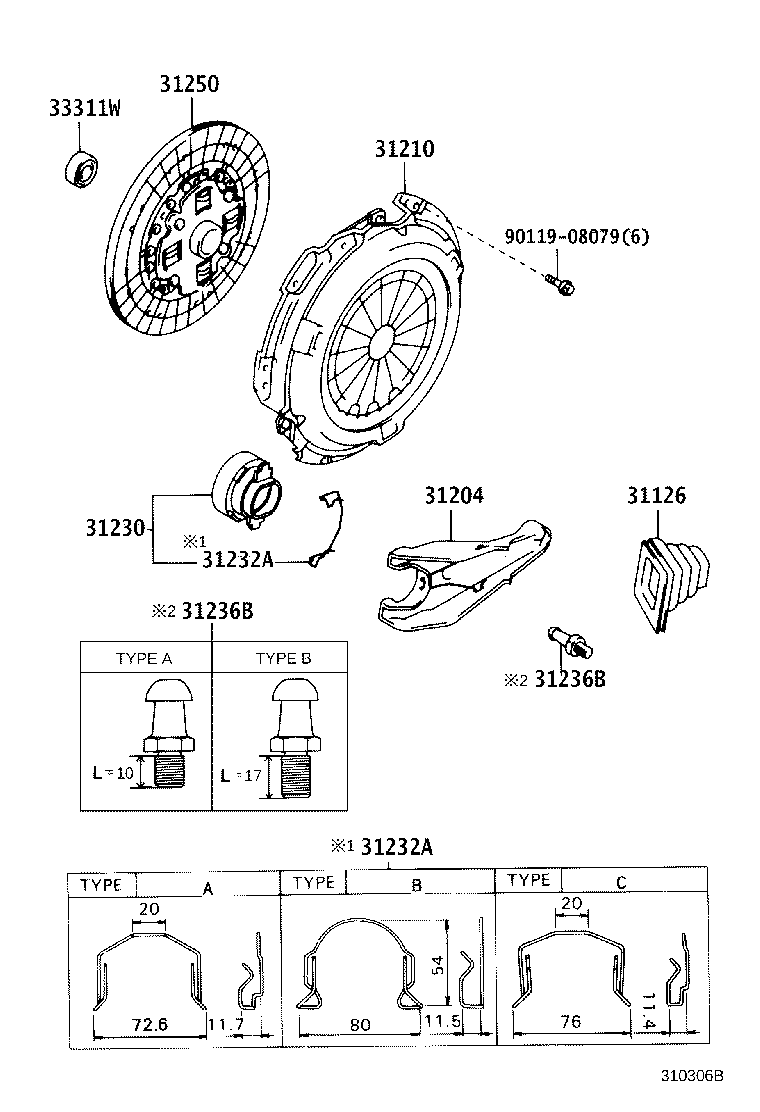

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31236B 31250 33311W 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060

YN80..4F;YN85..4F..TH;YN85..ARL,GEN;RN125,8#,90,YN81,86,87,92..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-20071

YN80..4F;YN85..4F..TH;YN85..ARL,GEN;RN125,8#,90,YN81,86,87,92..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-35110

RN125,8#,90..MTM

 1
31210-35090

LN80,85,90,YN81,86..MTM

 1
31210-35080

YN80,85

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35070

LN80,85,90,RN125,8#,90..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

YN80..4F;YN85..4F..TH;YN85..ARL,GEN;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

YN80..4F;YN85..4F..TH;YN85..ARL,GEN;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31236B - SUPPORT, RELEASE FORK
31236-30060

YN80..4F;YN85..4F..TH;YN85..ARL,GEN;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM

 1
31236B - SUPPORT, RELEASE FORK
31236-30060

YN80..4F;YN85..4F..TH;YN85..ARL,GEN;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-35200

LN80,85,90..MTM

 1
31250-35370

RN85

 1
31250-35180

RN8#,90..MTM

 1
31250-35371

RN85

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

LN8#,9#,RN125,8#,90,YN8#,9#..MTM

 1
Common parts
90119-08079
