RN85L-TRMRE3 (1997)

Toyota Hilux 2wd

Production Sep 1997 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22R

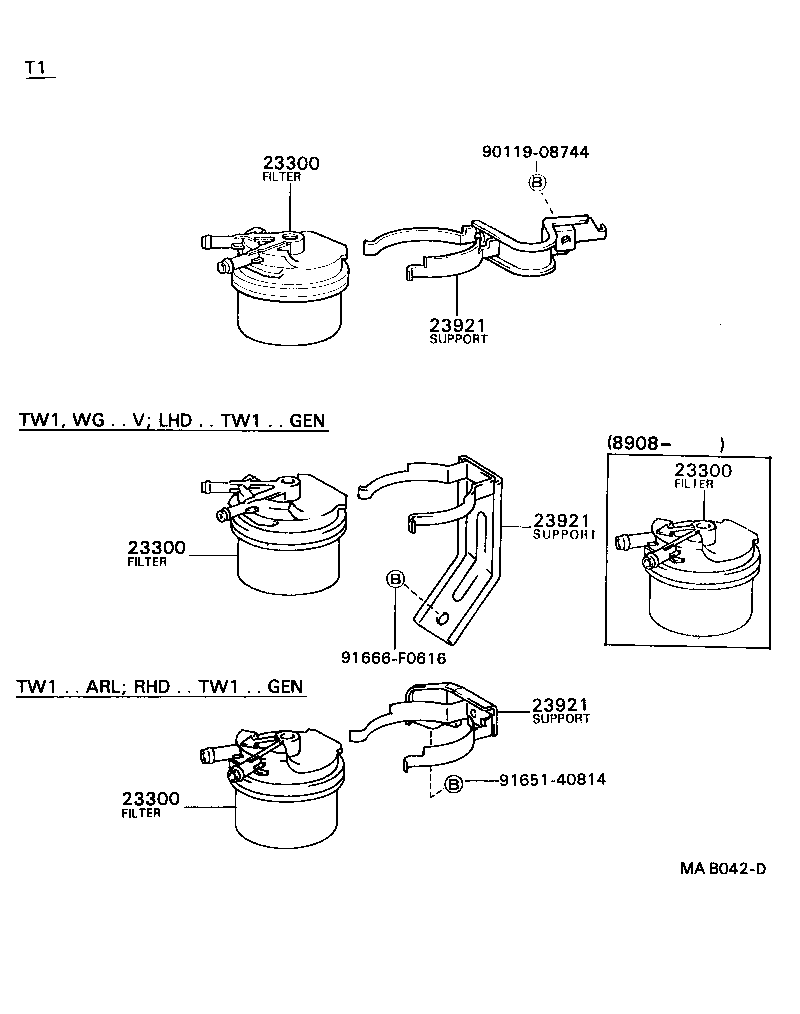

Click highlighted areas on diagram

diagram 23300 23300 23300 23300 23921 23921 23921 9011908744 9165140814 91666F0616
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-34100

22R..RN80,90;22R..RN85..RHD;22R..RN85..LHD..T1

 1
23300 - FILTER ASSY, FUEL
23300-34100

22R..RN80,90;22R..RN85..RHD;22R..RN85..LHD..T1

 1
23300 - FILTER ASSY, FUEL
23300-34100

22R..RN80,90;22R..RN85..RHD;22R..RN85..LHD..T1

 1
23300 - FILTER ASSY, FUEL
23300-34100

22R..RN80,90;22R..RN85..RHD;22R..RN85..LHD..T1

 1
23921 - SUPPORT, FUEL FILTER
23921-35060

22R..RN8#,90..T1

 1
23921 - SUPPORT, FUEL FILTER
23921-35060

22R..RN8#,90..T1

 1
23921 - SUPPORT, FUEL FILTER
23921-35060

22R..RN8#,90..T1

 1
Common parts
90119-08744
91651-40814
91666-F0616
