RN85L-TRMRE3 (1997)

Toyota Hilux 2wd

Production Sep 1997 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22R

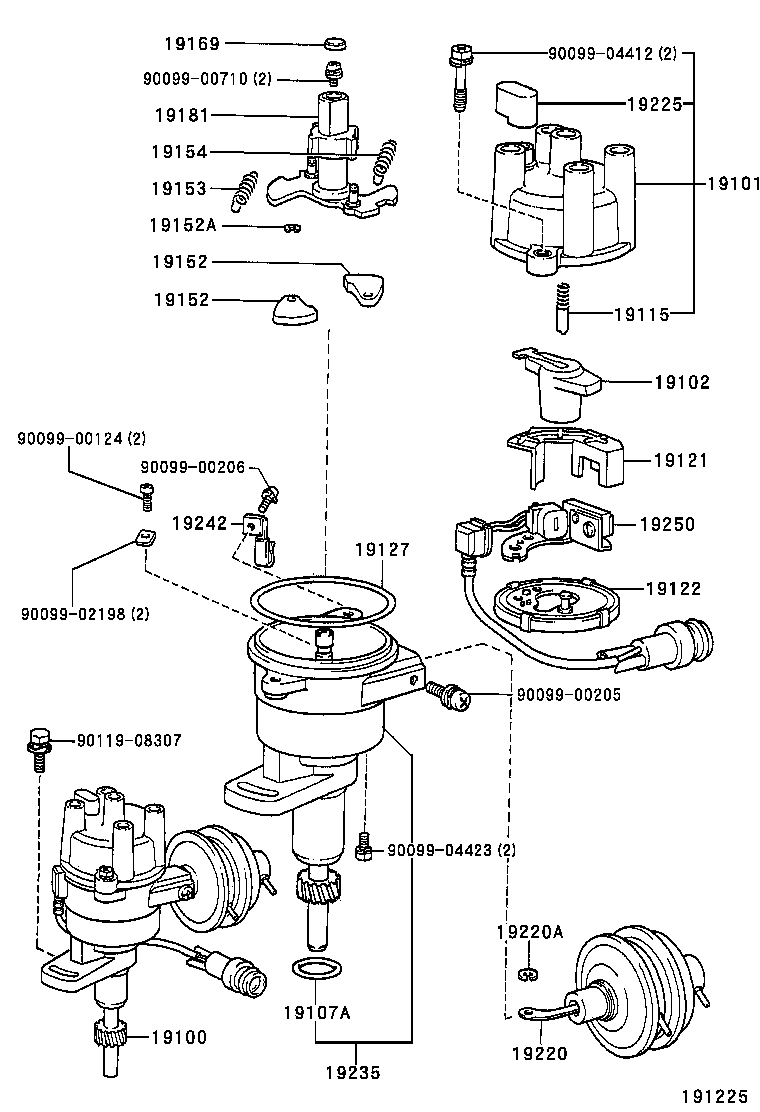

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19121 19122 19127 19152 19152 19152A 19153 19154 19169 19181 19220 19220A 19225 19235 19242 19250 9009900124 9009900205 9009900206 9009900710 9009902198 9009904412 9009904423 9011908307
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-35160

22R..RN125,8#..V

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-35140

22R..RN125,8#,90

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-16060

22R..RN125,8#,90

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

22R..RN125,8#,90

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

22R..RN125,8#,90

 1
19121 - COVER, DUST PROOF
19121-38210

22R..RN125,8#,90

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-88262

22R..RN125,8#,90

 1
19127 - PACKING, DUST PROOF
19127-15021

22R#..RN125,8#,90

 1
19152 - WEIGHT, GOVERNOR
19152-63010

22R..RN125,8#,90

 2
19152 - WEIGHT, GOVERNOR
19152-63010

22R..RN125,8#,90

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

22R..RN125,8#,90

 2
19153 - SPRING, GOVERNOR, A
19153-35160

22R..RN125,8#..V

 1
19154 - SPRING, GOVERNOR, B
19154-35160

22R..RN125,8#..V

 1
19169 - STOPPER, CAM GREASE
19169-63011

22R..RN125,8#,90

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-31170

22R..RN125,8#..V

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-35160

22R..RN125,8#..V

 1
19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
90099-07109

22R..RN125,8#,90

 1
19225 - CAP, RUBBER
19225-41140

22R..RN125,8#,90

 1
19235 - HOUSING, DISTRIBUTOR
19235-35160

22R..RN125,8#,90

 1
19242 - CLAMP, CORD
19242-37080

22R..RN125,8#,90

 1
19250 - GENERATOR ASSY, SIGNAL
19250-37080

22R..RN125,8#,90

 1
Common parts
90099-00124
90099-00205
90099-00206
90099-00710
90099-02198
90099-04412
90099-04423
90119-08307
