RN85L-TRMRE3 (1997)

Toyota Hilux 2wd

Production Sep 1997 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22R#

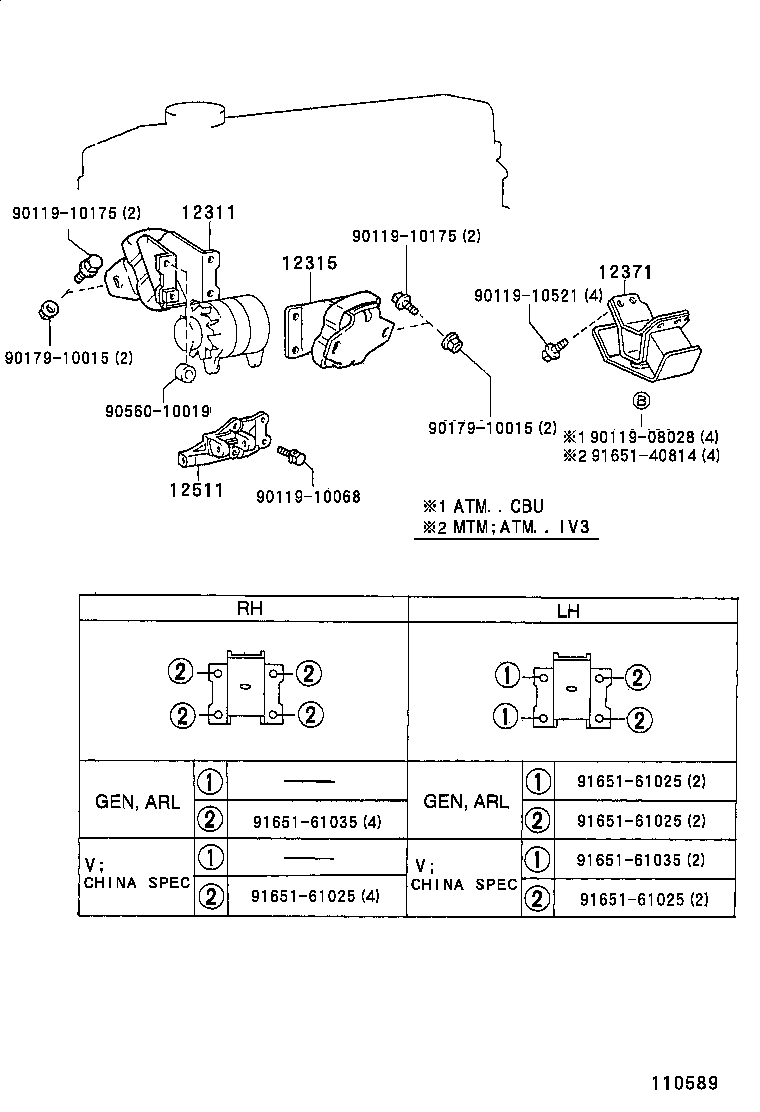

Click highlighted areas on diagram

diagram 12311 12315 12371 12511 9011908028 9011910068 9011910175 9011910175 9011910521 9017910015 9017910015 9056010019 9165140814 9165161025 9165161025 9165161025 9165161025 9165161035 9165161035
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-35121

22R..RN80,90;22R..RN85..MTM;22R..RN85..4FC..STD

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-35050

22R..RN80,90;22R..RN85..MTM;22R..RN85..4FC..STD

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

22R..RN125,8#,90

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-35010

22R..RN85..MTM;22R..RN125,80,90;22R..RN85..4FC..STD

 1
Common parts
90119-08028
90119-10068
90119-10175
90119-10521
90179-10015
90560-10019
91651-40814
91651-61025
91651-61035
