RN85L-PRMRS (1991)

Toyota Hilux 2wd

Production Aug 1991 - Sep 1999
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9401- )RN8#,90..LHD

Click highlighted areas on diagram

HOSE & PIPE

diagram 8837530280 88375A 88479 88479 88712 8871430290 8871435010 88716B 88716E 8871812280 8871812280 8871812280 8871832220 88720A 88720A 8889589102 9009914119 9009914120 9009914121 9011906674 91511B0630 91511B0630 9162640616 9165160614 9165160614 91651F0610 91651F0625 91652B0635 91652B0635 91652G0610
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

LN8#,90,RN80;RN85,90..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88720-35310

LN81,85,86..LHD

MAKER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-89162

LN81,85,86,90,RN8#,90,YN8#,92..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89181

RN8#,90..LHD

 1
88716-35250

RN8#,90..LHD

 1
88716-89160

LN81,85,86,90,YN8#,92..LHD

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-89131

LN81,85,86,90..LHD

 1
88720-35010

RN8#,90..LHD

SUCTION

 1
88720-35090

RN8#,90..LHD

DISCHARGE

 1
88720-35340

RN8#,90..LHD..CBR

DISCHARGE SIDE

 1
88720-35140

LN81,85,86..LHD

 1
88720-35230

RN8#,90..LHD..CBR

SUCTION SIDE

 1
88711-35290

RN85..TW1..V;RN8#,90..LHD..T1..CBR;RN85..LHD..TW1..STD..CBR

MAKER OPTION,DISCHARGE SIDE

 1
88712-35200

RN85..TW1..V;RN8#,90..LHD..T1;RN85..LHD..TW1..STD

MAKER OPTION,SUCTION SIDE

 1
88720-35230

RN80,90..V;RN85..LHD..(SR5,STD)..CBR

SUCTION

 1
88720-35340

RN80,90..V;RN85..LHD..(SR5,STD)..CBR

DISCHARGE

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-89131

LN81,85,86,90..LHD

 1
88720-35010

RN8#,90..LHD

SUCTION

 1
88720-35090

RN8#,90..LHD

DISCHARGE

 1
88720-35340

RN8#,90..LHD..CBR

DISCHARGE SIDE

 1
88720-35140

LN81,85,86..LHD

 1
88720-35230

RN8#,90..LHD..CBR

SUCTION SIDE

 1
88711-35290

RN85..TW1..V;RN8#,90..LHD..T1..CBR;RN85..LHD..TW1..STD..CBR

MAKER OPTION,DISCHARGE SIDE

 1
88712-35200

RN85..TW1..V;RN8#,90..LHD..T1;RN85..LHD..TW1..STD

MAKER OPTION,SUCTION SIDE

 1
88720-35230

RN80,90..V;RN85..LHD..(SR5,STD)..CBR

SUCTION

 1
88720-35340

RN80,90..V;RN85..LHD..(SR5,STD)..CBR

DISCHARGE

 1
Common parts
88375-30280
88714-30290
88714-35010
88718-12280
88718-32220
88895-89102
90099-14119
90099-14120
90099-14121
90119-06674
91511-B0630
91626-40616
91651-60614
91651-F0610
91651-F0625
91652-B0635
91652-G0610

ILLUST NO. 2 OF 2(8808-9401)RN8#,90..LHD

Click highlighted areas on diagram

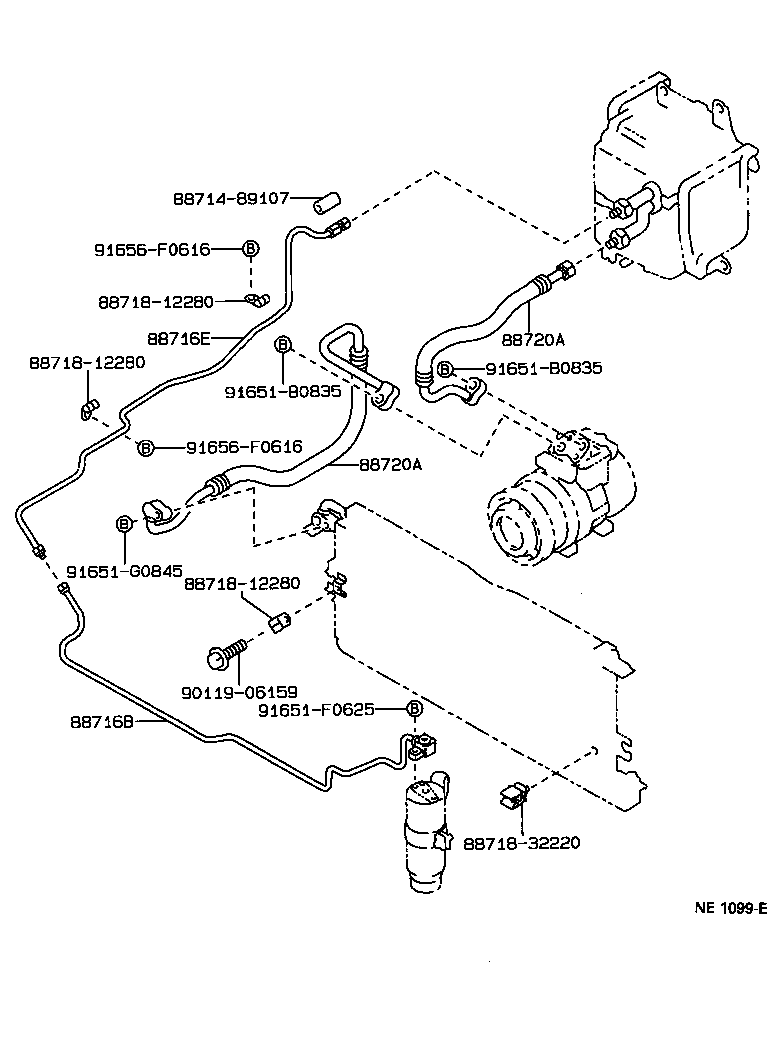

HOSE & PIPE

diagram 8871489107 88716B 88716E 8871812280 8871812280 8871812280 8871832220 88720A 88720A 9011906159 91651B0835 91651B0835 91651F0625 91651G0845 91656F0616 91656F0616
Part # Description Qty Price
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-89162

LN81,85,86,90,RN8#,90,YN8#,92..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89181

RN8#,90..LHD

 1
88716-35250

RN8#,90..LHD

 1
88716-89160

LN81,85,86,90,YN8#,92..LHD

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-89131

LN81,85,86,90..LHD

 1
88720-35010

RN8#,90..LHD

SUCTION

 1
88720-35090

RN8#,90..LHD

DISCHARGE

 1
88720-35340

RN8#,90..LHD..CBR

DISCHARGE SIDE

 1
88720-35140

LN81,85,86..LHD

 1
88720-35230

RN8#,90..LHD..CBR

SUCTION SIDE

 1
88711-35290

RN85..TW1..V;RN8#,90..LHD..T1..CBR;RN85..LHD..TW1..STD..CBR

MAKER OPTION,DISCHARGE SIDE

 1
88712-35200

RN85..TW1..V;RN8#,90..LHD..T1;RN85..LHD..TW1..STD

MAKER OPTION,SUCTION SIDE

 1
88720-35230

RN80,90..V;RN85..LHD..(SR5,STD)..CBR

SUCTION

 1
88720-35340

RN80,90..V;RN85..LHD..(SR5,STD)..CBR

DISCHARGE

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-89131

LN81,85,86,90..LHD

 1
88720-35010

RN8#,90..LHD

SUCTION

 1
88720-35090

RN8#,90..LHD

DISCHARGE

 1
88720-35340

RN8#,90..LHD..CBR

DISCHARGE SIDE

 1
88720-35140

LN81,85,86..LHD

 1
88720-35230

RN8#,90..LHD..CBR

SUCTION SIDE

 1
88711-35290

RN85..TW1..V;RN8#,90..LHD..T1..CBR;RN85..LHD..TW1..STD..CBR

MAKER OPTION,DISCHARGE SIDE

 1
88712-35200

RN85..TW1..V;RN8#,90..LHD..T1;RN85..LHD..TW1..STD

MAKER OPTION,SUCTION SIDE

 1
88720-35230

RN80,90..V;RN85..LHD..(SR5,STD)..CBR

SUCTION

 1
88720-35340

RN80,90..V;RN85..LHD..(SR5,STD)..CBR

DISCHARGE

 1
Common parts
88714-89107
88718-12280
88718-32220
90119-06159
91651-B0835
91651-F0625
91651-G0845
91656-F0616
