RN125L-GKMDSV (1989)

Toyota Hilux 2wd

Production Jul 1989 - Aug 1993
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8907-9308)RN125

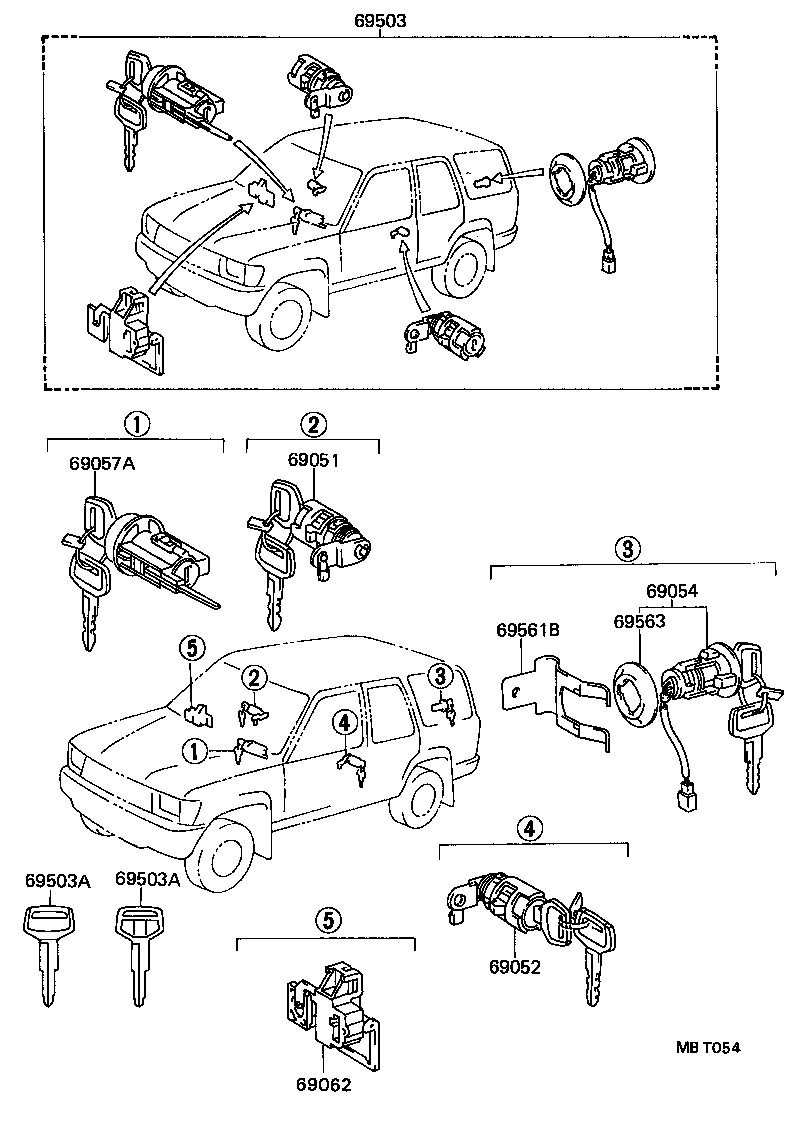

Click highlighted areas on diagram

diagram 69051 69052 69054 69057A 69062 69503 69503A 69503A 69561B 69563
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-35030

LN8#,90,RN125,8#,90,YN8#,92

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-35030

LN8#,90,RN125,8#,90,YN8#,92

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-35020

RN125

 1
69055-89103

RN125

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-89116

LN8#,90,RN125,8#,90,YN8#,92

 1
69057-35030

LN8#,90,RN125,8#,90,YN8#,92

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-89104

LN85,YN85..GEN,TH;LN85,RN85..TW1..(ARL,V);LN80,90,RN125,80,90,YN80,81,86,87,92

 1
69056-89104

LN85..TH;LN85..T1..GEN..IV3;LN85..LHD..TW1..5F;LN85..LHD..T1..5F..CBU;LN85..(4F,4FC)..GEN..CBU;RN85,YN85..STD..(GEN,TH,V);LN85,RN85..(DLX,SR5)..(ARL,V);LN80,81,86,90,RN125,80,90,YN80,81,86,87,92

 1
69056-35030

YN85..GEN,TH;LN86,RN85..TW1;LN86,RN85..LHD..T1;LN80,81,85,90,RN125,80,90,YN80,81,86,92

 1
69056-89104

LN85,YN85..GEN,TH;LN85,RN85..(DLX,SR5)..(ARL,V);LN80,81,86,90,RN125,80,90,YN80,81,86,87,92

 1
69503 - CYLINDER SET, LOCK
69005-89229

RN125

 1
69005-35160

RN125

 1
69503A - KEY, BLANK
90999-00130

LN8#,90,RN125,8#,90,YN8#,92

MASTER KEY

 1
90999-00132

LN8#,9#,RN125,8#,90,YN8#,9#

MASTER KEY,W(*68)

 1
69503A - KEY, BLANK
90999-00130

LN8#,90,RN125,8#,90,YN8#,92

MASTER KEY

 1
90999-00132

LN8#,9#,RN125,8#,90,YN8#,9#

MASTER KEY,W(*68)

 1
69561B - RETAINER, BACK DOOR LOCK CYLINDER
69561-89101

RN125

 1
69563 - PAD, BACK DOOR LOCK CYLINDER
69563-32020

RN125

 1
69563-20010

RN125

 1
