LN86R-PRMDSQ (1991)

Toyota Hilux 2wd

Production Aug 1991 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

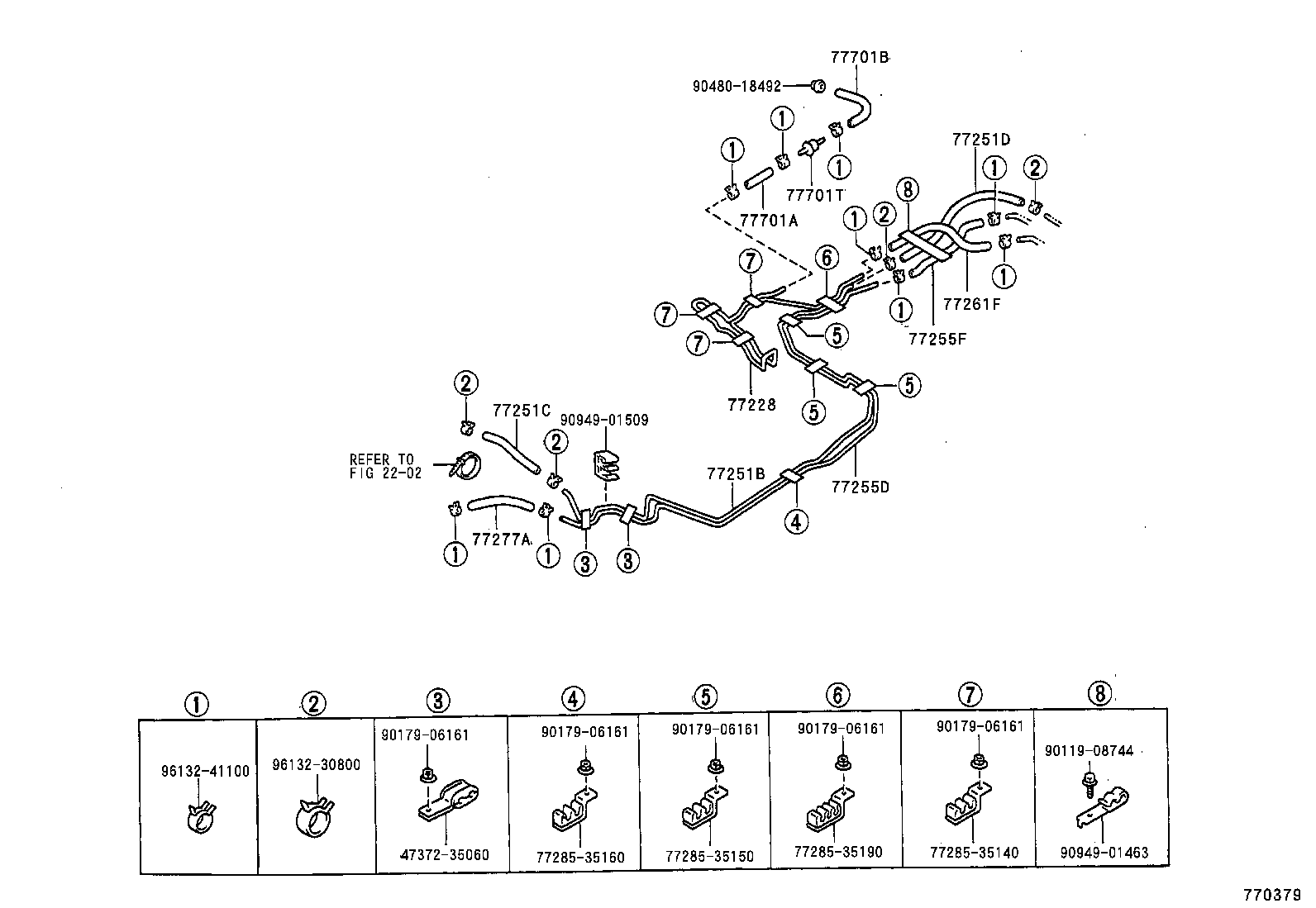

ILLUST NO. 2 OF 2(9412- )LN85,86..TW1

Click highlighted areas on diagram

diagram 2202 4737235060 77228 77251B 77251C 77251D 77255D 77255F 77261F 77277A 7728535140 7728535150 7728535160 7728535190 77701A 77701B 77701T 9011908744 9017906161 9017906161 9017906161 9017906161 9017906161 9048018492 9094901463 9094901509 9613230800 9613241100
Part # Description Qty Price
77228 - TUBE, FUEL TANK EVAPORATION VENT, NO.2
77228-35111

LN86..DLX..ARL

 1
77251B - TUBE, FUEL MAIN
77251-35730

LN85,86..TW1

 1
77251-35850

YN85,86,87..TW1;RN85..LHD..TW1..CBR

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-08020

LN8#..RHD

*H,L=200,ID=7.6

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06030

RN85,YN85,86,87..TW1

*H,L=240

 1
95333-06010

YN85..TH;LN85,86..ARL,GEN,V

*H,L=100

 1
95333-06030

RN85,YN85,86,92..DCB,XTR

*H,L=240

 1
77255D - TUBE, FUEL RETURN
77255-35610

LN85,86..TW1

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
90445-12225

RN85,YN85,86,87..TW1

L=610

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12110

LN8#,90

L=330

 1
77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE)
95333-06010

LN86..ARL

*H,L=70

 1
77701B - HOSE, FUEL, NO.2 (FOR BREATHER VALVE)
95333-06010

LN85,86..TW1

*H,L=100

 1
77249-35070

LN86..ARL

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10054

YN86..GEN;LN8#,9#,YN80,85,87,9#

 1
Common parts
47372-35060
77285-35140
77285-35150
77285-35160
77285-35190
90119-08744
90179-06161
90480-18492
90949-01463
90949-01509
96132-30800
96132-41100
Linked diagrams
2202
