LN86R-PRMDSQ (1991)

Toyota Hilux 2wd

Production Aug 1991 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

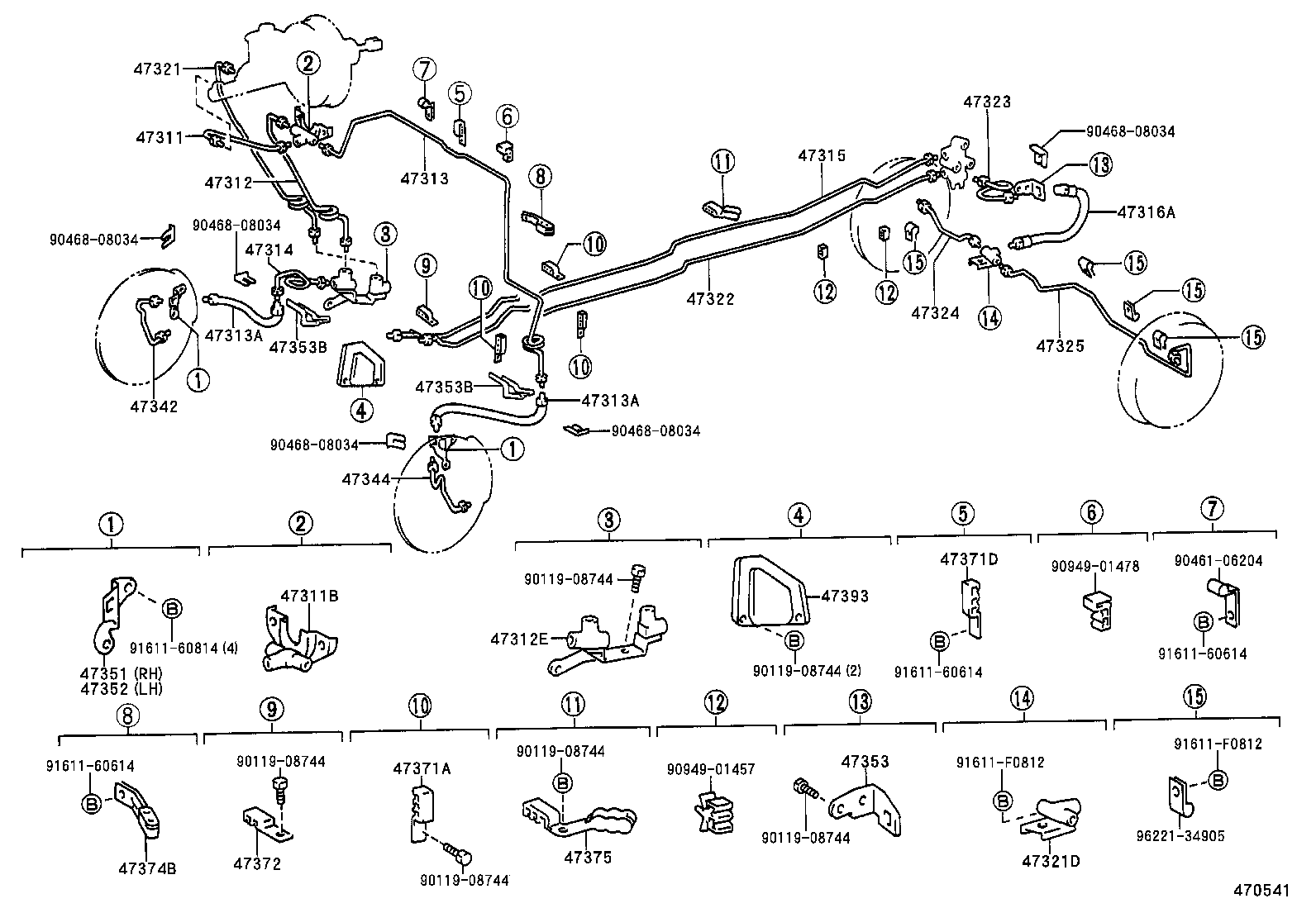

ILLUST NO. 1 OF 2(8808-9708)LN85,RN85,90,YN85..ARL ; (8808-0106)LN86..ARL,GEN

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47314 47315 47316A 47321 47321D 47322 47323 47324 47325 47342 47344 47351 47352 47353 47353B 47353B 47371A 47371D 47372 47374B 47375 47393 9011908744 9011908744 9011908744 9011908744 9011908744 9011908744 9046106204 9046808034 9046808034 9046808034 9046808034 9046808034 9094901457 9094901478 9161160614 9161160614 9161160614 9161160814 91611F0812 91611F0812 9622134905
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10111

YN80,85..GEN;YN87,92..LHD;LN8#,9#,RN125,8#,90,YN81,86

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D150

LN85,86..ARL

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90415-10006

LN86..ARL,GEN;LN85,RN85,90,YN85..ARL

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35640

YN85..RHD..GEN;LN80,85,86..RHD..(ARL,GEN)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02581

LN8#,90,RN8#,90,YN8#,9#

 2
90947-02581

YN80,85..ARL,GEN;LN8#,90,RN8#,90,YN81,86,92

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02581

LN8#,90,RN8#,90,YN8#,9#

 2
90947-02581

YN80,85..ARL,GEN;LN8#,90,RN8#,90,YN81,86,92

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-35170

LN86..ARL,GEN;LN85,RN85,90,YN85..ARL

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35210

LN85,86,RN85..TW1..DLX..(ARL,GEN)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34206

LN90,RN85,YN87,92..ARL,GEN,V;LN81,85,86,RN80,90,YN81,85,86..ARL,V

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35480

LN80,85,86..RHD..(ARL,GEN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10198

LN8#,90,RN8#,90,YN8#,92..ARL,GEN,V

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35560

LN85..DLX;LN86,RN85,YN86,87..TW1

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35100

LN8#,9#,RN8#,90,YN8#,9#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35230

RN90..V;LN8#,90,RN8#,YN8#,9#

 1
47324-35200

RN90..V;LN8#,90,RN8#,YN8#,9#

 1
47324-35230

RN90..V;RN85,YN92;LN8#,90,RN80,YN8#,90..ARL,TH,V

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35210

LN8#,90,RN8#,YN8#,92

 1
47325-35210

LN80,85,86,90,RN85,YN80,85,9#..ARL,GEN,TH

 1
47325-35250

LN80,85,86,90,RN85,YN80,85,9#..ARL,GEN,TH

 1
47325-35250

RN85,YN92..ARL,GEN;LN80,85,86,90,YN80,85,90..ARL,TH

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35110

LN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,90,YN80,81,85,90..ARL,TH,V

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35110

LN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,90,YN80,81,85,90..ARL,TH,V

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35170

RN90..V;LN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,YN80,81,85,90..ARL,TH,V

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35190

RN90..V;LN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,YN80,81,85,90..ARL,TH,V

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-35200

LN8#,9#,RN8#,90,YN8#,9#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-35070

LN8#,90,RN8#,90,YN8#,92

LH

 1
47353-35070

YN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92

LH

 1
47353-35060

LN8#,90,RN8#,90,YN8#,92

RH

 1
47353-35060

YN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92

RH

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-35070

LN8#,90,RN8#,90,YN8#,92

LH

 1
47353-35070

YN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92

LH

 1
47353-35060

LN8#,90,RN8#,90,YN8#,92

RH

 1
47353-35060

YN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92

RH

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35070

RN85,YN85,86,87;LN8#,90,RN80,YN80,81..T1

 3
47371-35080

RN85..EFI;LN85,86..TW1

 3
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080

LN8#,90,RN125,8#,90,YN8#,9#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35030

LN8#,90,RN125,8#,90,YN8#,9#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47374-35020

LN80,85,86,90,RN85,90,YN80,85,87,9#..RHD

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47375-35060

LN85,86..TW1

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35051

LN8#,9#

 1
Common parts
90119-08744
90461-06204
90468-08034
90949-01457
90949-01478
91611-60614
91611-60814
91611-F0812
96221-34905
