LN86R-PRMDSQ (1991)

Toyota Hilux 2wd

Production Aug 1991 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9906)RHD

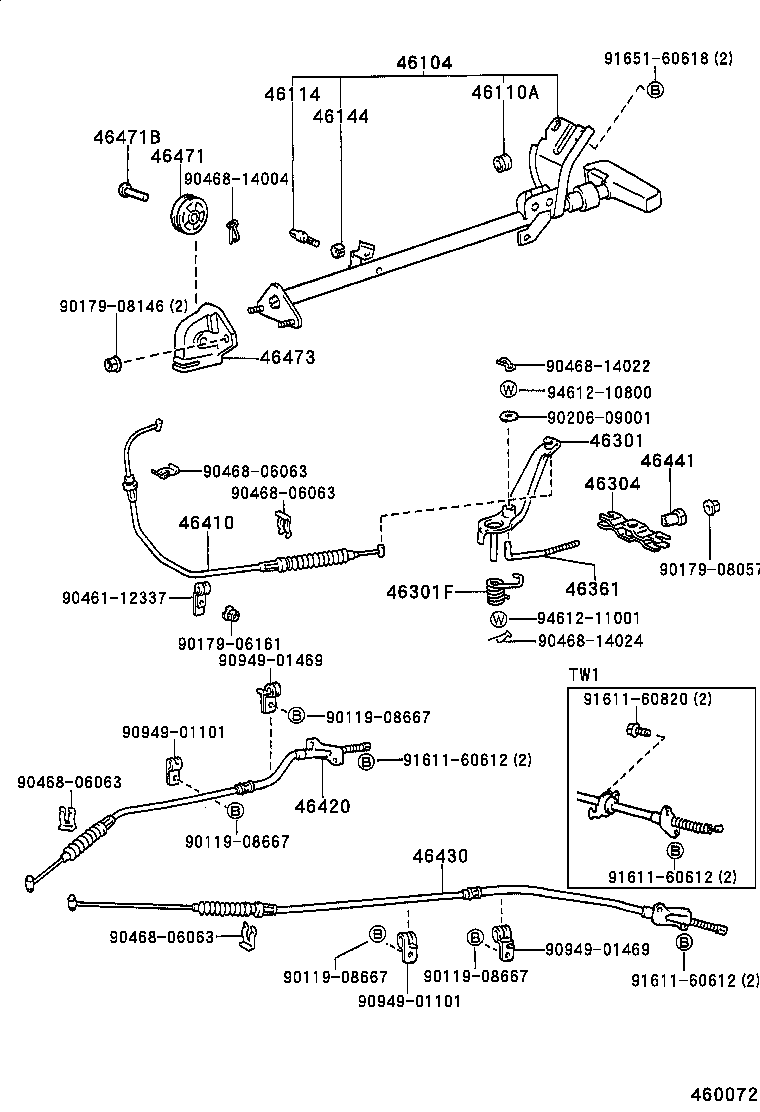

Click highlighted areas on diagram

diagram 46104 46110A 46114 46144 46301 46301F 46304 46361 46410 46420 46430 46441 46471 46471B 46473 9011908667 9011908667 9011908667 9011908667 9017906161 9017908057 9017908146 9020609001 9046112337 9046806063 9046806063 9046806063 9046806063 9046814004 9046814022 9046814024 9094901101 9094901101 9094901469 9094901469 9161160612 9161160612 9161160612 9161160820 9165160618 9461210800 9461211001
Part # Description Qty Price
46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46110-35230

LN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-11195

LN8#,9#,RN125,8#,90,YN8#,9#

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

LN8#,9#,RN125,8#,90,YN8#,9#

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-30020

LN8#,9#,RN125,8#,90,YN8#,9#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-35160

LN80,85,86,90,RN85,90,YN80,85,87,9#..RHD

 1
46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)
90508-32008

LN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-22020

LN8#,9#,RN8#,90,YN8#,9#

 1
46361 - ROD, PARKING BRAKE PULL
46361-35070

LN8#,9#,RN8#,90,YN8#,9#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-35420

LN80,85,86,9#..RHD

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-35480

LN85,86,RN85,YN85,86,87..TW1

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-35390

LN85,86,RN85,YN85,86,87..TW1

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35010

LN8#,9#,RN8#,90,YN8#,9#

 1
46471 - PULLEY, WIRE
46471-20010

LN8#,9#,RN125,8#,90,YN8#,9#

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08070

LN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD

 1
46473 - BRACKET, PULLEY
46473-35020

LN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD

 1
Common parts
90119-08667
90179-06161
90179-08057
90179-08146
90206-09001
90461-12337
90468-06063
90468-14004
90468-14022
90468-14024
90949-01101
90949-01469
91611-60612
91611-60820
91651-60618
94612-10800
94612-11001
