LN86R-PRMDSQ (1991)

Toyota Hilux 2wd

Production Aug 1991 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108-9408)5F

Click highlighted areas on diagram

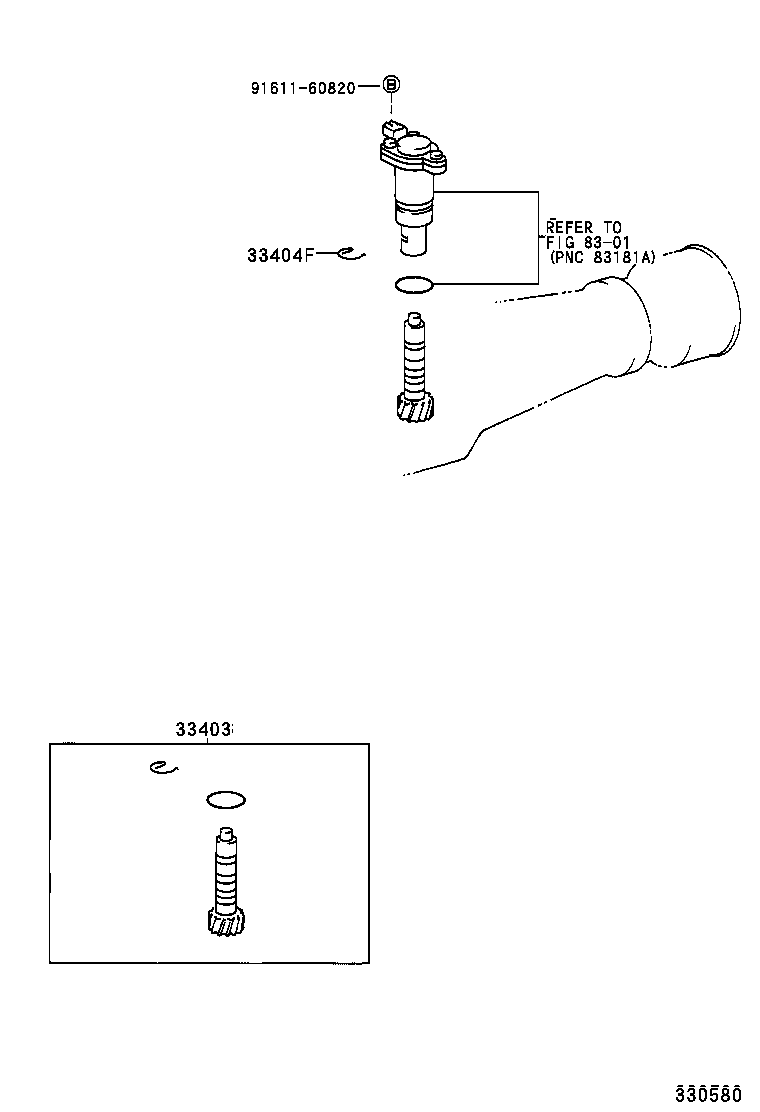

diagram 33403 33404F 8301 9161160820
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39025

LN85..5F..ARL;RN85,YN87..5F..(ARL,GEN,TH);LN90,RN90,YN81,86..MTM..(ARL,GEN,V)

N=19,MARK 19:6

 1
33403-39305

RN90,YN81,86..5F;LN86,RN85..5F..ARL

N=19,MARK 19:6

 1
33403-39305

RN85,90..5F..ARL;LN81,86,YN81,86..5F

N=19,MARK 19:6

 1
33403-39315

YN81,86

N=20,MARK 20:6,W(195R15 TIRE)

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

LN8#,9#,RN125,8#,90,YN8#,9#..MTM

 1
Common parts
91611-60820
Linked diagrams
8301
