LN86R-PRMDSQ (1991)
Toyota Hilux 2wd
(8808-0106)LN8#,9#..MTM
G5#

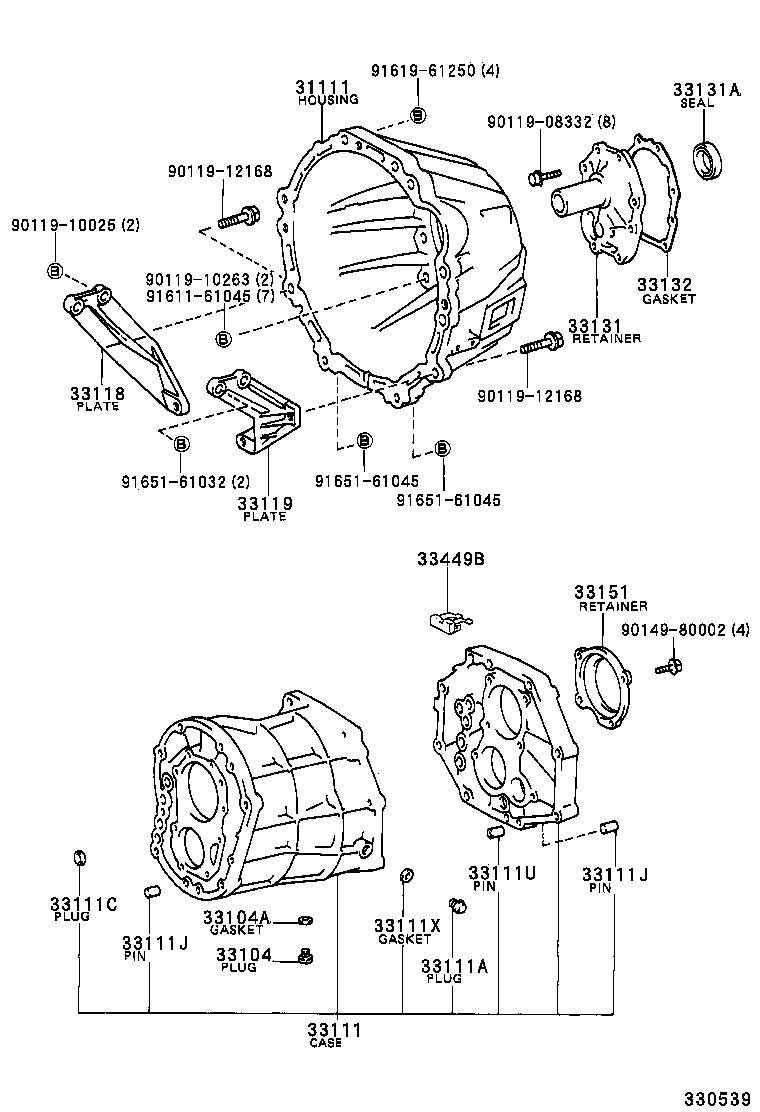

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-22112 |
LN8#,90..MTM |
1 | ||
| 31111-30180 |
YN81,86,87,92;YN85..5F..(ARL,GEN) |
1 | ||
| 31111-20171 |
RN125,8#,90..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
YN80..4F;YN85..4F..TH;YN85..ARL,GEN;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM |
1 | ||
| 90341-18057 |
LN8#,90,RN125,8#,90,YN8#,9#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
YN80..4F;YN85..4F..TH;YN85..ARL,GEN;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-35050 |
LN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH) |
1 | ||
| 33101-35050 |
RN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..MTM |
1 | ||
| 33101-35050 |
YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
YN80..4F;YN85..4F..TH;RN85,90,YN85..MTM..(ARL,GEN);LN8#,90,RN125,YN81,86,92..MTM |
1 | ||
| 90341-18006 |
RN85,90..5F..(ARL,GEN);LN8#,90,RN125,YN8#,9#..MTM |
1 | ||
| 90341-18006 |
LN8#,90,RN125,8#,90,YN8#,92..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH) OD=14 |
4 | ||
| 90331-14004 |
YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM OD=14 |
4 | ||
| 90331-14004 |
RN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..MTM OD=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
RN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..MTM L=16,OD=12 |
4 | ||
| 90250-12002 |
LN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH) L=16,OD=12 |
4 | ||
| 90250-12002 |
YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM L=16,OD=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
RN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..MTM L=16,OD=12 |
4 | ||
| 90250-12002 |
LN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH) L=16,OD=12 |
4 | ||
| 90250-12002 |
YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM L=16,OD=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM L=14,OD=15 |
2 | ||
| 90253-15001 |
LN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH) L=14,OD=15 |
2 | ||
| 90253-15001 |
RN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..MTM L=14,OD=15 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
YN80..4F;YN85..4F..TH;YN85..ARL,GEN;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-22030 |
RN125,8#,90..MTM |
1 | ||
| 33118-25020 |
LN8#,9#..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-22022 |
RN125,8#,90..MTM |
1 | ||
| 33119-25020 |
LN8#,9#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-26020 |
LN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH) |
1 | ||
| 33131-26020 |
YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM |
1 | ||
| 33131-26020 |
RN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30014 |
YN80,85..5F;LN8#,90,RN125,8#,90,YN81,86,9#..MTM |
1 | ||
| 90311-30014 |
YN85..5F..(ARL,GEN);LN8#,90,RN125,8#,90,YN81,86,92..MTM |
1 | ||
| 90311-30010 |
YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM |
1 | ||
| 90311-30014 |
RN85,YN85..5F..(ARL,GEN);LN8#,90,RN125,90,YN81,86,92..MTM |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM |
1 | ||
| 33132-28010 |
RN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..MTM |
1 | ||
| 33132-28010 |
LN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH) |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35030 |
RN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..MTM |
1 | ||
| 33151-35030 |
YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM |
1 | ||
| 33151-35030 |
LN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH) |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-26010 |
RN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..MTM |
1 | ||
| 33449-26010 |
LN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH) |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10025 | ||||
| 90119-10263 | ||||
| 90119-12168 | ||||
| 90149-80002 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
| 91651-61032 | ||||
| 91651-61045 | ||||
