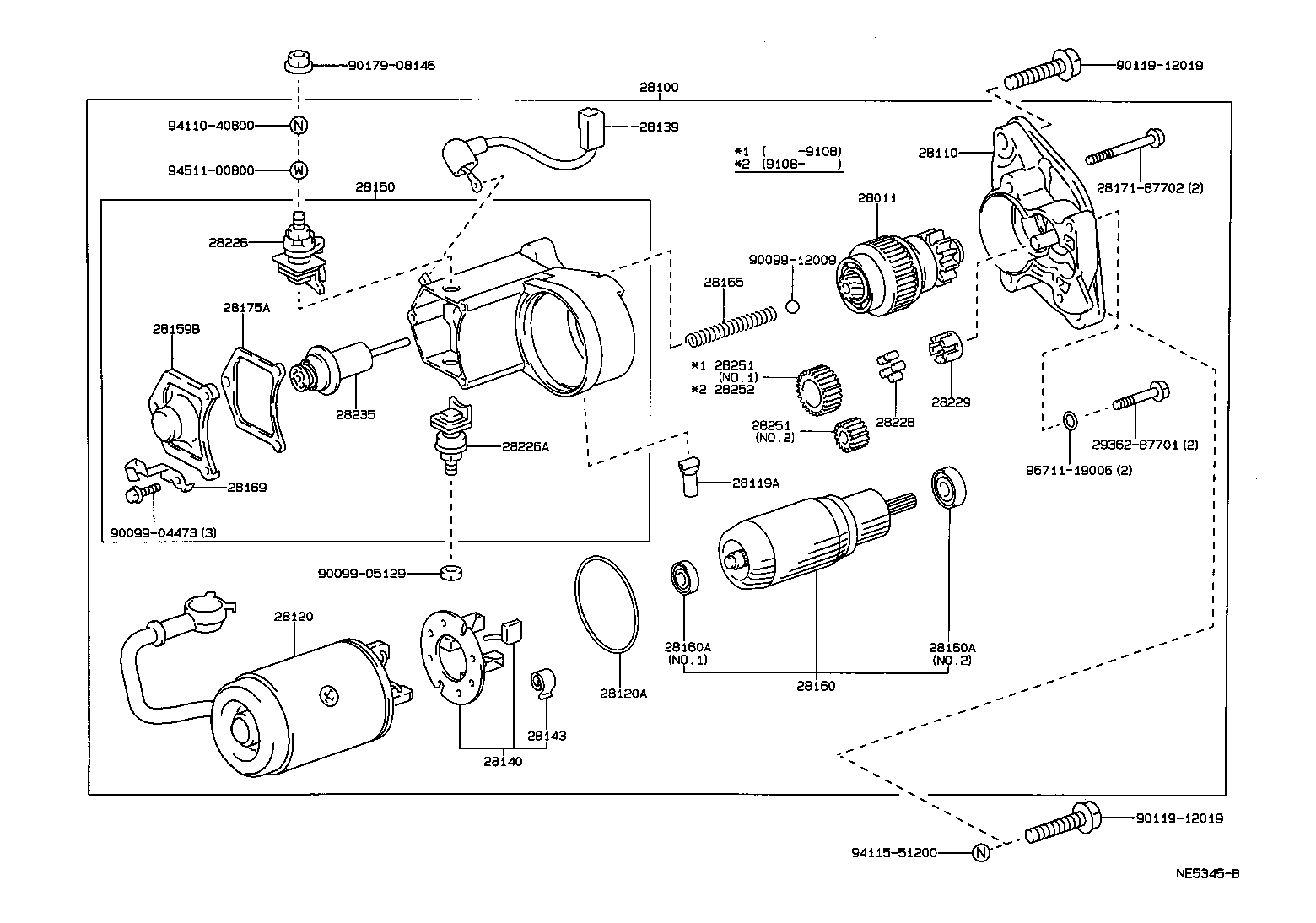

LN86R-PRMDSQ (1991)
Toyota Hilux 2wd
(9308- )2L,3L..MTM
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14058 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14058 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-54170 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
2L,3L..LN8#,90..MTM |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-54170 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10131 |
2L,3L..LN8#,90..MTM NO.2 |
1 | ||
| 28253-54070 |
2L,3L..LN8#,90..MTM NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10131 |
2L,3L..LN8#,90..MTM NO.2 |
1 | ||
| 28253-54070 |
2L,3L..LN8#,90..MTM NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
22R..RN85,90;22R,2L,3L,2Y,3Y..LN8#,90,RN125,80,YN80,81,85,86..MTM |
1 | ||
| 28226-72010 |
22R..RN85,90;22R,2L,3L,4Y..LN8#,90,RN125,80,YN92..MTM |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
22R..RN85,90;22R#,2L,3L,2Y,3Y,4Y..LN8#,9#,RN125,8#,YN8#,9#..MTM |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28254-54070 |
2L,3L..LN8#,90..MTM NO.1 |
1 | ||
| 28251-54070 |
2L,3L..LN8#,90..MTM NO.2 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| Common parts | ||||
| 28176-54380 | ||||
| 90099-00253 | ||||
| 90099-00271 | ||||
| 90099-04453 | ||||
| 90099-04475 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 93219-15008 | ||||
| 94531-00500 | ||||
(8808-9308)2L,3L..MTM
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14058 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-54170 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
2L,3L..LN8#,90..MTM |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-54170 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10131 |
2L,3L..LN8#,90..MTM NO.2 |
1 | ||
| 28253-54070 |
2L,3L..LN8#,90..MTM NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10131 |
2L,3L..LN8#,90..MTM NO.2 |
1 | ||
| 28253-54070 |
2L,3L..LN8#,90..MTM NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
22R..RN85,90;22R,2L,3L,2Y,3Y..LN8#,90,RN125,80,YN80,81,85,86..MTM |
1 | ||
| 28226-72010 |
22R..RN85,90;22R,2L,3L,4Y..LN8#,90,RN125,80,YN92..MTM |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
22R..RN85,90;22R#,2L,3L,2Y,3Y,4Y..LN8#,9#,RN125,8#,YN8#,9#..MTM |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28254-54070 |
2L,3L..LN8#,90..MTM NO.1 |
1 | ||
| 28251-54070 |
2L,3L..LN8#,90..MTM NO.2 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| 28254-54070 |
2L,3L..LN8#,90..MTM NO.1 |
1 | ||
| 28251-54070 |
2L,3L..LN8#,90..MTM NO.2 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
2L,3L..LN8#,90..MTM |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 90099-04473 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08146 | ||||
| 94110-40800 | ||||
| 94115-51200 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||
