LN85R-TRMRSQ3 (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108)MTM ; (9108-9408)4F ; (9408- )MTM

Click highlighted areas on diagram

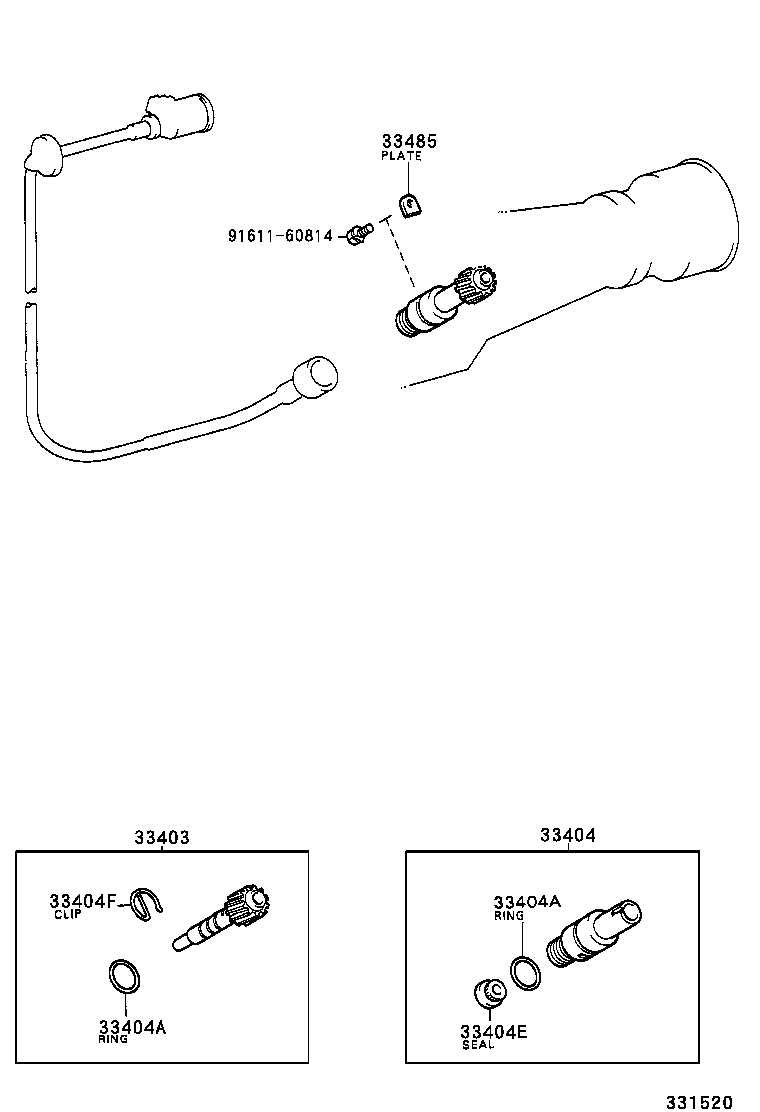

diagram 33403 33404 33404A 33404E 33404F 33485 9161160814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39045

YN85,92..5F;LN8#,90,RN125,8#..TH,V

N=20,MARK 20:6

 1
33482-39045

YN85,92..5F;LN80,85,90,RN125..TH,V

N=20,MARK 20:6

 1
33482-39025

LN85..5F..ARL;RN85,YN87..5F..(ARL,GEN,TH);LN90,RN90,YN81,86..MTM..(ARL,GEN,V)

N=19,MARK 19:6

 1
33482-39135

LN8#,RN8#..MTM..(GEN,V)

N=18,MARK 18:6

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-35010

LN8#,90,RN125,8#,90,YN8#,92..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

LN8#,90,RN125,8#,90,YN8#,92..MTM

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

LN8#,90,RN125,8#,90,YN8#,92..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

LN8#,9#,RN125,8#,90,YN8#,9#..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

LN8#,90,RN125,8#,90,YN8#,92..MTM

 1
Common parts
91611-60814
