LN85R-TRMRSQ (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )LN8#,9#,RN125,8#,90,YN8#,9#

Click highlighted areas on diagram

CONDENSER & RECEIVER

diagram 5353 88375A 88460 88460B 88460C 8846714040 8846714040 8846795704 8846795704 88471 88472 8869589102 88716A 88723B 88891A 88891B 88891B 88891C 88891D 88891F 88891F 88891G 88892C 88892C 9009120609 9009932128 9011906336 9011908671 9011908671 9011920609 9011920609 9017906026 9017906032 9017906032 9017906032 9017906032 9017906032 9165141020 9165141020 91651F0625 91656F0616 91656F0616 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-89115

LN8#,90,RN8#,90,YN8#,92..ARL,GEN,V

 1
88460-89115

YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-89120

LN8#,90,RN8#,90,YN8#,92..ARL,GEN,V

 1
88688-89120

YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-89121

LN8#,90,RN8#,90,YN8#,92..ARL,GEN,V

 1
88688-89121

YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040

YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92

 1
88471-16040

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89110

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 1
88472-89110

YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92

 1
88472-89110

LN8#,90,RN125,8#,90,YN8#,92

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-89163

LN8#,90,RN8#,90,YN8#,92..ARL,GEN,V

 1
88716-89163

YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20020

RN85..V;LN81,85,86,RN80,YN81,86..ARL,V

 1
88891A - PACKING A (FOR COOLER)
53381-89104

YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92

 1
53381-89104

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 1
88891B - PACKING B (FOR COOLER)
88578-89103

LN85,YN85..ARL

 2
88891B - PACKING B (FOR COOLER)
88578-89103

LN85,YN85..ARL

 2
88891D - PACKING D (FOR COOLER)
88578-89127

LN85,RN85,90..ARL

 1
88891F - PACKING F (FOR COOLER)
88578-89122

YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92

LH

 1
88578-89123

YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92

RH

 1
88578-89123

LN8#,90,RN8#,90,YN8#,92

RH

 1
88578-89122

LN8#,90,RN8#,90,YN8#,92

LH

 1
88891F - PACKING F (FOR COOLER)
88578-89122

YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92

LH

 1
88578-89123

YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92

RH

 1
88578-89123

LN8#,90,RN8#,90,YN8#,92

RH

 1
88578-89122

LN8#,90,RN8#,90,YN8#,92

LH

 1
88891G - PACKING G (FOR COOLER)
88578-89107

LN85,RN85,90..ARL

 1
88892C - PLATE, CONDENSER, NO.1
88892-89114

LN8#,90,RN8#,90

RH

 1
88892-89115

LN8#,90,RN8#,90

LH

 1
88892-89115

RN85..V;LN80,85,90,RN80,90

LH

 1
88892C - PLATE, CONDENSER, NO.1
88892-89114

LN8#,90,RN8#,90

RH

 1
88892-89115

LN8#,90,RN8#,90

LH

 1
88892-89115

RN85..V;LN80,85,90,RN80,90

LH

 1
Common parts
88467-14040
88467-95704
88695-89102
90091-20609
90099-32128
90119-06336
90119-08671
90119-20609
90179-06026
90179-06032
91651-41020
91651-F0625
91656-F0616
93385-56025
Linked diagrams
5353

ILLUST NO. 2 OF 2(8808- )LN80,85,86,9#..RHD..ARL,TH

Click highlighted areas on diagram

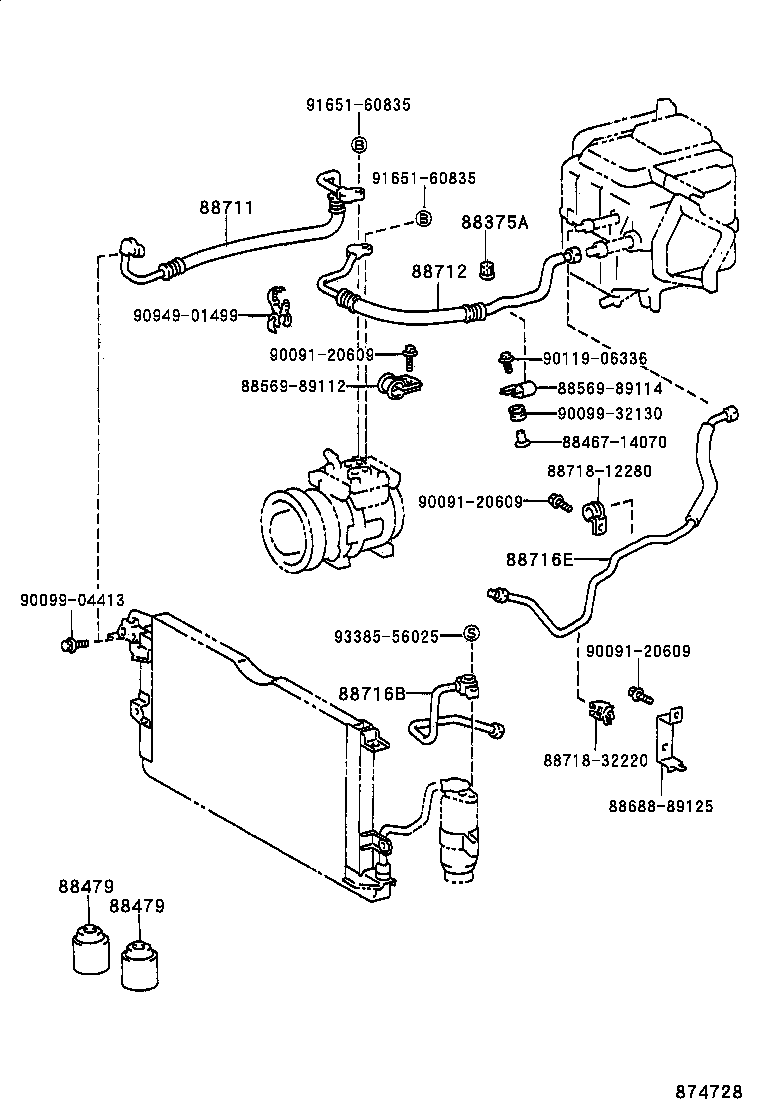

HOSE & PIPE

diagram 88375A 8846714070 88479 88479 8856989112 8856989114 8868889125 88711 88712 88716B 88716E 8871812280 8871832220 9009120609 9009120609 9009120609 9009904413 9009932130 9011906336 9094901499 9165160835 9165160835 9338556025
Part # Description Qty Price
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

LN85,RN85..ARL

250G

 3
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

LN85,RN85..ARL

250G

 3
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-89142

LN8#..RHD..MTM..(ARL,GEN)

 1
88711-89142

LN80,85,90..RHD..MTM

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89145

LN85..ARL

 1
88712-89139

YN80,85,87,92..RHD

 1
88712-89145

LN85..ARL

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-89175

LN85,86..ARL

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89176

LN85,86..ARL

 1
Common parts
88467-14070
88569-89112
88569-89114
88688-89125
88718-12280
88718-32220
90091-20609
90099-04413
90099-32130
90119-06336
90949-01499
91651-60835
93385-56025
