Toyota Hilux 2wd LN85 CLUTCH MASTER CYLINDER

Manufacturers Home
Toyota
GR
HILUX 2WD
LN85R-PRMRS (1988)
3103 - CLUTCH MASTER CYLINDER

LN85R-PRMRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Sep 1999

Engine 2L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8808-0106)MTM

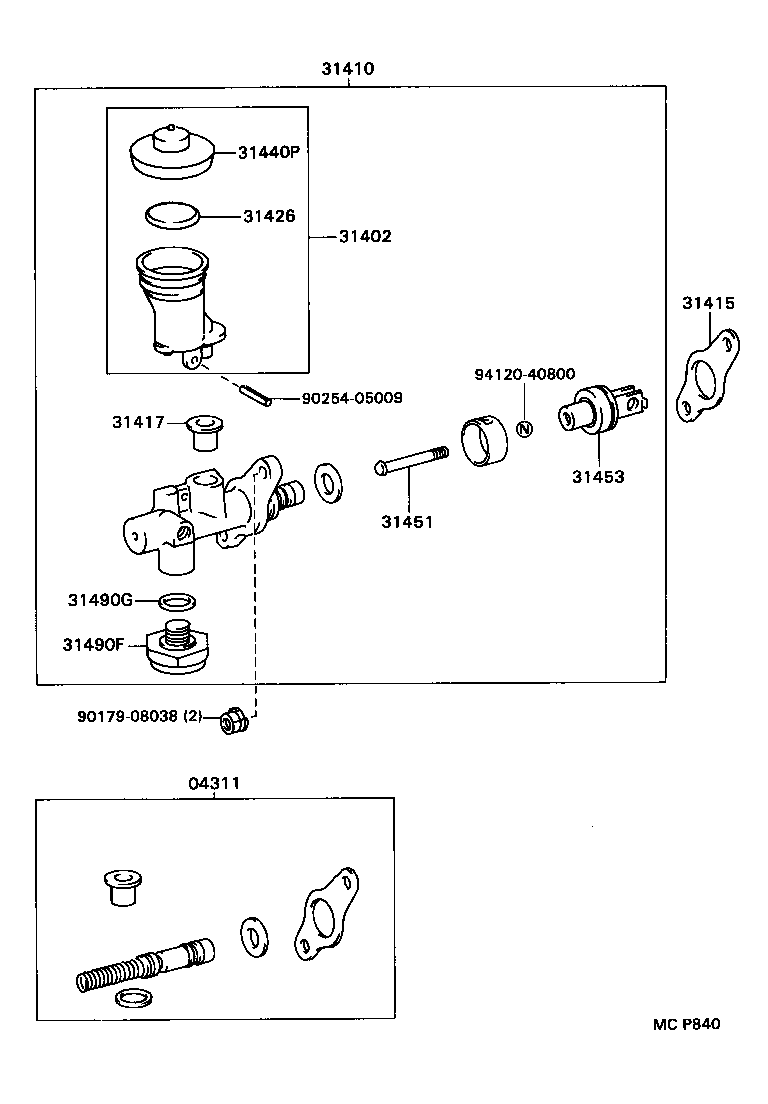

Click highlighted areas on diagram

Part #	Description	Period	Qty
04311 - CYLINDER KIT, CLUTCH MASTER
04311-12060	LN8#,90,RN125,8#,90,YN8#,92..MTM	04/1989 - 12/1991	1
04311-12080	LN8#,90,RN125,8#,90,YN8#,9#..MTM	12/1991 - 03/1994	1
04311-60150	LN85..IV3;LN85..TW1 NEW ZEALAND SPEC	10/1997 - 08/1998	1
04311-35070	LN85..RHD..5F..GEN..CBU VW BRAND	10/1989 - 08/1991	1
04311-22040	RN85..V;LN8#,90,RN80,YN8#,92..MTM	08/1988 - 12/1988	1
04311-60150	LN8#,9#,RN8#,90,YN8#,9#..MTM	03/1994 - 10/1997	1
04311-22040	LN8#,90,RN8#,90,YN8#,92..MTM	12/1988 - 04/1989	1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-35050	LN85..RHD..5F..GEN..CBU VW BRAND	10/1989 - 08/1991	1
31402-35070	YN80,85,90;RN8#,90..LHD	04/1989 - 09/1999	1
31402-35080	LN85..RHD..T1..IV3;LN85..RHD..TW1..CBU NEW ZEALAND SPEC	10/1994 - 09/1999	1
31402-35030	LN8#,90,RN8#,90,YN8#,92..MTM	08/1988 - 04/1989	1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-35410	LN85..RHD..5F..GEN..CBU VW BRAND	10/1989 - 08/1991	1
31410-35300	LN85..RHD..T1..IV3;LN85..RHD..TW1..CBU NEW ZEALAND SPEC	10/1994 - 09/1999	1
31410-35270	LN8#,90..MTM	08/1988 - 10/1994	1
31410-35250	YN80,85,90;RN8#,90..LHD	08/1988 - 09/1999	1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-10010	LN8#,9#,RN125,8#,90,YN8#,9#..MTM	08/1988 - 06/2001	1
31417 - GROMMET, CLUTCH RESERVOIR
31417-35010	LN8#,9#,RN125,8#,90,YN8#,9#..MTM	08/1988 - 06/2001	1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011	LN8#,9#,RN125,8#,90,YN8#,9#..MTM	08/1988 - 06/2001	1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
31405-35010	LN85..RHD..5F..GEN..CBU VW BRAND	10/1989 - 08/1991	1
47230-20040	LN8#,9#,RN125,8#,90,YN8#,9#..MTM	08/1988 - 06/2001	1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-35070	RN8#,90,YN80,85,90..MTM	08/1988 - 09/1999	1
31451-35080	LN8#,90,RN125,YN81,86,87,92..MTM	08/1988 - 03/1994	1
31451-36040	LN8#,90,YN81,86,92..MTM	03/1994 - 10/1994	1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-35021	LN8#,90..MTM	04/1989 - 10/1994	1
31453-35010	RN8#,90,YN80,85,90..MTM	08/1988 - 09/1999	1
31404-35020	LN8#,90..MTM	08/1988 - 04/1989	1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-35021	LN8#,90..MTM	04/1989 - 10/1994	1
31453-35010	RN8#,90,YN80,85,90..MTM	08/1988 - 09/1999	1
31404-35020	LN8#,90..MTM	08/1988 - 04/1989	1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-24010	LN8#,90,RN125,8#,90,YN8#,92..MTM	08/1988 - 04/1992	1
31454-16010	RN85,90..LHD;LN8#,90,RN125,80,YN8#,9#..MTM	04/1992 - 03/1994	1
Common parts
90179-08038
90254-05009
94120-40800

(9410-9909)LN85..RHD

Click highlighted areas on diagram

NEW ZEALAND SPEC

Part #	Description	Period	Qty
04311 - CYLINDER KIT, CLUTCH MASTER
04311-12060	LN8#,90,RN125,8#,90,YN8#,92..MTM	04/1989 - 12/1991	1
04311-12080	LN8#,90,RN125,8#,90,YN8#,9#..MTM	12/1991 - 03/1994	1
04311-60150	LN85..IV3;LN85..TW1 NEW ZEALAND SPEC	10/1997 - 08/1998	1
04311-35070	LN85..RHD..5F..GEN..CBU VW BRAND	10/1989 - 08/1991	1
04311-22040	RN85..V;LN8#,90,RN80,YN8#,92..MTM	08/1988 - 12/1988	1
04311-60150	LN8#,9#,RN8#,90,YN8#,9#..MTM	03/1994 - 10/1997	1
04311-22040	LN8#,90,RN8#,90,YN8#,92..MTM	12/1988 - 04/1989	1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-35050	LN85..RHD..5F..GEN..CBU VW BRAND	10/1989 - 08/1991	1
31402-35070	YN80,85,90;RN8#,90..LHD	04/1989 - 09/1999	1
31402-35080	LN85..RHD..T1..IV3;LN85..RHD..TW1..CBU NEW ZEALAND SPEC	10/1994 - 09/1999	1
31402-35030	LN8#,90,RN8#,90,YN8#,92..MTM	08/1988 - 04/1989	1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-35410	LN85..RHD..5F..GEN..CBU VW BRAND	10/1989 - 08/1991	1
31410-35300	LN85..RHD..T1..IV3;LN85..RHD..TW1..CBU NEW ZEALAND SPEC	10/1994 - 09/1999	1
31410-35270	LN8#,90..MTM	08/1988 - 10/1994	1
31410-35250	YN80,85,90;RN8#,90..LHD	08/1988 - 09/1999	1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-10010	LN8#,9#,RN125,8#,90,YN8#,9#..MTM	08/1988 - 06/2001	1
31417 - GROMMET, CLUTCH RESERVOIR
31417-35010	LN8#,9#,RN125,8#,90,YN8#,9#..MTM	08/1988 - 06/2001	1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011	LN8#,9#,RN125,8#,90,YN8#,9#..MTM	08/1988 - 06/2001	1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
31405-35010	LN85..RHD..5F..GEN..CBU VW BRAND	10/1989 - 08/1991	1
47230-20040	LN8#,9#,RN125,8#,90,YN8#,9#..MTM	08/1988 - 06/2001	1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-35070	RN8#,90,YN80,85,90..MTM	08/1988 - 09/1999	1
31451-35080	LN8#,90,RN125,YN81,86,87,92..MTM	08/1988 - 03/1994	1
31451-36040	LN8#,90,YN81,86,92..MTM	03/1994 - 10/1994	1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-35021	LN8#,90..MTM	04/1989 - 10/1994	1
31453-35010	RN8#,90,YN80,85,90..MTM	08/1988 - 09/1999	1
31404-35020	LN8#,90..MTM	08/1988 - 04/1989	1
31490F - ACCUMULATOR ASSY, MASTER CYLINDER
31490-12010	LN85..RHD..T1..IV3;LN85..RHD..TW1..CBU NEW ZEALAND SPEC	10/1994 - 09/1999	1
31490G - GASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)
90430-16005	LN85..RHD..T1..IV3;LN85..RHD..TW1..CBU NEW ZEALAND SPEC	10/1994 - 09/1999	1
Common parts
90179-08038
90254-05009
94120-40800

LN85R-PRMRS (1988)

(8808-0106)MTM

(9410-9909)LN85..RHD
