LN85R-PRMDSQ (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

O-RING

diagram 9009914044 9009914045 9009914046 9009914056 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14119
90099-14120
90099-14121
90099-14122

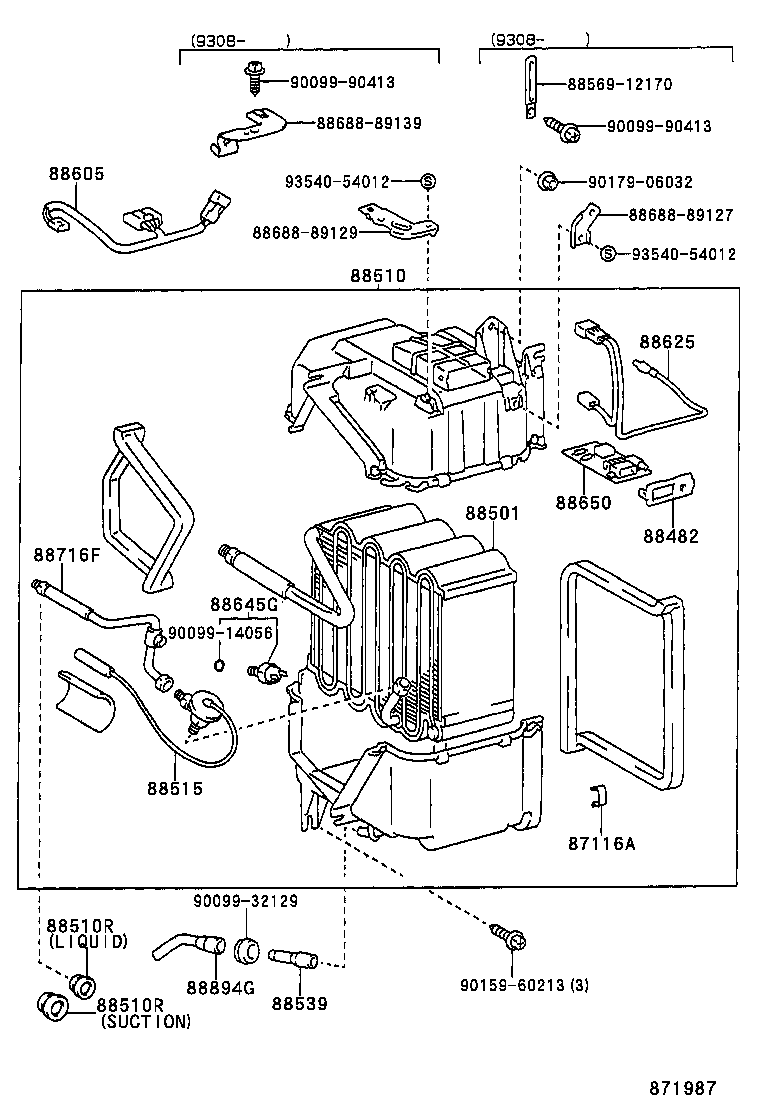

ILLUST NO. 1 OF 2(8808- )ARL

Click highlighted areas on diagram

diagram 87116A 88482 88501 88510 88510R 88510R 88515 88539 8856912170 88605 88625 88645G 88650 8868889127 8868889129 8868889139 88716F 88894G 9009914056 9009932129 9009990413 9009990413 9015960213 9017906032 9354054012 9354054012
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

LN8#,9#,RN125,8#,90,YN8#,9#

 4
88482 - CAP, COOLER
88482-60010

RN125,8#,YN8#,92

 1
88482-60020

LN8#,90..ARL,GEN

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-89112

LN80,85,90,RN85,YN80,85,87,92..RHD

 1
88501-89112

LN8#,90,YN80,85,87,92..RHD

 1
88501-89112

LN8#,YN85,87,92..RHD..(ARL,GEN)

 1
88515 - VALVE, COOLER EXPANSION
88515-16040

RN85..V;LN8#,90,RN80,YN8#,92..ARL,GEN,V

 1
88515-16040

RN85..V;LN8#,90,RN80,YN8#,92

 1
88515-16040

LN8#,90,RN8#,YN8#,92

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89113

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 1
88539-89113

YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-89157

LN85,86..ARL

 1
88625 - THERMISTOR, COOLER, NO.1
88625-89102

RN85..V;LN8#,90,RN80,YN8#,92..ARL,GEN,V

 1
88625-89102

LN8#,90,RN8#,YN8#,92

 1
88625-89102

RN85..V;LN8#,90,RN80,YN8#,92

 1
88645G - SWITCH, PRESSURE
88645-10020

RN125;LN85,86,YN85..ARL

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-89157

LN8#,90,YN80,85,87,92..RHD

 1
88716-89157

LN8#,YN85,87,92..RHD..(ARL,GEN)

 1
88716-89157

LN80,85,90,RN85,YN80,85,87,92..RHD

 1
88894G - CONNECTOR, DRAIN HOSE
88894-89109

YN85,87,92..RHD..GEN;LN8#,90,RN85,90..ARL,GEN

 1
88894-89109

LN8#,90,RN85,90..ARL,GEN;YN85,87,92..RHD..(ARL,GEN)

 1
Common parts
88569-12170
88688-89127
88688-89129
88688-89139
90099-14056
90099-32129
90099-90413
90159-60213
90179-06032
93540-54012
