LN85R-PRMDSQ (1988)
Toyota Hilux 2wd

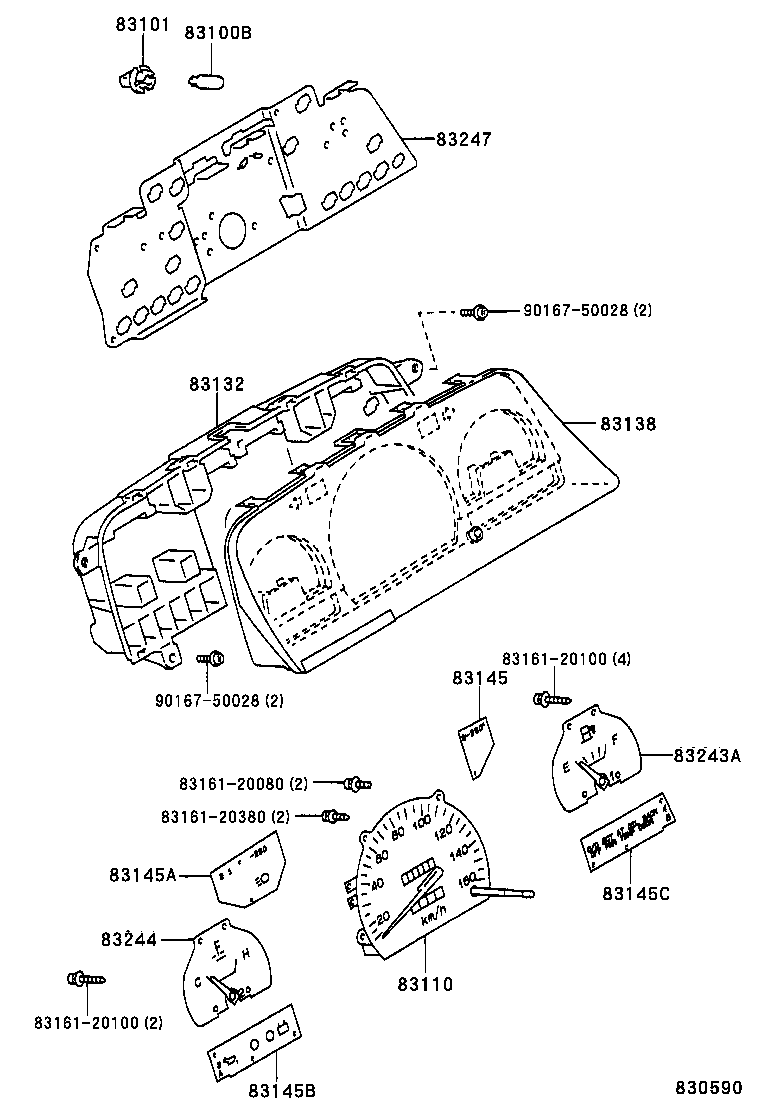

ILLUST NO. 1 OF 3(8808- )RHD
COMBINATION METER, W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LN8#,9#,RN125,8#,90,YN8#,9# 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
14 | ||
| 83109-24020 |
LN8#,9#,RN8#,90,YN8#,9# 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 99132-12034 |
LN8#,9#,RN125,8#,90,YN8#,9# 12V 3.4W,TYPE B:REFER TO ILLUSTRATION |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN8#,9#,RN125,8#,90,YN8#,9# TYPE B:REFER TO ILLUSTRATION |
12 | ||
| 83101-14040 |
LN8#,9#,RN125,8#,90,YN8#,9# TYPE A:REFER TO ILLUSTRATION |
14 | ||
| 83101-14030 |
LN8#,9#,RN8#,90,YN8#,9# TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89324 |
LN85..ARL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89502 |
LN85,RN125,90..ARL,V |
1 | ||
| 83132-89502 |
LN81,86,RN8#,YN81,85,86..ARL,V W(TACHOMETER) |
1 | ||
| 83132-89502 |
YN85..TH;LN80,85,90,RN125,90,YN80,87..ARL,TH,V |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-89512 |
LN85..ARL |
1 | ||
| 83138-89512 |
LN8#..(DLX,STD)..(ARL,TH) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89546 |
LN85..MTM;YN87..IV3;YN85,87..TH;LN85..4FC..ARL;YN87..RHD..TW1;RN90,YN80,92..RHD;LN80,90,RN125,8#,YN81,86..GEN,TH,V |
1 | ||
| 83145-89546 |
LN85..MTM;YN87..IV3;LN85..4FC..IV3;RN90,YN80..RHD;YN87..RHD..TW1;YN85..RHD..T1..(GEN,TH);LN80,81,86,90,RN125,8#,YN81,86..GEN,TH,V |
1 | ||
| 83145-89546 |
YN87..IV3;LN85..4FC..ARL;YN85..RHD..T1..GEN;LN85..MTM..(ARL,GEN);RN90,YN87,92..RHD..(DCB,XTR);LN80,90,RN125,8#,YN81,86..GEN,V |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89560 |
LN85..4FC..ARL;LN8#,90..MTM..(ARL,GEN) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89532 |
LN85,RN85,90,YN85..ARL |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89550 |
LN85,86,RN90..ARL |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-89502 |
LN85,RN125,90..ARL,V |
1 | ||
| 83243-89502 |
YN85..TH;LN80,85,90,RN125,90,YN80,87..ARL,TH,V |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-89504 |
LN85,RN90..ARL |
1 | ||
| 83244-89504 |
YN85..TH;LN80,85,90,RN90,YN80,87..ARL,TH |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-89528 |
LN85..ARL |
1 | ||
| 83247-35080 |
LN85..ARL |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20380 | ||||
| 90167-50028 | ||||
ILLUST NO. 1 OF 3(8808- )
COMBINATION METER, W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LN8#,9#,RN125,8#,90,YN8#,9# 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
14 | ||
| 83109-24020 |
LN8#,9#,RN8#,90,YN8#,9# 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 99132-12034 |
LN8#,9#,RN125,8#,90,YN8#,9# 12V 3.4W,TYPE B:REFER TO ILLUSTRATION |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LN8#,9#,RN125,8#,90,YN8#,9# 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
14 | ||
| 83109-24020 |
LN8#,9#,RN8#,90,YN8#,9# 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 99132-12034 |
LN8#,9#,RN125,8#,90,YN8#,9# 12V 3.4W,TYPE B:REFER TO ILLUSTRATION |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN8#,9#,RN125,8#,90,YN8#,9# TYPE B:REFER TO ILLUSTRATION |
12 | ||
| 83101-14040 |
LN8#,9#,RN125,8#,90,YN8#,9# TYPE A:REFER TO ILLUSTRATION |
14 | ||
| 83101-14030 |
LN8#,9#,RN8#,90,YN8#,9# TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN8#,9#,RN125,8#,90,YN8#,9# TYPE B:REFER TO ILLUSTRATION |
12 | ||
| 83101-14040 |
LN8#,9#,RN125,8#,90,YN8#,9# TYPE A:REFER TO ILLUSTRATION |
14 | ||
| 83101-14030 |
LN8#,9#,RN8#,90,YN8#,9# TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89324 |
LN85..ARL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89502 |
LN85,RN125,90..ARL,V |
1 | ||
| 83132-89502 |
LN81,86,RN8#,YN81,85,86..ARL,V W(TACHOMETER) |
1 | ||
| 83132-89502 |
YN85..TH;LN80,85,90,RN125,90,YN80,87..ARL,TH,V |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-89512 |
LN85..ARL |
1 | ||
| 83138-89512 |
LN8#..(DLX,STD)..(ARL,TH) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89546 |
LN85..MTM;YN87..IV3;YN85,87..TH;LN85..4FC..ARL;YN87..RHD..TW1;RN90,YN80,92..RHD;LN80,90,RN125,8#,YN81,86..GEN,TH,V |
1 | ||
| 83145-89546 |
LN85..MTM;YN87..IV3;LN85..4FC..IV3;RN90,YN80..RHD;YN87..RHD..TW1;YN85..RHD..T1..(GEN,TH);LN80,81,86,90,RN125,8#,YN81,86..GEN,TH,V |
1 | ||
| 83145-89546 |
YN87..IV3;LN85..4FC..ARL;YN85..RHD..T1..GEN;LN85..MTM..(ARL,GEN);RN90,YN87,92..RHD..(DCB,XTR);LN80,90,RN125,8#,YN81,86..GEN,V |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89560 |
LN85..4FC..ARL;LN8#,90..MTM..(ARL,GEN) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89532 |
LN85,RN85,90,YN85..ARL |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89550 |
LN85,86,RN90..ARL |
1 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
LN85..4FC..ARL;LN8#,90..MTM..(ARL,GEN) |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-89514 |
LN85..4FC..ARL;LN8#,90..MTM..(ARL,GEN) |
1 | ||
| 83242-89502 |
YN87..IV3;YN87..RHD..TW1;YN85,92..RHD..T1;RN125,8#,90,YN81,86 |
1 | ||
| 83242-89520 |
RN125,8#,90,YN81,85,86..ARL,V |
1 | ||
| 83242-89514 |
LN8#,90..MTM;LN85..4FC..ARL |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-89502 |
LN85,RN125,90..ARL,V |
1 | ||
| 83243-89502 |
YN85..TH;LN80,85,90,RN125,90,YN80,87..ARL,TH,V |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-89504 |
LN85,RN90..ARL |
1 | ||
| 83244-89504 |
YN85..TH;LN80,85,90,RN90,YN80,87..ARL,TH |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-89528 |
LN85..ARL |
1 | ||
| 83247-35080 |
LN85..ARL |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-89105 |
LN85..ARL |
1 | ||
| 86650-89105 |
LN8#,90..ARL,TH,V |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20380 | ||||
| 83161-20820 | ||||
| 90076-00005 | ||||
| 90076-00029 | ||||
| 90167-50028 | ||||
ILLUST NO. 3 OF 3(8808- )LN200,8#,9#,RN125,8#,90,YN8#,9#
CLOCK,DETECTOR REV. & SENSOR METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-30011 |
LN90;LN85..4FC..ARL;LN8#..MTM..(ARL,GEN) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-89108 |
LN8#,RN85,90,YN85,87,92..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90167-50028 | ||||

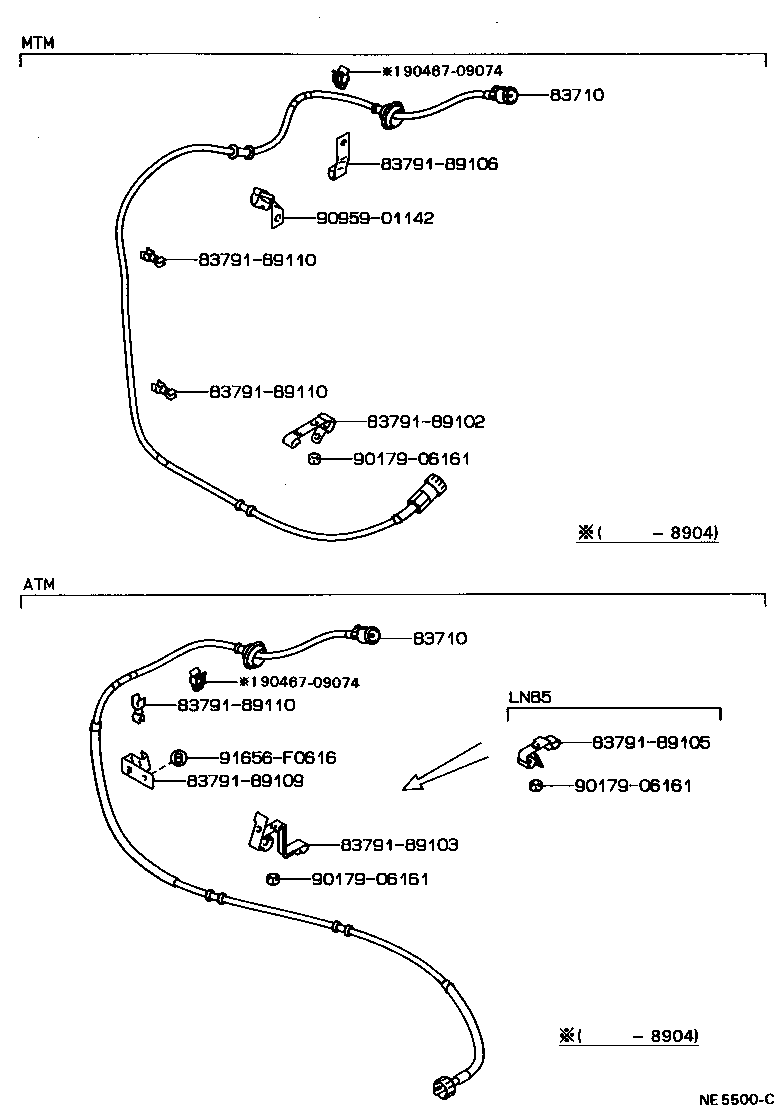

ILLUST NO. 2 OF 3(8808-9108)RHD ; (9408- )RHD
SPEEDOMETER DRIVE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89191 |
LN85..5F..ARL |
1 | ||
| 83710-89191 |
LN80,85,90,YN87..5F..(ARL,TH) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89191 |
LN85..5F..ARL |
1 | ||
| 83710-89191 |
LN80,85,90,YN87..5F..(ARL,TH) |
1 | ||
| Common parts | ||||
| 83791-89102 | ||||
| 83791-89103 | ||||
| 83791-89105 | ||||
| 83791-89106 | ||||
| 83791-89109 | ||||
| 83791-89110 | ||||
| 90179-06161 | ||||
| 90467-09074 | ||||
| 90959-01142 | ||||
| 91656-F0616 | ||||
