LN85R-PRMDSQ (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )5F

Click highlighted areas on diagram

diagram 58808 58811A 58825A 58991 9015960397 9016750020 9016750020 9018905039 9018906029
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-89114E0

RN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)

BROWN,TRIM4#

 1
58808-8911403

RN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)

GRAY,TRIM1#

 1
58808-8911404

RN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)

BLUE,TRIM8#

 1
58808-8911406

RN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)

BROWN,TRIM4#

 1
58811A - BOX, CONSOLE, FRONT
58802-8911404

RN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)

BLUE,TRIM8#

 1
58802-8911406

RN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)

BROWN,TRIM4#

 1
58802-8911403

RN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)

GRAY,TRIM1#

 1
58802-89114E0

RN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)

BROWN,TRIM4#

 1
58825A - POCKET, CONSOLE BOX
58825-89111E0

RN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)

BROWN,TRIM4#

 1
58825-8911106

RN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)

BROWN,TRIM4#

 1
58825-8911103

RN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)

GRAY,TRIM1#

 1
58825-8911104

RN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)

BLUE,TRIM8#

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-89103

RN8#..SR5;RN85..DLX..ARL;LN85,86,RN85..4FC..STD;LN85,86,90,RN125,90,YN92..DLX,SR5

 1
Common parts
90159-60397
90167-50020
90189-05039
90189-06029

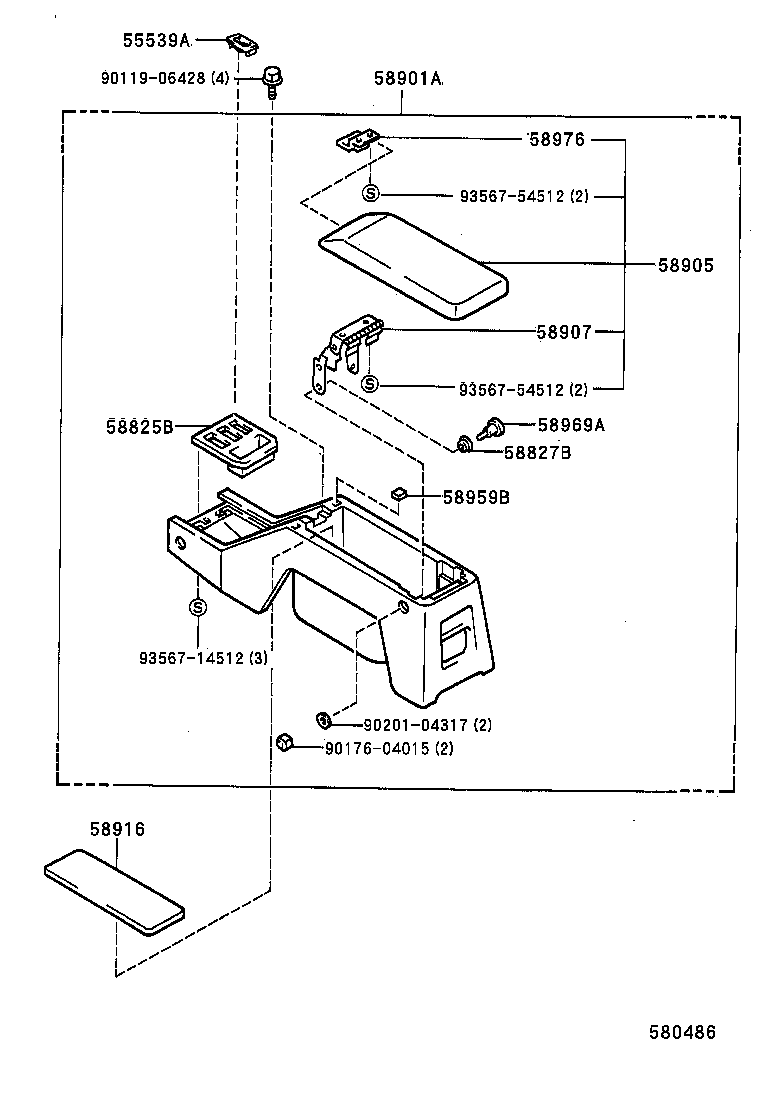

ILLUST NO. 2 OF 2(8808- )LN85,86,9#,RN125,8#,90,YN86,9#..DLX,SR5

Click highlighted areas on diagram

diagram 55539A 58825B 58827B 58901A 58905 58907 58916 58959B 58969A 58976 9011906428 9017604015 9020104317 9356714512 9356754512 9356754512
Part # Description Qty Price
58825B - POCKET, CONSOLE BOX
58825-8910903

LN85,90,RN85,90..RHD..(DLX,SR5)

GRAY,TRIM1#

 1
58825-8910906

LN85,90,RN85,90..RHD..(DLX,SR5)

BROWN,TRIM4#

 1
58825-89109E0

LN85,90,RN85,90..RHD..(DLX,SR5)

BROWN,TRIM4#

 1
58825-8910904

LN85,90,RN85,90..RHD..(DLX,SR5)

BLUE,TRIM8#

 1
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58827-20021

RN85..DLX..ARL;LN85,86,90,RN125,90..(DLX,SR5)..(ARL,TH,V)

 2
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-8912704

LN85,86,RN85..DLX..ARL

BLUE,TRIM8#

 1
58901-8912703

LN85,86,RN85..DLX..ARL

GRAY,TRIM1#

 1
58901-8912706

LN85,RN85..DLX..ARL

BROWN,TRIM4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-8910204

RN85..DLX..ARL;LN85,90,RN125,90..(DLX,SR5)..(ARL,TH,V)

BLUE,TRIM8#

 1
58905-8910203

RN85..DLX..ARL;LN85,90,RN125,90..(DLX,SR5)..(ARL,TH,V)

GRAY,TRIM1#

 1
58905-8910206

RN85..DLX..ARL;LN85,90,RN125,90..(DLX,SR5)..(ARL,TH,V)

BROWN,TRIM4#

 1
58905-8910204

RN85..DLX..ARL;LN85,90,RN125,90..(DCB,WG,XTR)..(ARL,TH,V)

BLUE,TRIM8#

 1
58905-89102E0

RN85..DLX..ARL;LN85,90,RN125,90..(DLX,SR5)..(ARL,TH,V)

BROWN,TRIM4#

 1
58905-8910203

RN85..DLX..ARL;LN85,90,RN125,90..(DCB,WG,XTR)..(ARL,TH,V)

GRAY,TRIM1#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-89102

RN85..DLX..ARL;LN85,86,90,RN125,90..(DLX,SR5)..(ARL,TH,V)

 1
58916 - MAT, BOX BOTTOM
58916-89101

RN85..DLX..ARL;LN85,86,90,RN125,90..(DLX,SR5)..(ARL,TH,V)

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-89101

RN85..DLX..ARL;LN85,86,90,RN125,90..(DLX,SR5)..(ARL,TH,V)

 2
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

RN85..DLX..ARL;LN85,86,90,RN125,90..(DLX,SR5)..(ARL,TH,V)

 2
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

RN85..DLX..ARL;LN85,86,90,RN125,90..(DLX,SR5)..(ARL,TH,V)

 1
Common parts
90119-06428
90176-04015
90201-04317
93567-14512
93567-54512
