LN200L-PRMDS (2001)
Toyota Hilux 2wd
(0106- )LN200
G#

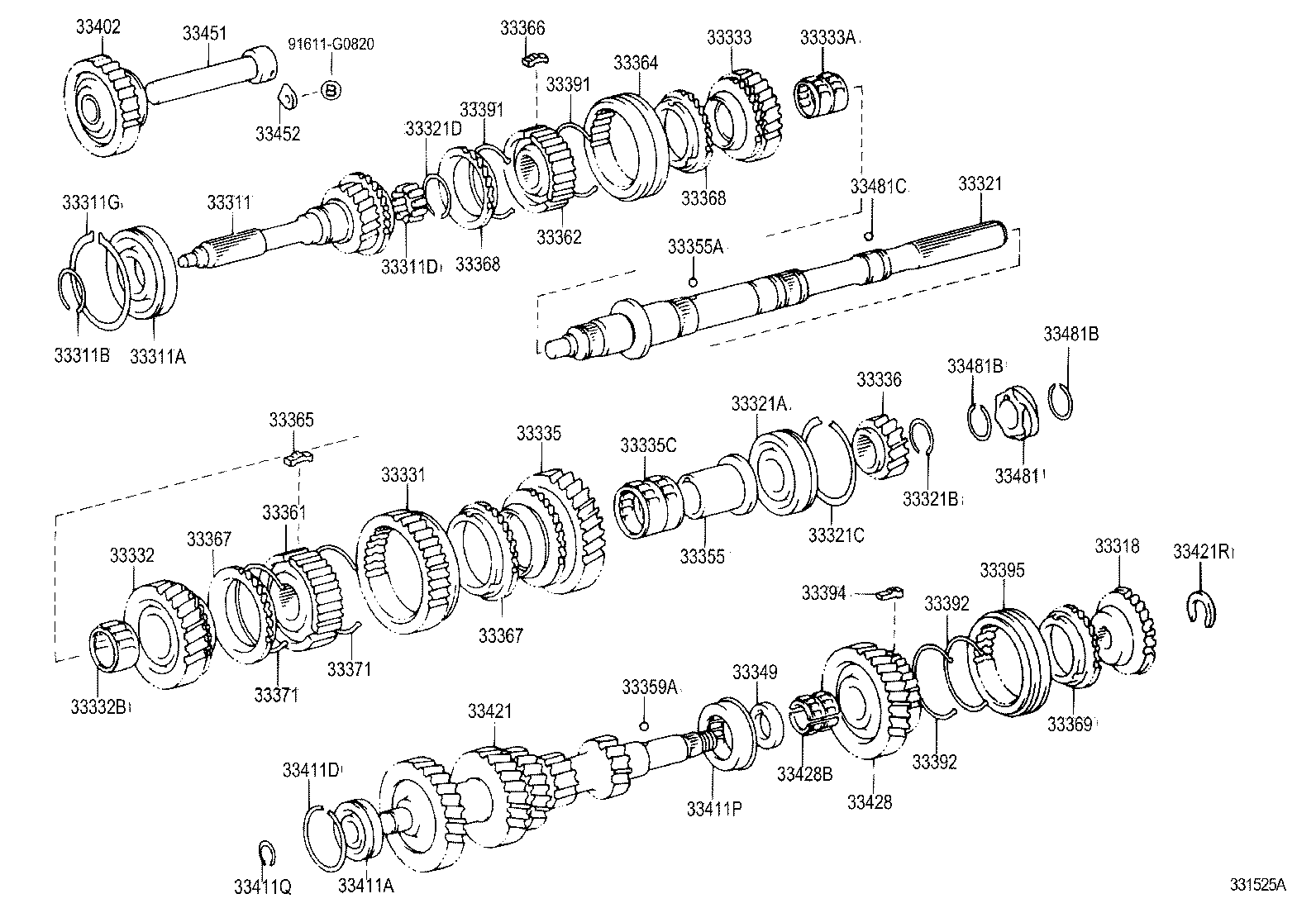

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-35080 |
LN200 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-32024 |
LN200 |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30214 |
LN200 T=2.05,MARK 0 |
1 | ||
| 90520-30215 |
LN200 T=2.10,MARK 1 |
1 | ||
| 90520-30216 |
LN200 T=2.15,MARK 2 |
1 | ||
| 90520-30219 |
LN200 T=2.30,MARK 5 |
1 | ||
| 90520-30218 |
LN200 T=2.25,MARK 4 |
1 | ||
| 90520-30217 |
LN200 T=2.20,MARK 3 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06002 |
LN200 |
13 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76002 |
LN200 |
1 | ||
| 33318 - PIECE, GEAR SPLINE, NO.5 | ||||
| 33318-35030 |
LN200 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35092 |
LN200 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-30059 |
LN200 |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25005 |
LN200 T=2.67-2.72,MARK A |
1 | ||
| 90520-25011 |
LN200 T=2.91-2.96,MARK E |
1 | ||
| 90520-25009 |
LN200 T=2.79-2.84,MARK C |
1 | ||
| 90520-25010 |
LN200 T=2.85-2.90,MARK D |
1 | ||
| 90520-25006 |
LN200 T=2.73-2.78,MARK B |
1 | ||
| 90520-25012 |
LN200 T=2.97-3.02,MARK F |
1 | ||
| 90520-25014 |
LN200 T=3.09-3.14,MARK H |
1 | ||
| 90520-25013 |
LN200 T=3.03-3.08,MARK G |
1 | ||
| 90520-25015 |
LN200 T=3.15-3.20,MARK J |
1 | ||
| 90520-25017 |
LN200 T=3.27-3.32,MARK L |
1 | ||
| 90520-25016 |
LN200 T=3.21-3.26,MARK K |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-71221 |
LN200 T=1.65,ID=71.1 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28013 |
LN200 T=2.05-2.10,MARK F-1 |
1 | ||
| 90520-28011 |
LN200 T=1.95-2.00,MARK E-1 |
1 | ||
| 90520-28245 |
LN200,RZN200 T=1.80-1.85,MARK D |
1 | ||
| 90520-28246 |
LN200 T=1.90-1.95,MARK E |
1 | ||
| 90520-28248 |
LN200 T=2.00-2.05,MARK F |
1 | ||
| 90520-28012 |
LN200,RZN200 T=1.75-1.80,MARK C-1 |
1 | ||
| 90520-28010 |
LN200 T=1.85-1.90,MARK D-1 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-35061 |
LN200 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-35011 |
LN200 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-38002 |
LN200 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-35030 |
LN200 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-35005 |
LN200 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-26020 |
LN200 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-39011 |
LN200 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-28020 |
LN200 |
1 | ||
| 33349 - WASHER, 5TH GEAR THRUST | ||||
| 33349-35010 |
LN200 |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-35020 |
LN200 |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
LN200 |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
LN200 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35020 |
LN200 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-35040 |
LN200 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-26020 |
LN200 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35020 |
LN200 |
3 | ||
| 33365-35021 |
LN200 |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-35040 |
LN200 |
3 | ||
| 33366-35041 |
LN200 |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-14010 |
LN200 |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-14010 |
LN200 |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
LN200 |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
LN200 |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
LN200 |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
LN200 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
LN200 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
LN200 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
LN200 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-14010 |
LN200 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-14010 |
LN200 |
2 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-30011 |
LN200 |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-35020 |
LN200 |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-35050 |
LN200 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25023 |
LN200 |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
LN200,RZN200 T=1.07,OD=55.6 |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-31006 |
LN200 |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23143 |
LN200 T=2.15-2.20 |
1 | ||
| 90520-23115 |
LN200 T=2.05-2.10 |
1 | ||
| 90520-23089 |
LN200 T=2.10-2.15 |
1 | ||
| 90520-23090 |
LN200 T=2.20-2.25 |
1 | ||
| 90520-23144 |
LN200 T=2.25-2.30 |
1 | ||
| 90520-23145 |
LN200 T=2.30-2.35 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-35170 |
LN200 |
1 | ||
| 33421R - RING, SHAFT SNAP(FOR COUNTER GEAR REAR) | ||||
| 90520-19008 |
LN200 T=2.85 |
1 | ||
| 90520-19014 |
LN200 T=3.15 |
1 | ||
| 90520-19010 |
LN200 T=2.95 |
1 | ||
| 90520-19011 |
LN200 T=3.00 |
1 | ||
| 90520-19013 |
LN200 T=3.10 |
1 | ||
| 90520-19012 |
LN200 T=3.05 |
1 | ||
| 90520-19009 |
LN200 T=2.90 |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33046-35062 |
LN200 |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-26002 |
LN200 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-28010 |
LN200 |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-36030 |
LN200 |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-22010 |
LN200 N=6,MARK 6X18-20 |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26061 |
LN200 T=1.50,OD=31.3 |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26061 |
LN200 T=1.50,OD=31.3 |
2 | ||
| 33481C - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
LN200 |
1 | ||
| Common parts | ||||
| 91611-G0820 | ||||
