YN67R-MRQ3 (1985)

Toyota Hilux

Production Aug 1985 - Aug 1988
Engine 4Y 4YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

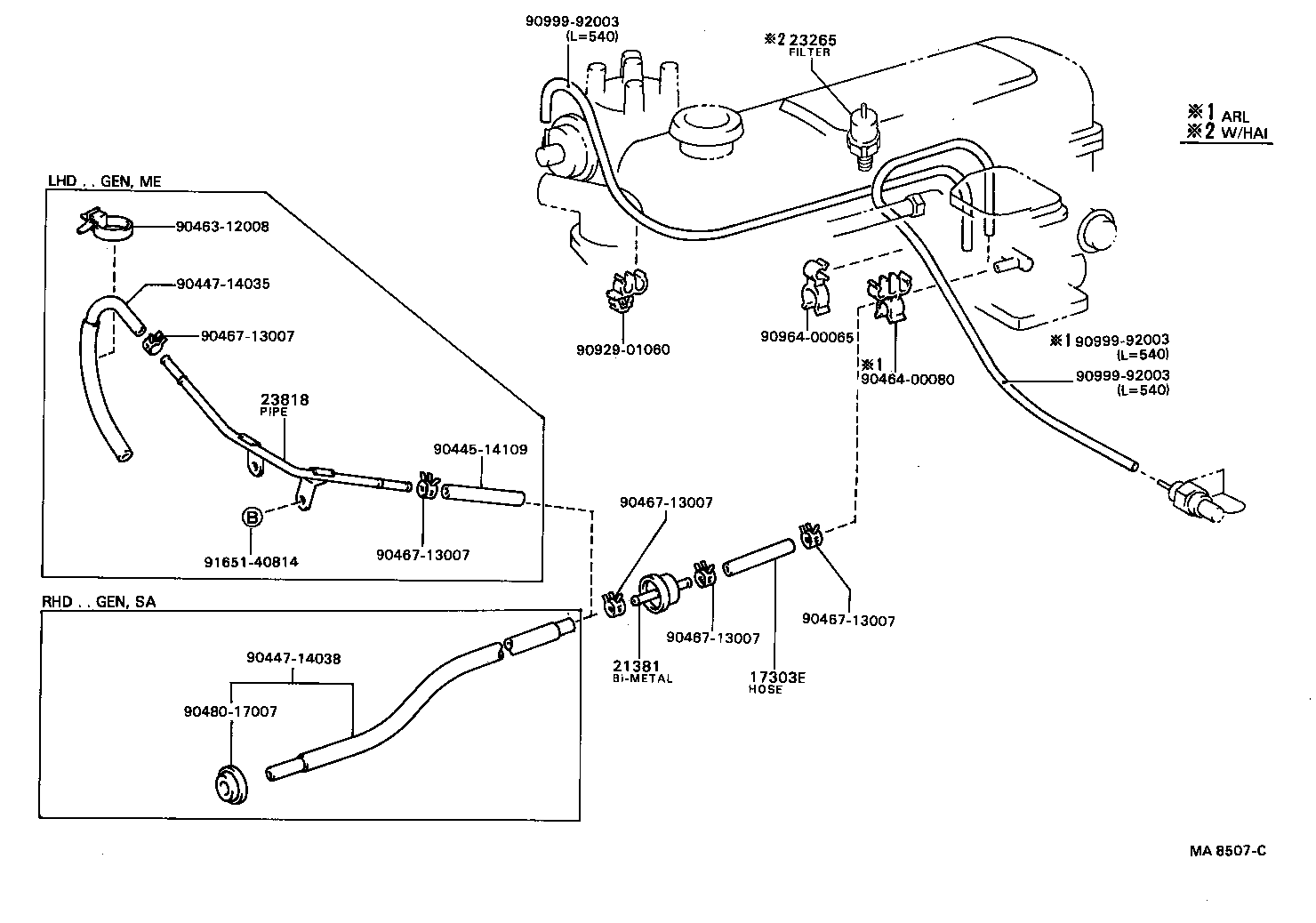

(8508-8608)1Y,3Y,4Y..YN50,52,55,57,60,62,63,67

Click highlighted areas on diagram

diagram 17303E 21381 23265 23818 9044514109 9044714035 9044714038 9046312008 9046400080 9046713007 9046713007 9046713007 9046713007 9046713007 9048017007 9092901060 9096400065 9099992003 9099992003 9099992003 9165140814
Part # Description Qty Price
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14079

1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67

 1
21381 - BIMETAL, THERMOSTATIC
21381-71050

1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67

 1
23265 - FILTER, GAS, NO.1
90917-11024

1YC,3Y,4Y..YN55,57,6#..ARL

*NSW

 1
90917-11024

3Y,4Y..YN57,63,65,67..ARL

*NSW

 1
23818 - PIPE, FUEL VAPOR FEED
23818-71011

1YC,3Y,4Y..YN55,57,6#..ARL

 1
Common parts
90445-14109
90447-14035
90447-14038
90463-12008
90464-00080
90467-13007
90480-17007
90929-01060
90964-00065
90999-92003
91651-40814

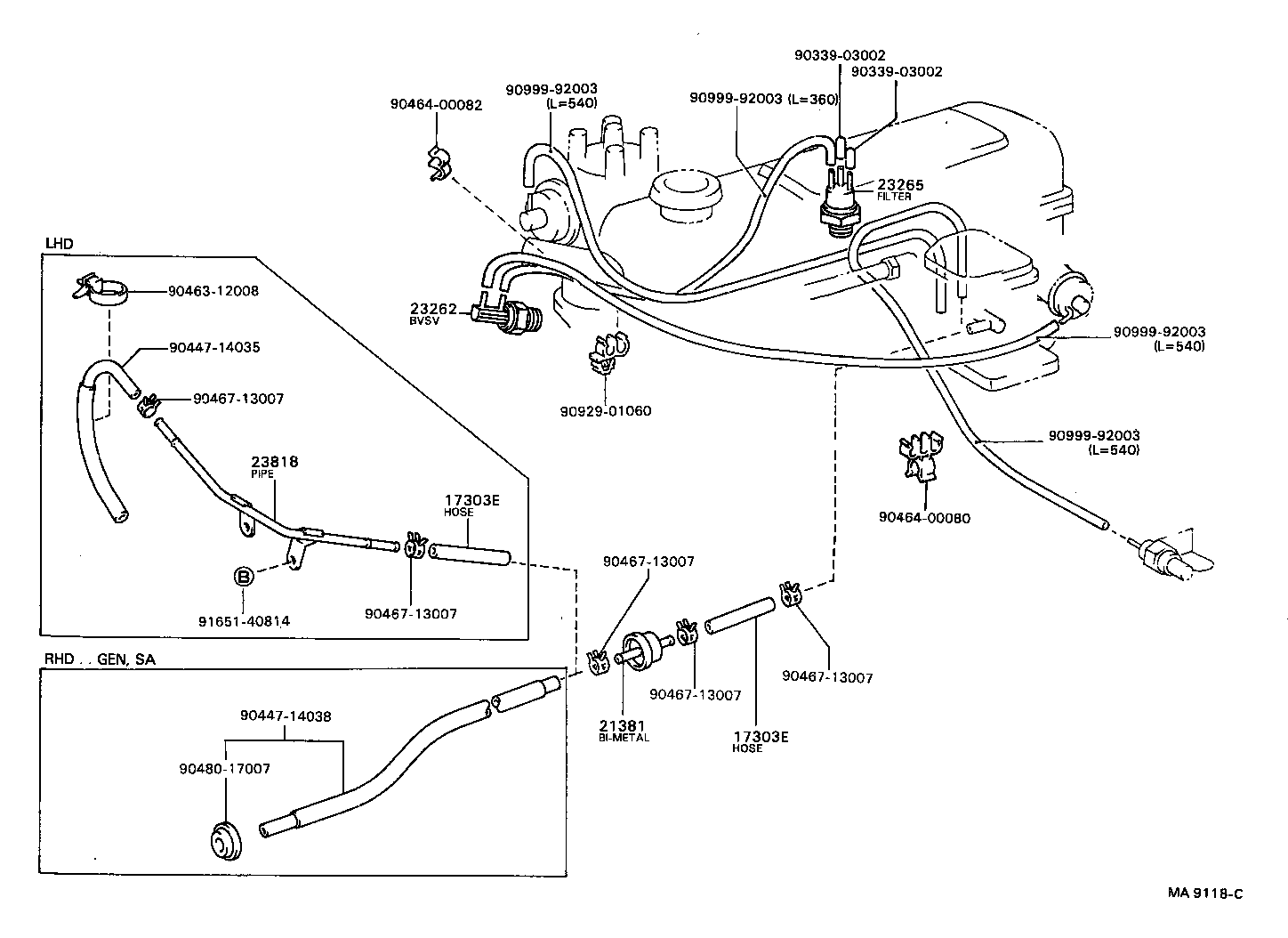

(8608-8708)3Y,4Y..YN57,6#..ARL ; (8608-8808)1Y,2Y,3Y..YN50,51,55,56,57..GEN,SA

Click highlighted areas on diagram

diagram 17303E 17303E 21381 23262 23265 23818 9033903002 9033903002 9044714035 9044714038 9046312008 9046400080 9046400082 9046713007 9046713007 9046713007 9046713007 9046713007 9048017007 9092901060 9099992003 9099992003 9099992003 9099992003 9165140814
Part # Description Qty Price
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14079

1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14079

1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67

 1
21381 - BIMETAL, THERMOSTATIC
21381-71050

1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67

 1
23265 - FILTER, GAS, NO.1
90917-11024

1YC,3Y,4Y..YN55,57,6#..ARL

*NSW

 1
90917-11024

3Y,4Y..YN57,63,65,67..ARL

*NSW

 1
23818 - PIPE, FUEL VAPOR FEED
23818-71011

1YC,3Y,4Y..YN55,57,6#..ARL

 1
Common parts
90339-03002
90447-14035
90447-14038
90463-12008
90464-00080
90464-00082
90467-13007
90480-17007
90929-01060
90999-92003
91651-40814

(9708-0108)2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA ; (9808-0009)5L..LN157 ;

Click highlighted areas on diagram

diagram 25706 25760 25860 25860 25860 2606 4301 88031R 88031R 88892S 9017906204 9041304008 9041304008 9044508331 9044704027 9044704056 9044704056 9046400369 9092901366 9092901386 9092901386 9099992002 9099992002 9099992002 9099992002 9099992002 91611B0616 9162140812 9162261014 9541340033 9541340033 9541349933 9541349936
Part # Description Qty Price
Common parts
90179-06204
90413-04008
90445-08331
90447-04027
90447-04056
90464-00369
90929-01366
90929-01386
90999-92002
91611-B0616
91621-40812
91622-61014
95413-40033
95413-49933
95413-49936
Linked diagrams
2606
4301

(0408-0908)2KDFTV..KUN15,25..HDCR..TH ; (0908-)2KDFTV..KUN15..HDCR ; (1008-

Click highlighted areas on diagram

diagram 1106 1106 1703 17696 23265 25706 25707 8271133250 8405 8405 9017906298 90182T0007 9033903005 90339T0001 90445T0002 90445T0003 90445T0004 90445T0005 9044708168 90447T0001 9099992002 9099992002
Part # Description Qty Price
Common parts
82711-33250
90179-06298
90182-T0007
90339-03005
90339-T0001
90445-T0002
90445-T0003
90445-T0004
90445-T0005
90447-08168
90447-T0001
90999-92002
Linked diagrams
1106
1703
8405

(1107-1208)2KDFTV..KUN25,35..SR..TH ; (1107-1208)2KDFTV..KUN15..DCB..SR..TH ; (1107

Click highlighted areas on diagram

WATER COOLING TURBO

diagram 1106 1701 17696 23265 25706 25707 25760 25760A 25770 25860E 8271133250 90105T0054 90159T0001 90445T0004 9044708168 90447T0001 9046400082 9046400082 9046907011 9046907011 90469T0005 9099992002 9099992002 9099992002 9099992002 9155180816 9331915008
Part # Description Qty Price
Common parts
82711-33250
90105-T0054
90159-T0001
90445-T0004
90447-08168
90447-T0001
90464-00082
90469-07011
90469-T0005
90999-92002
91551-80816
93319-15008
Linked diagrams
1106
1701
