YN67R-MRQ3 (1985)

Toyota Hilux

Production Aug 1985 - Aug 1988
Engine 4Y 4YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-9508)L,2L

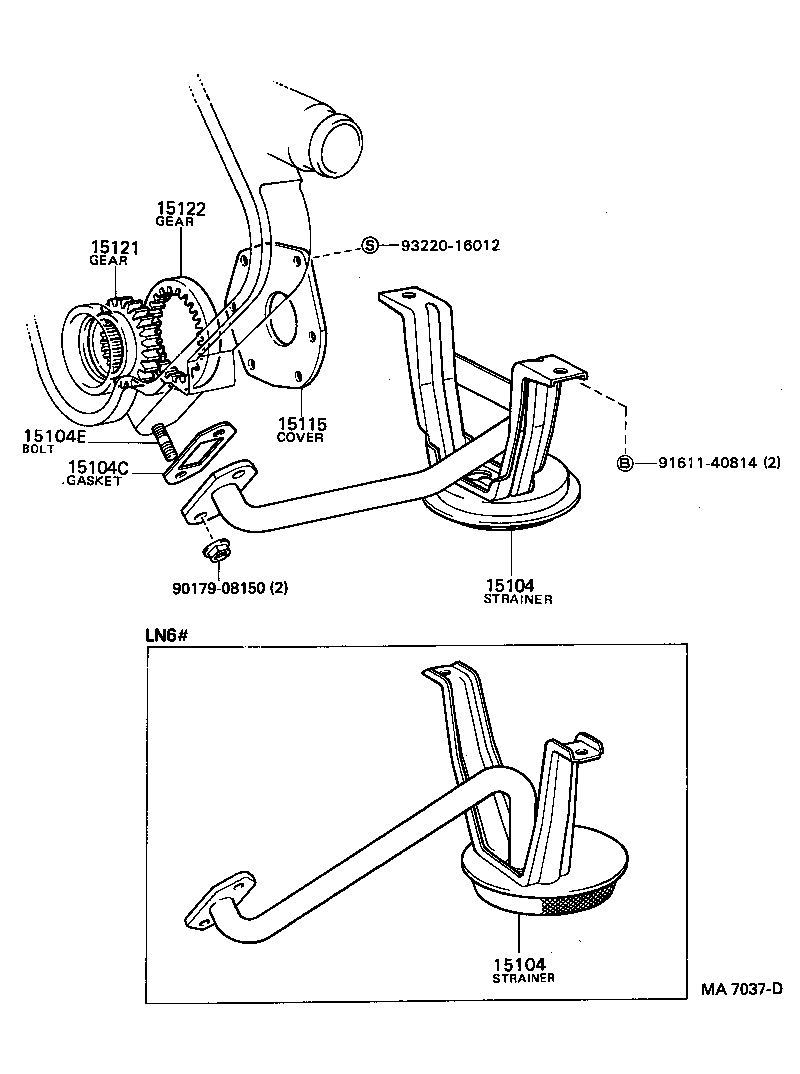

Click highlighted areas on diagram

diagram 15104 15104 15104C 15104E 15115 15121 15122 9017908150 9161140814 9322016012
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-71020

3Y,4Y,4YE..YN6#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-71020

3Y,4Y,4YE..YN6#

 1
15104C - GASKET(FOR OIL STRAINER)
15149-54011

L,2L..LN5#,6#

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
92122-40816

L,2L,3L..LN5#,6#

 2
15115 - COVER, OIL PUMP
15115-71015

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
15115-54011

L,2L..LN5#,6#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-54010

L,2L..LN5#,6#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-54010

L,2L..LN5#,6#

 1
Common parts
90179-08150
91611-40814
93220-16012
