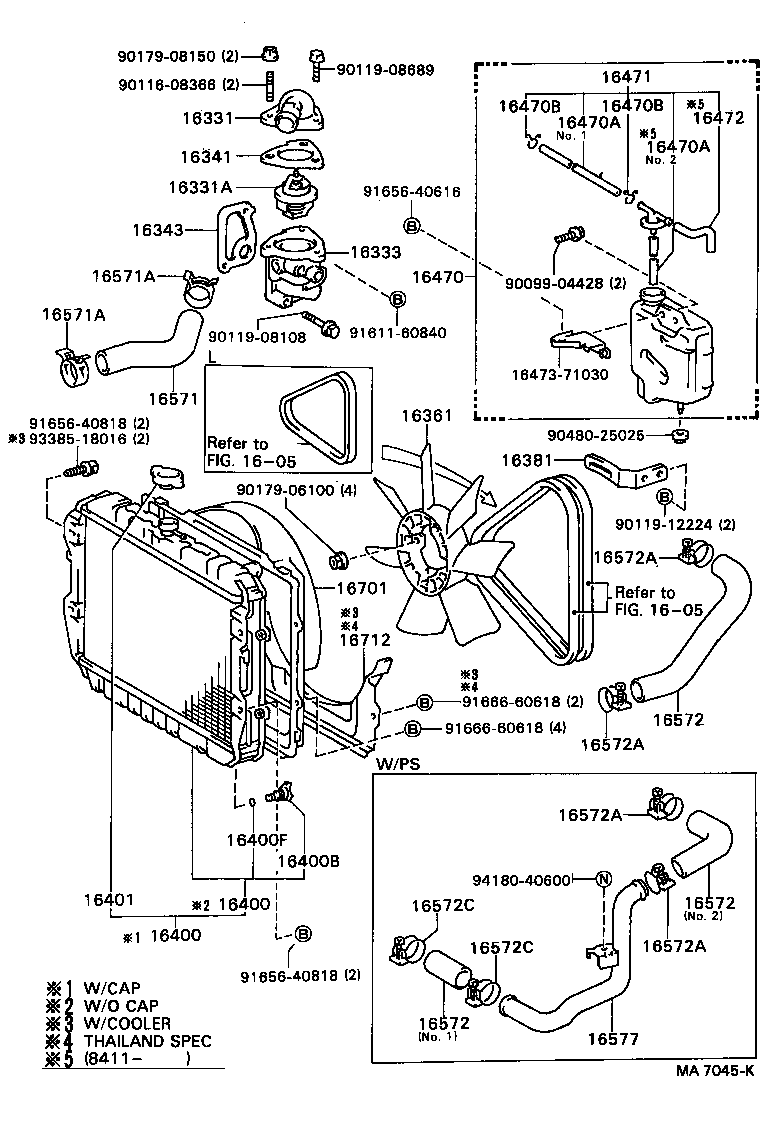

YN67R-MRPQ (1985)
Toyota Hilux
(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54030 |
L,2L..LN5#,6# |
1 | ||
| 16331-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03062 |
L,2L..LN5#,6# *WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
L,2L..LN5#,6# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54011 |
L,2L..LN5#,6# |
1 | ||
| 16341-71010 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54011 |
L,2L..LN5#,6# |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
1YC,2Y,3Y,4Y..YN55,56,57,60,63,65,67..ARL,EUR |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 16381-54011 |
L,2L..LN5#,6# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-73200 |
4Y..YN62,63,67..ARL,GEN,ME |
1 | ||
| 16400-73200 |
4Y..YN6#..ARL,GEN,ME |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-73200 |
4Y..YN62,63,67..ARL,GEN,ME |
1 | ||
| 16400-73200 |
4Y..YN6#..ARL,GEN,ME |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 90910-09054 |
L,2L,3L..LN5#,6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
L,2L,3L..LN5#,6# |
1 | ||
| 96711-19007 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
L,2L..LN5#,6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54060 |
L,2L..LN5#,6# |
1 | ||
| 16470-71030 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12049 |
L,2L..LN5#,6# NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12049 |
L,2L..LN5#,6# NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L,3L..LN5#,6# |
2 | ||
| 90467-11085 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L,3L..LN5#,6# |
2 | ||
| 90467-11085 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 16405-54070 |
L,2L..LN5#,6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54130 |
L,2L..LN5#,6# |
1 | ||
| 16571-71030 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LN5#,6# |
2 | ||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LN5#,6# |
2 | ||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
L,2L..LN5#,6# RADIATOR SIDE |
1 | ||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# TYPE A |
2 | ||
| 96111-10500 |
L,2L..LN5#,6# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
L,2L..LN5#,6# RADIATOR SIDE |
1 | ||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# TYPE A |
2 | ||
| 96111-10500 |
L,2L..LN5#,6# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
L,2L..LN5#,6# RADIATOR SIDE |
1 | ||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# TYPE A |
2 | ||
| 96111-10500 |
L,2L..LN5#,6# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
L,2L..LN5#,6# RADIATOR SIDE |
1 | ||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# TYPE A |
2 | ||
| 96111-10500 |
L,2L..LN5#,6# WATER PUMP SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-71030 |
4Y..YN63,67..ARL |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54050 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67..ARL,GEN,ME,SA;1Y#,2Y,3Y,4YC,4YE..YN5#,60,63,65..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA) W/COOLER OR THAILAND SPEC |
1 | ||
| Common parts | ||||
| 16473-71030 | ||||
| 90099-04428 | ||||
| 90116-08366 | ||||
| 90119-08108 | ||||
| 90119-08689 | ||||
| 90119-12224 | ||||
| 90179-06100 | ||||
| 90179-08150 | ||||
| 90480-25025 | ||||
| 91611-60840 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 91666-60618 | ||||
| 93385-18016 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1605 | ||||
