YN67L-MR (1985)
Toyota Hilux
Production
Aug 1985
-
Jan 1992
Engine
4Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508-8608)1Y,3Y,4Y..YN50,52,55,57,60,62,63,67

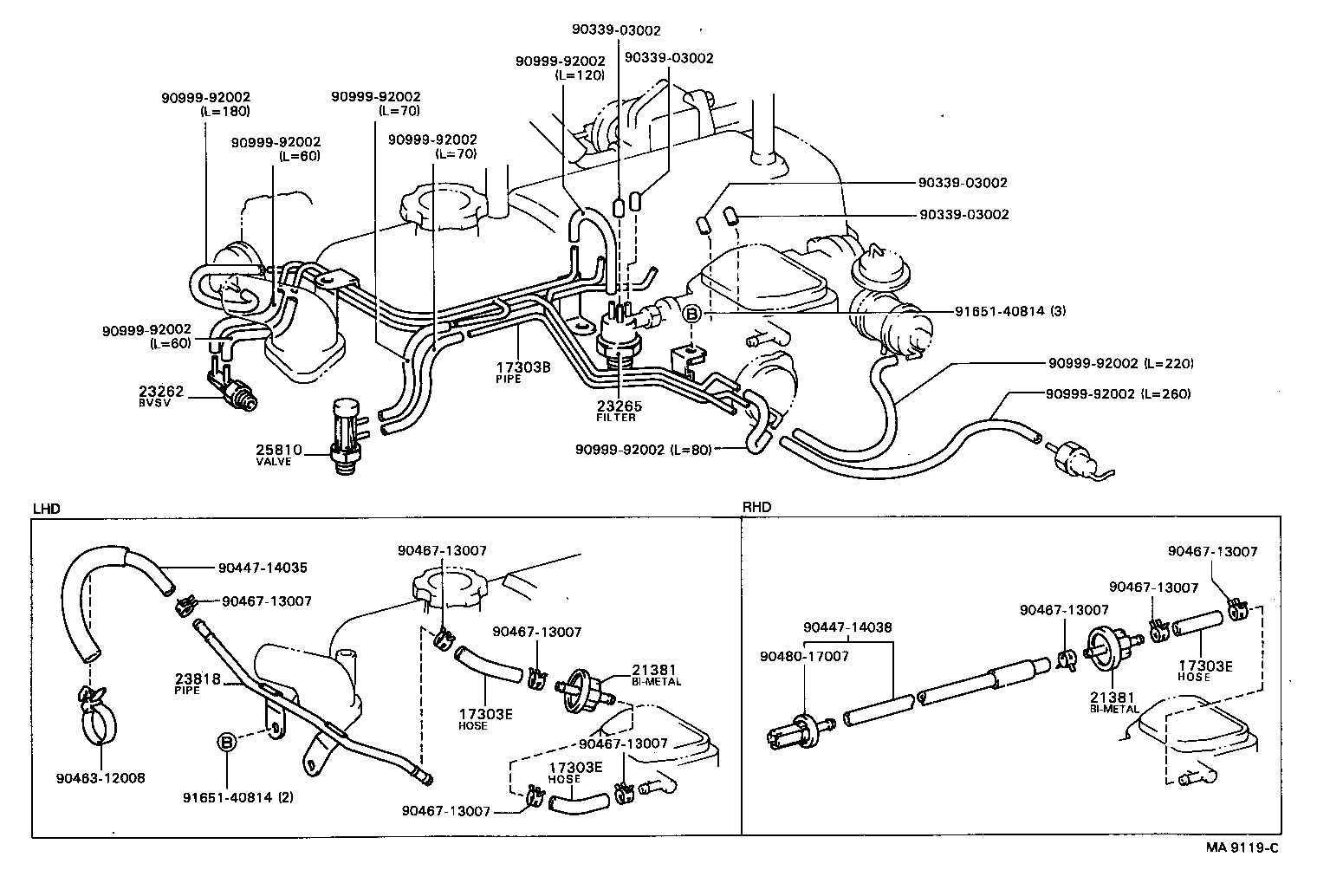

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14079 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71050 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
3Y,4Y..YN52,57,58,6#..EUR,GEN,ME,SA |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-71010 |
1Y,3Y,4Y..YN50,52,55,57,60,62,63,67..LHD |
1 | ||
| 23818-71011 |
1Y,2Y,3Y,4Y..YN50,52,55,56,57,6#..LHD |
1 | ||
| Common parts | ||||
| 90445-14109 | ||||
| 90447-14035 | ||||
| 90447-14038 | ||||
| 90463-12008 | ||||
| 90464-00080 | ||||
| 90467-13007 | ||||
| 90480-17007 | ||||
| 90929-01060 | ||||
| 90964-00065 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
(8608-8911)4Y..YN58,67..GEN,SA ; (8911- )4Y..YN67..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14079 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14079 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14079 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71050 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71050 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
3Y,4Y..YN52,57,58,6#..EUR,GEN,ME,SA |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-71010 |
1Y,3Y,4Y..YN50,52,55,57,60,62,63,67..LHD |
1 | ||
| 23818-71011 |
1Y,2Y,3Y,4Y..YN50,52,55,56,57,6#..LHD |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90447-14035 | ||||
| 90447-14038 | ||||
| 90463-12008 | ||||
| 90467-13007 | ||||
| 90480-17007 | ||||
| 90999-92002 | ||||
| 91651-40814 | ||||
(9708-0108)2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA ; (9808-0009)5L..LN157 ;
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06204 | ||||
| 90413-04008 | ||||
| 90445-08331 | ||||
| 90447-04027 | ||||
| 90447-04056 | ||||
| 90464-00369 | ||||
| 90929-01366 | ||||
| 90929-01386 | ||||
| 90999-92002 | ||||
| 91611-B0616 | ||||
| 91621-40812 | ||||
| 91622-61014 | ||||
| 95413-40033 | ||||
| 95413-49933 | ||||
| 95413-49936 | ||||
| Linked diagrams | ||||
| 2606 | ||||
| 4301 | ||||
