YN67L-MR (1985)

Toyota Hilux

Production Aug 1985 - Jan 1992
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-9508)L,2L

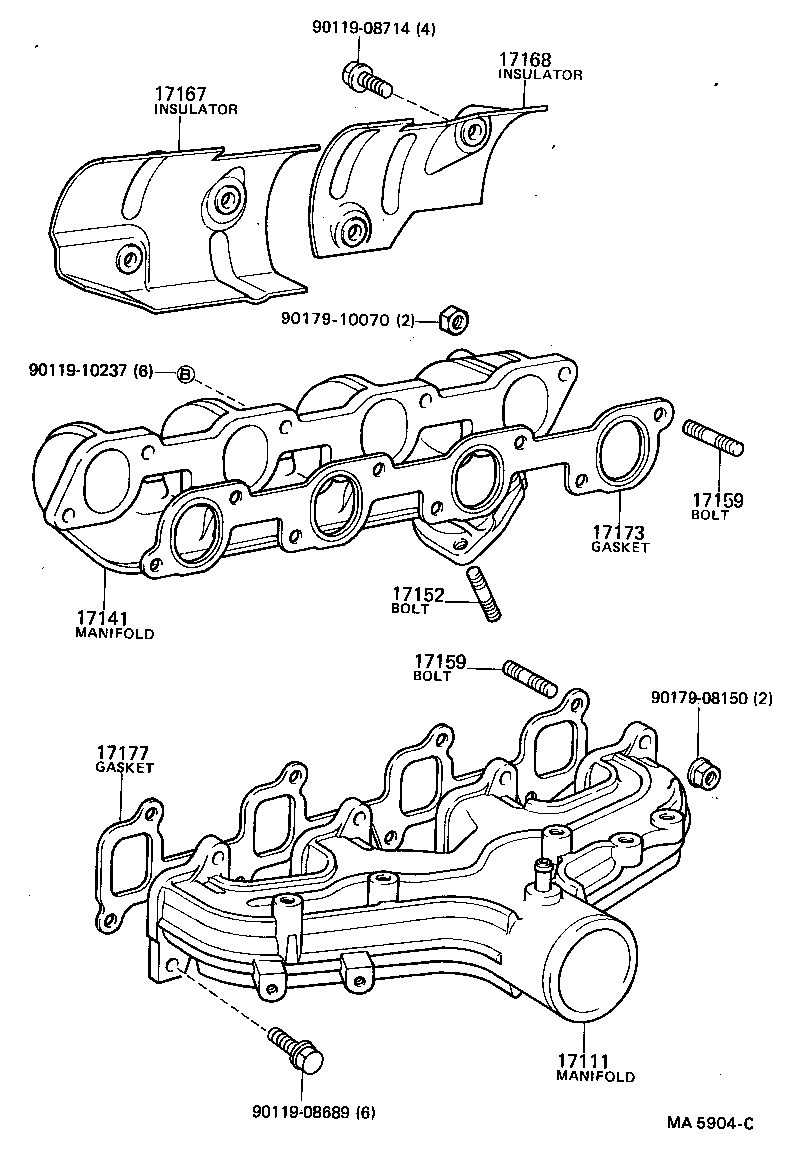

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17168 17173 17177 9011908689 9011908714 9011910237 9017908150 9017910070
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-54040

2L..LN56..LHD..EUR..CBU;L,2L..LN5#,6#..ARL,GEN,SA

 1
17111-71020

4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y..YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

 1
17141 - MANIFOLD, EXHAUST
17141-71020

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

1Y#,2Y#,3Y,4Y#..YN5#,6#

 3
90116-10088

L,2L,3L..LN5#,6#

 3
90116-10148

1Y,2Y,3Y,4Y..YN5#,67

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08053

L,2L..LN5#,6#

INTAKE MANIFOLD SIDE

 2
90116-10063

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 8
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08053

L,2L..LN5#,6#

INTAKE MANIFOLD SIDE

 2
90116-10063

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-71020

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F

 1
17167-54011

L,2L..LN5#,6#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
12521-72010

1Y,3Y,4Y..YN50,55,57,62,65,67..GEN

W/O HOT AIR INTAKE

 1
17168-54011

L,2L..LN5#,6#

 1
12521-72010

1Y#,3Y,4Y..YN50,52,55,57,6#..ARL,GEN,ME,SA

CYCLONE TYPE

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-54011

L,2L..LN5#,6#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-54011

L,2L..LN5#,6#

 1
Common parts
90119-08689
90119-08714
90119-10237
90179-08150
90179-10070
