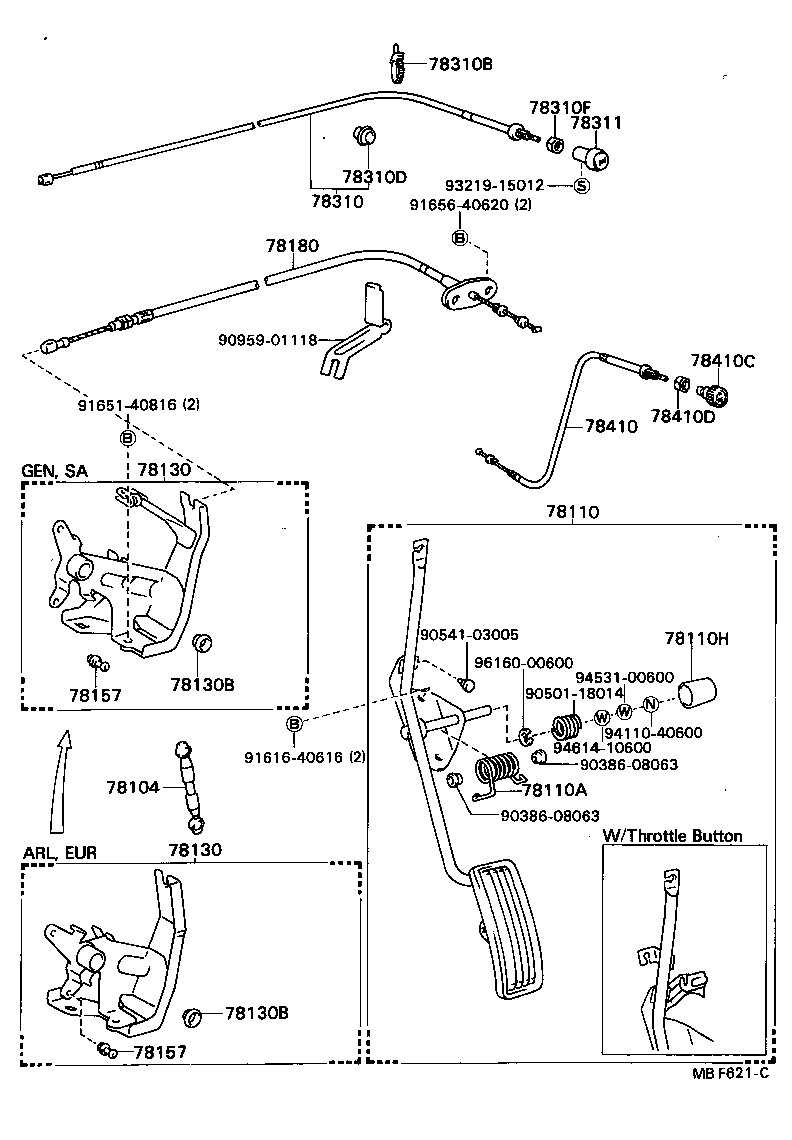

YN65R-MRW (1983)
Toyota Hilux
(8308-8408)YN6#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-89105 |
LN50,51,55,56,60,61,65 |
1 | ||
| 78104-89106 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89119 |
YN6#..RHD..(ARL,EUR,GEN) |
1 | ||
| 78120-89113 |
LN5#,6#..RHD |
1 | ||
| 78120-89112 |
YN6#..RHD..(ARL,EUR,GEN) |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-14066 |
YN50,55,56,57,60,63,65,67..RHD |
1 | ||
| 90508-23075 |
LN50,51,55,56,60,61,65..RHD |
1 | ||
| 78110H - COVER (FOR ACCELERATOR PEDAL ROD) | ||||
| 78116-22010 |
LN6#,YN6# |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-89109 |
YN55,56,57,60,63,65,67..ARL,EUR |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-89109 |
YN55,56,57,60,63,65,67..ARL,EUR |
1 | ||
| 78130B - BUSH, ACCELERATOR BELLCRANK | ||||
| 90386-08003 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78130B - BUSH, ACCELERATOR BELLCRANK | ||||
| 90386-08003 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78157 - BALL, ACCELERATOR JOINT | ||||
| 78157-10010 |
LN50,51,55,56,60,61,65 |
1 | ||
| 78157-10010 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78157 - BALL, ACCELERATOR JOINT | ||||
| 78157-10010 |
LN50,51,55,56,60,61,65 |
1 | ||
| 78157-10010 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-89128 |
YN50,51,55,56,57,58,60,63,65,67..RHD..CBR |
1 | ||
| 78180-89129 |
LN50,51,55,56,60,61,65..RHD |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78401-89106 |
LN50,51,55,56,60,61,65..RHD |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78411-89102 |
LN5#,6# |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90170-11006 |
LN50,51,55,56,60,61,65 |
1 | ||
| Common parts | ||||
| 90386-08063 | ||||
| 90501-18014 | ||||
| 90541-03005 | ||||
| 90959-01118 | ||||
| 91616-40616 | ||||
| 91651-40816 | ||||
| 91656-40620 | ||||
| 93219-15012 | ||||
| 94110-40600 | ||||
| 94531-00600 | ||||
| 94614-10600 | ||||
| 96160-00600 | ||||
(8408- )YN60,63,65,67..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-89105 |
LN50,51,55,56,60,61,65 |
1 | ||
| 78104-89106 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89119 |
YN6#..RHD..(ARL,EUR,GEN) |
1 | ||
| 78120-89113 |
LN5#,6#..RHD |
1 | ||
| 78120-89112 |
YN6#..RHD..(ARL,EUR,GEN) |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-14066 |
YN50,55,56,57,60,63,65,67..RHD |
1 | ||
| 90508-23075 |
LN50,51,55,56,60,61,65..RHD |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-89109 |
YN55,56,57,60,63,65,67..ARL,EUR |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-89109 |
YN55,56,57,60,63,65,67..ARL,EUR |
1 | ||
| 78130B - BUSH, ACCELERATOR BELLCRANK | ||||
| 90386-08003 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78130B - BUSH, ACCELERATOR BELLCRANK | ||||
| 90386-08003 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78157 - BALL, ACCELERATOR JOINT | ||||
| 78157-10010 |
LN50,51,55,56,60,61,65 |
1 | ||
| 78157-10010 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78157 - BALL, ACCELERATOR JOINT | ||||
| 78157-10010 |
LN50,51,55,56,60,61,65 |
1 | ||
| 78157-10010 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-89128 |
YN50,51,55,56,57,58,60,63,65,67..RHD..CBR |
1 | ||
| 78180-89129 |
LN50,51,55,56,60,61,65..RHD |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78401-89106 |
LN50,51,55,56,60,61,65..RHD |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78411-89102 |
LN5#,6# |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90170-11006 |
LN50,51,55,56,60,61,65 |
1 | ||
| Common parts | ||||
| 90201-07008 | ||||
| 90386-08063 | ||||
| 90464-00299 | ||||
| 90464-00472 | ||||
| 90541-03005 | ||||
| 90959-01118 | ||||
| 90959-01277 | ||||
| 91611-60814 | ||||
| 91616-40616 | ||||
| 91651-40816 | ||||
| 91656-40620 | ||||
| 93219-15012 | ||||
