YN65R-MRW (1983)

Toyota Hilux

Production Aug 1983 - Aug 1986
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

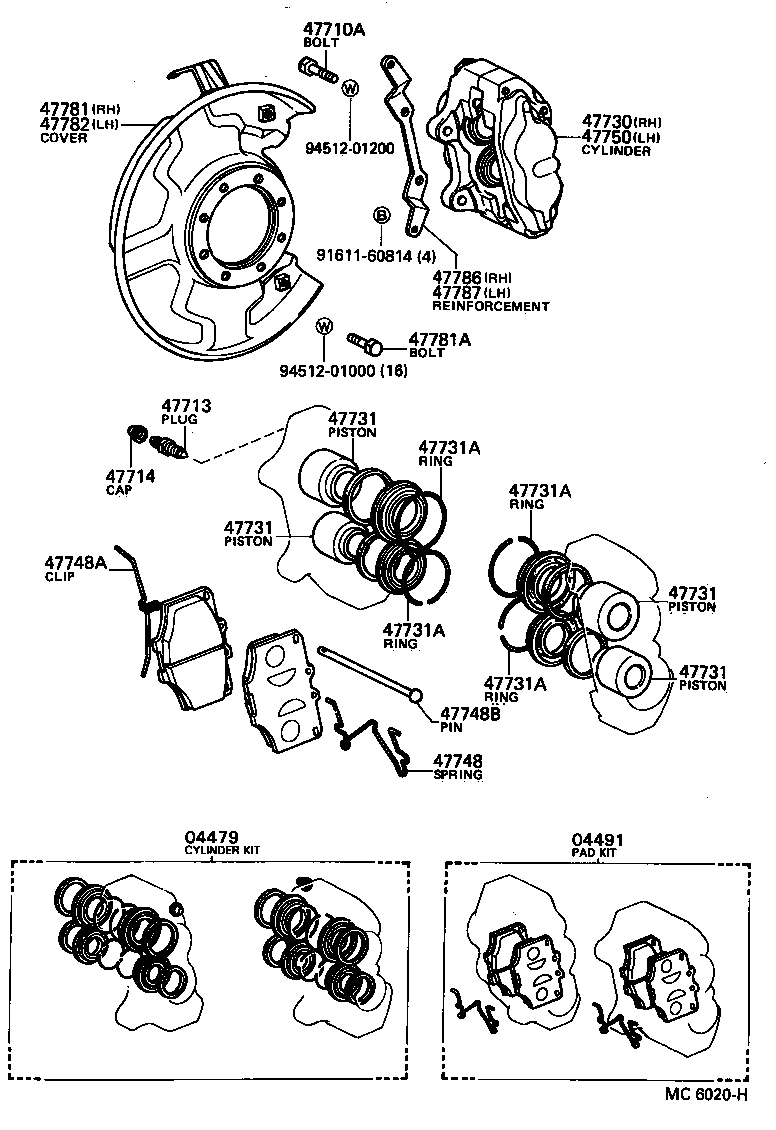

ILLUST NO. 1 OF 2(8308- )LN60,65,67,RN67,YN60,62,65,67

Click highlighted areas on diagram

diagram 04479 04491 47710A 47713 47714 47730 47731 47731 47731 47731 47731A 47731A 47731A 47731A 47748 47748A 47748B 47750 47781 47781A 47782 47786 47787 9161160814 9451201000 9451201200
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-30030

LN60,61,65,RN6#,YN6#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-35070

LN65,YN65,67..EUR,SA

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12491

LN60,65,YN60,62,65,67

*12-1.25PX42-24

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20030

LN60,61,65,RN6#,YN6#

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

LN5#,6#,RN5#,6#,YN5#,6#

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-35010

LN6#,RN67,YN6#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN60,61,65,RN6#,YN6#

OD=42.82

 4
47732-30010

LN60,61,65,RN6#,YN6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN60,61,65,RN6#,YN6#

OD=42.82

 4
47732-30010

LN60,61,65,RN6#,YN6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN60,61,65,RN6#,YN6#

OD=42.82

 4
47732-30010

LN60,61,65,RN6#,YN6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN60,61,65,RN6#,YN6#

OD=42.82

 4
47732-30010

LN60,61,65,RN6#,YN6#

OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN60,61,65,RN6#,YN6#

PISTON OD=42.82

 4
90522-40043

LN6#,RN6#,YN6#

PISTON OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN60,61,65,RN6#,YN6#

PISTON OD=42.82

 4
90522-40043

LN6#,RN6#,YN6#

PISTON OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN60,61,65,RN6#,YN6#

PISTON OD=42.82

 4
90522-40043

LN6#,RN6#,YN6#

PISTON OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN60,61,65,RN6#,YN6#

PISTON OD=42.82

 4
90522-40043

LN6#,RN6#,YN6#

PISTON OD=33.93

 4
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-30013

LN6#,RN67,YN6#

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-12003

LN60,61,65,RN6#,YN6#

 2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06006

LN6#,RN67,YN6#

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-35010

LN6#,RN67,YN6#

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-35020

LN6#,RN67,YN6#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
91112-71028

LN6#,RN67,YN6#

 4
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-35020

LN6#,RN67,YN6#

 1
47786 - REINFORCEMENT, DUST COVER, RH
47786-60020

LN6#,RN67,YN6#

 1
47787 - REINFORCEMENT, DUST COVER, LH
47787-60020

LN6#,RN67,YN6#

 1
Common parts
91611-60814
94512-01000
94512-01200

ILLUST NO. 1 OF 2(8308- )YN58..TW ; (8308- )YN58..RCB ; (8308- )YN57..DLX,STD ; (8308- )

Click highlighted areas on diagram

diagram 04479 04491 47710A 47713 47714 47716 47716 47717 47717 47721 47721A 47721A 47721B 47721B 47722 47730 47731 47731A 47743A 47744 47745 47750 47769 47771 47775 47775 47775 47775 47779 47781 47781A 47781C 47782 9020112019 9161160814 9451201200 9538103020
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-30030

LN60,61,65,RN6#,YN6#

 1
04479-30030

LN60,61,65,RN6#,YN6#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-35070

LN65,YN65,67..EUR,SA

 1
04491-35070

LN65,YN65,67..EUR,SA

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12491

LN60,65,YN60,62,65,67

*12-1.25PX42-24

 4
90101-12491

LN60,65,YN60,62,65,67

*12-1.25PX42-24

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20030

LN60,61,65,RN6#,YN6#

 2
47547-20030

LN60,61,65,RN6#,YN6#

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

LN5#,6#,RN5#,6#,YN5#,6#

 2
31478-30010

LN5#,6#,RN5#,6#,YN5#,6#

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-35010

LN6#,RN67,YN6#

 1
47730-35010

LN6#,RN67,YN6#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN60,61,65,RN6#,YN6#

OD=42.82

 4
47731-30020

LN60,61,65,RN6#,YN6#

OD=42.82

 4
47732-30010

LN60,61,65,RN6#,YN6#

OD=33.93

 4
47732-30010

LN60,61,65,RN6#,YN6#

OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN60,61,65,RN6#,YN6#

PISTON OD=42.82

 4
90522-48044

LN60,61,65,RN6#,YN6#

PISTON OD=42.82

 4
90522-40043

LN6#,RN6#,YN6#

PISTON OD=33.93

 4
90522-40043

LN6#,RN6#,YN6#

PISTON OD=33.93

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-35010

LN6#,RN67,YN6#

 1
47750-35010

LN6#,RN67,YN6#

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-35020

LN6#,RN67,YN6#

 1
47703-35020

LN6#,RN67,YN6#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
91112-71028

LN6#,RN67,YN6#

 4
91112-71028

LN6#,RN67,YN6#

 4
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-35020

LN6#,RN67,YN6#

 1
47704-35020

LN6#,RN67,YN6#

 1
Common parts
90201-12019
91611-60814
94512-01200
95381-03020

ILLUST NO. 2 OF 2(8308- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-35210

LN65,YN65,67..EUR,SA

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-60060

LN65,YN65,67..EUR,SA

 1
